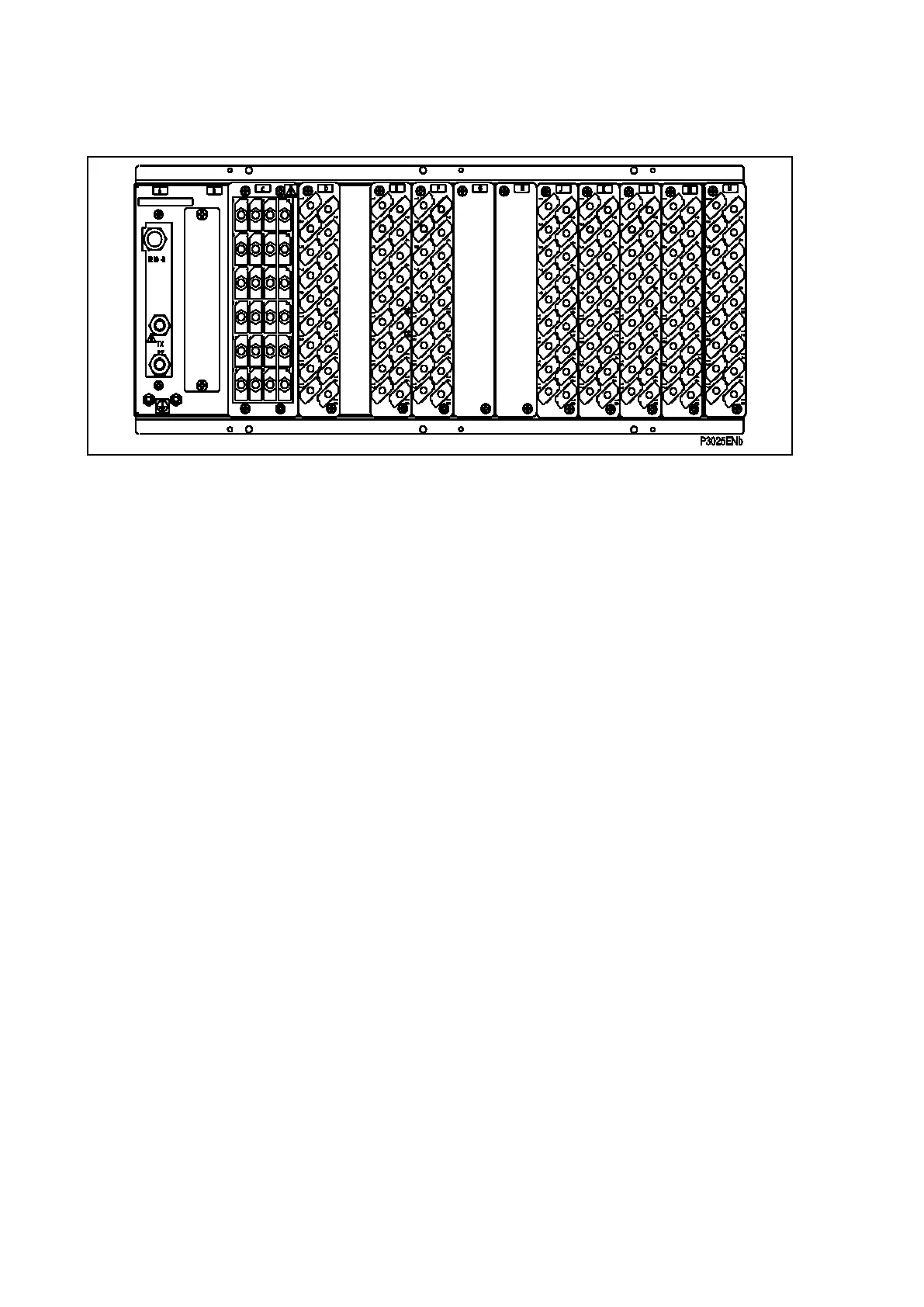

8.1 MiCOM P444 – Rear View
A – Optional board
(1)
H – Relay board
B – Optional board
(1)
J – Output relay/High Break board
(2)
C – Current and voltage input board K – Output relay/High Break board
(2)
D – Opto-input board L – Output relay/High Break board
(2)
E – Opto-input board M – Relay board
F – Opto Input board N – Power supply board
G – Relay board
(2)
(1)
Hardware options:
Refer to Introduction chapter section 3.1 Ordering Options
(2)
Models:
Refer to Introduction chapter section 3.1 Ordering Options
