MiCOM P40 Agile P442, P444

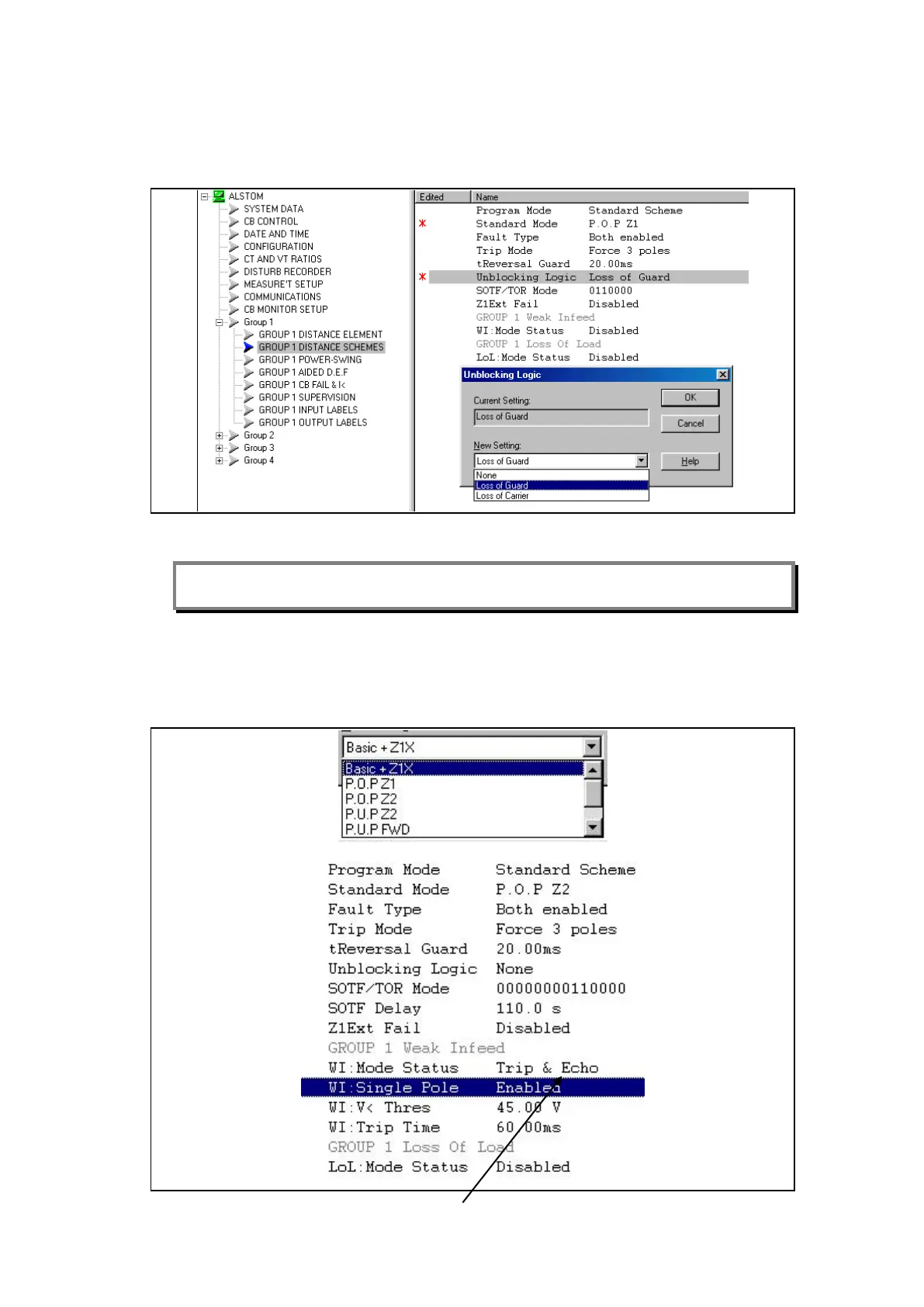

5.3.3 Loss of guard/loss of carrier test
Setting:
TEST: Follow the truth table (section P44x/EN AP)
Note: In case of channel-aided loss, the scheme Z1X (out fail) will be applied if selected in
MiCOM S1 Agile
5.3.4 Weak infeed mode test
From MiCOM S1 Agile
(If Permissive schemes are enabled in MiCOM S1 Agile: 4 possible choices):fig winf1
Figure 20: Winf2
