SCADA Communications
(SC) 12
-28 MiCOM P40 Agile
P442, P444
3.6.3 Extracting the disturbance data
The extraction of the disturbance record, as shown in the three figures above, is a two-stage
process that involves extracting the configuration file first and then the data file.

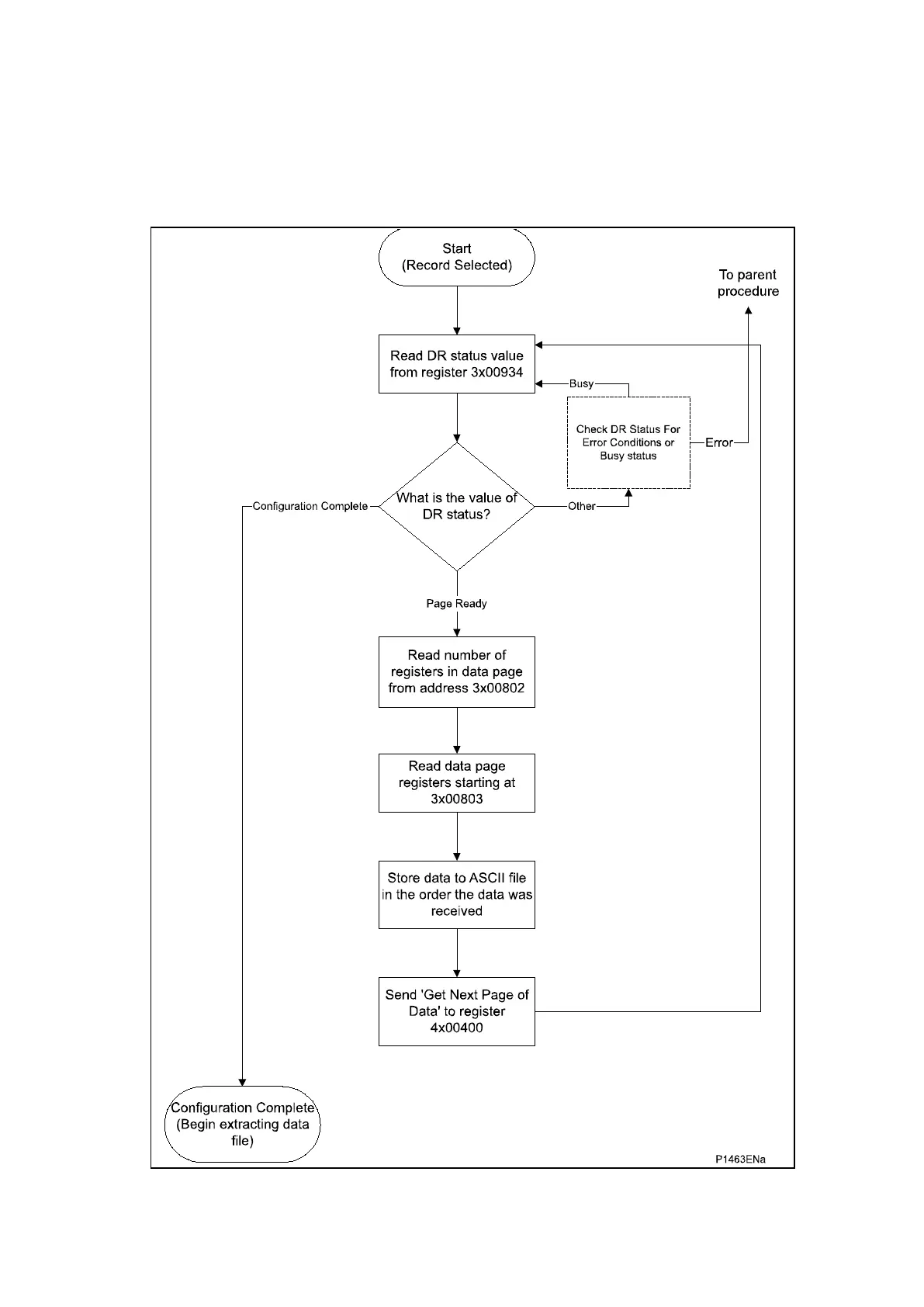

The following figure shows how the configuration file is extracted from the relay:
Figure 6: Extracting the comtrade configuration file
The following figure shows how the data file is extracted:
