Measurements and Recording
P44x/EN MR/Hb
MiCOM P40 Agile P442, P444
(MR) 7-
Event Type: Fault record
Monday 03 November 2010 15:33:11 GMT Logic Inputs 00000000
MiCOM
Model Number: P442
Address: 001 Column: 00 Row: 20
Event Type: Logic input changed state
Monday 03 November 2010 15:34:54 GMT Output Contacts 0010000
MiCOM
Model Number: P442
Address: 001 Column: 00 Row: 21
Event Type: relay output changed state

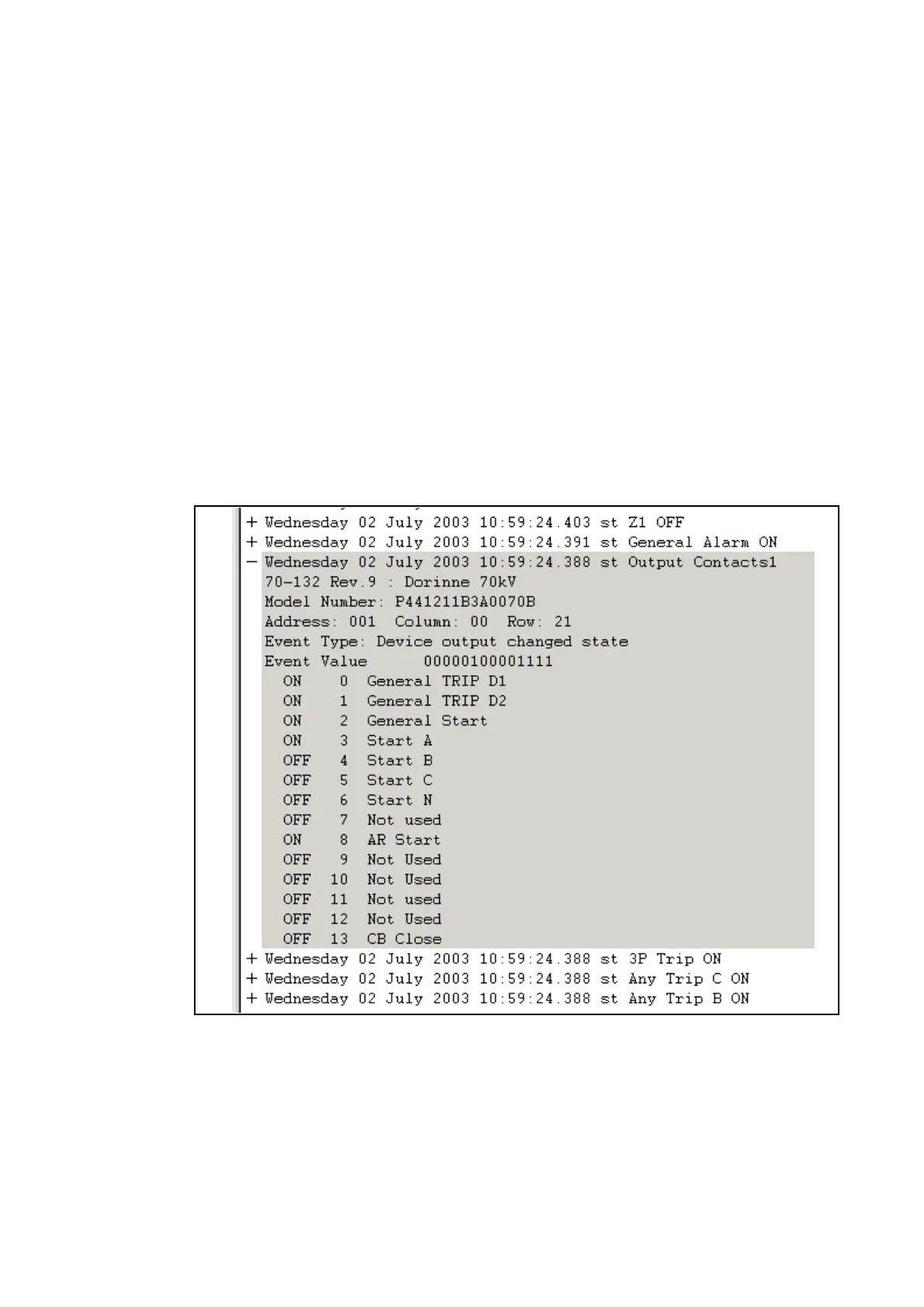

As can be seen, the first line gives the description and time stamp for the event, whilst the
additional information that is displayed below may be collapsed via the +/- symbol.
Figure 1
1.2.12 Event Filtering
It is possible to disable the reporting of events from all interfaces that supports setting
changes. The settings that control the various types of events are in the “Record Control”
column (see section P44x/EN ST)
