GE P444

P44x/EN CM/H
b6
Commissioning
(
CM) 9-32
MiCOM P40 Agile P442, P444
Test point
B:Bi M:mono
I,V phase shift
(I is behind V)
Tripping time
R1 B 0° T1
R1 M 0° T1
R2 B 0° T2
R2 M 0° T2
Rp B 0° Tp
Rp M 0° Tp
R3 B 0° T3
R3 M 0° T3
- R Lim = -R3 0° T4
Z1 B Arg Zd T1
Z1 M Arg (2Zd+Z0) T1
Z2 B Arg Zd T2
Z2 M Arg (2Zd+Z0) T2
Zp B Arg Zd Tp
Zp M Arg (2Zd+Z0) Tp
Z3 B Arg Zd T3
Z3 M Arg (2Zd+Z0) T3
Z4 B Arg Zd T4

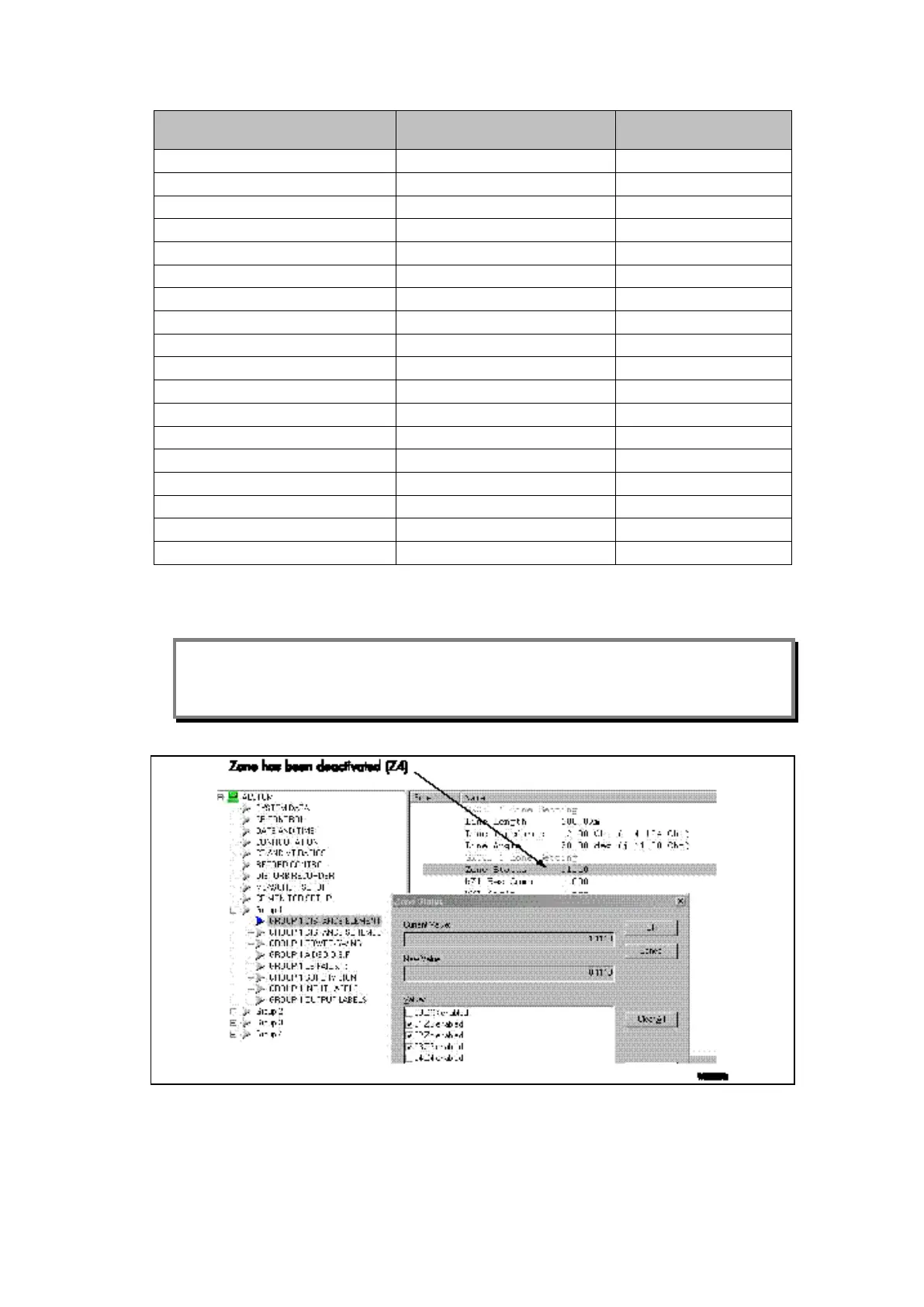

Table 12 - Parameters of zone to test (Zp can be reverse or forward / each zone is
enabled or disabled – Z is always enabled)
Note: R3 represents the starting limit on the R axis (detection sensitivity of resistive defaults
– The starting element for phase/earth can be superior to the phase/phase). If the
reverse zone has been disabled (Z4), there is still a no-trip zone (up to version A3.2 &
2.10) in the 4th quadrant below the R axis.
