Step1.Slide the locking ring on the smooth rods, thread the rods into the acrylic plate;
adjust the length so that the smooth rods fit snugly between the front and rear piece.
Step2. Screw up the rods and plate with M10 nut and M10 washer.

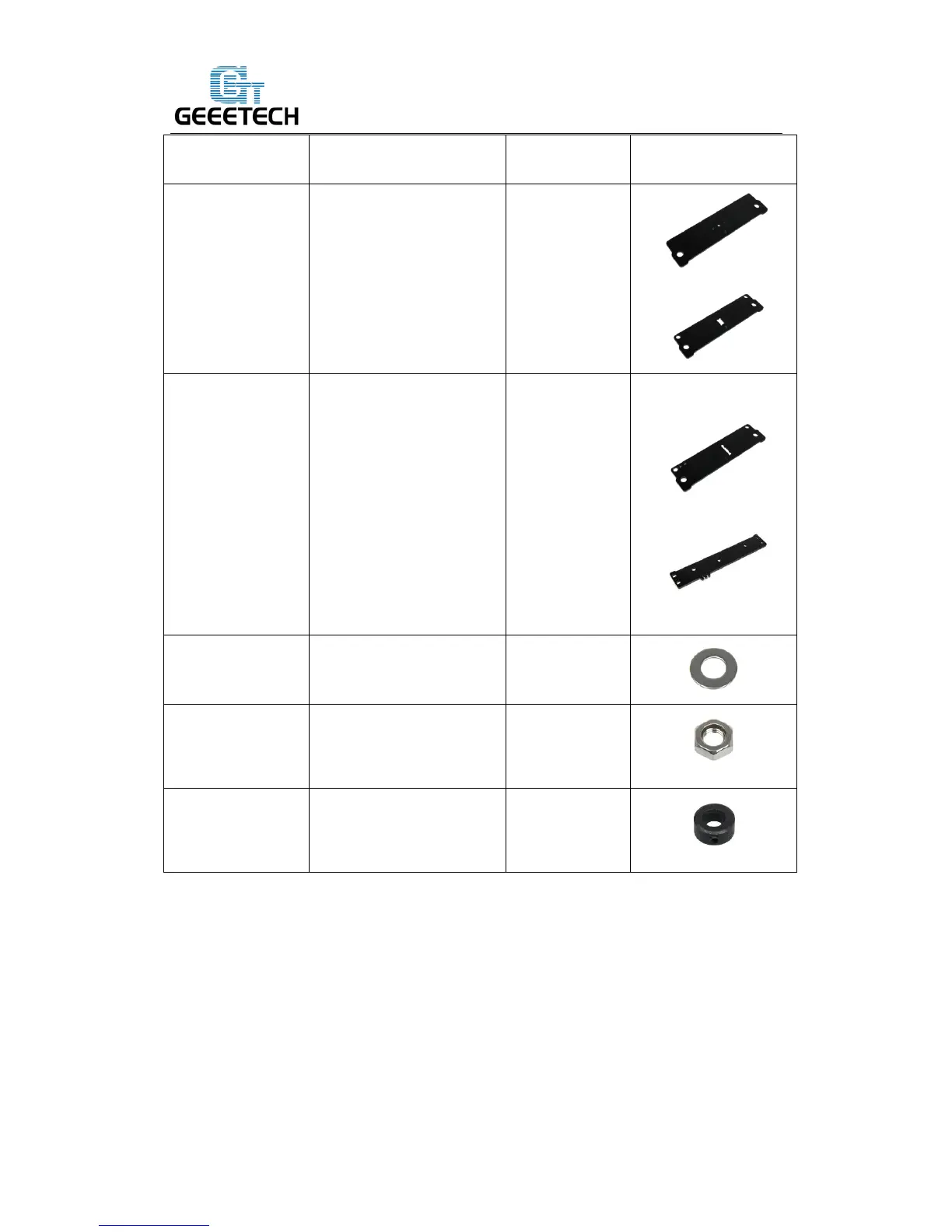

Pic
Part ID
Required number
Required parts
NO. A9,
A 10
2
Acrylic
plate( front)
NO. A 11, A
12
2
Acrylic
plate( rear)
NO.9
4
M10 washer
NO.13
4
M10 nut
NO.20
2
Screw locking
ring
