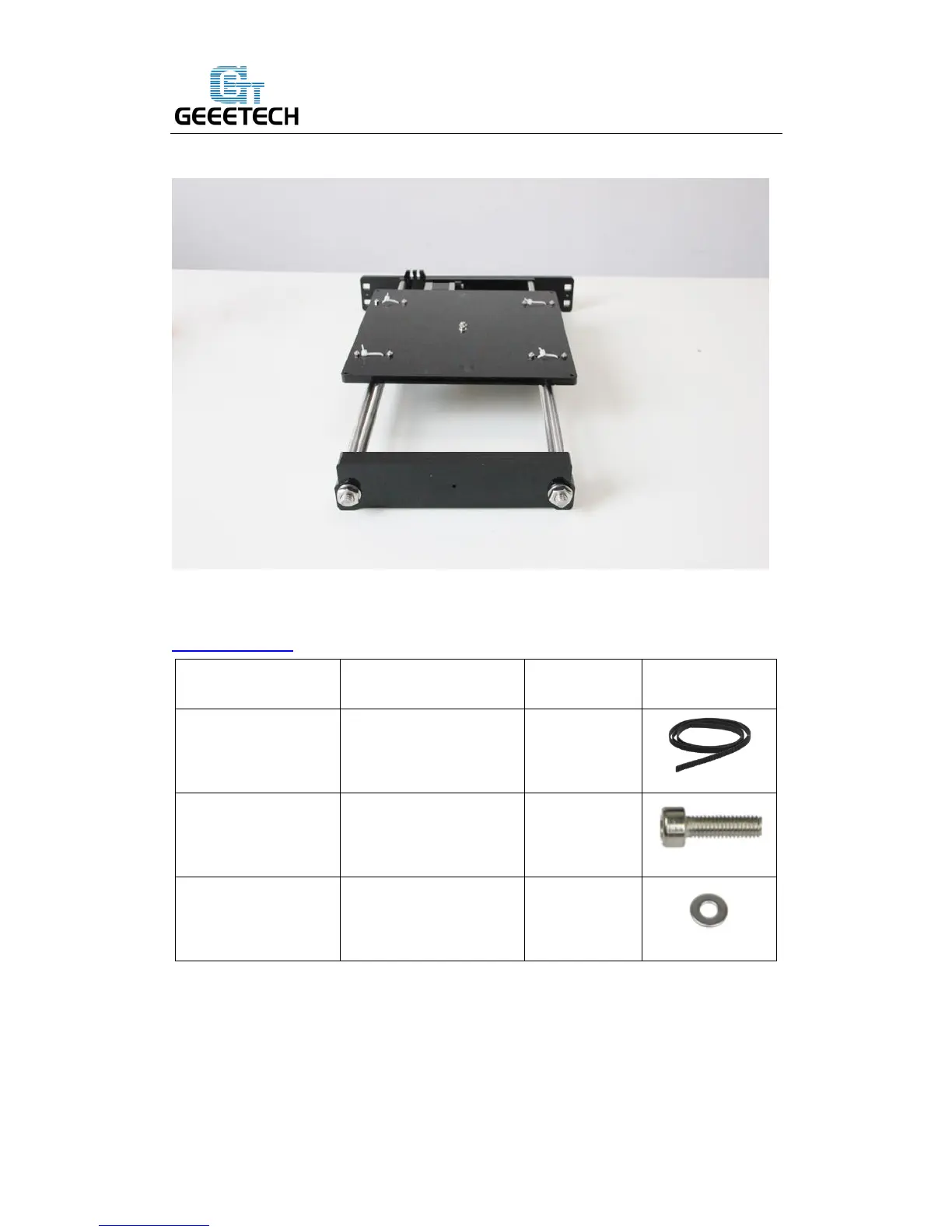

7 Mount the Y –axis belt
Watch the video
Pic
Part ID
Required number
Required parts
NO.39
1
Timing belt
NO.25
2
M3 x 10 screw
NO.7
2
M3 washer
Step1. Drill a hole on one end of the belt（the hole can be as the diameter of the M3
screw, leave enough margin ）
Step2. Fix the belt on one side of the belt -mount with a M3 x 10 screw and washer.
Step3. Thread the belt around the pulley on the motor and the Y idler.
