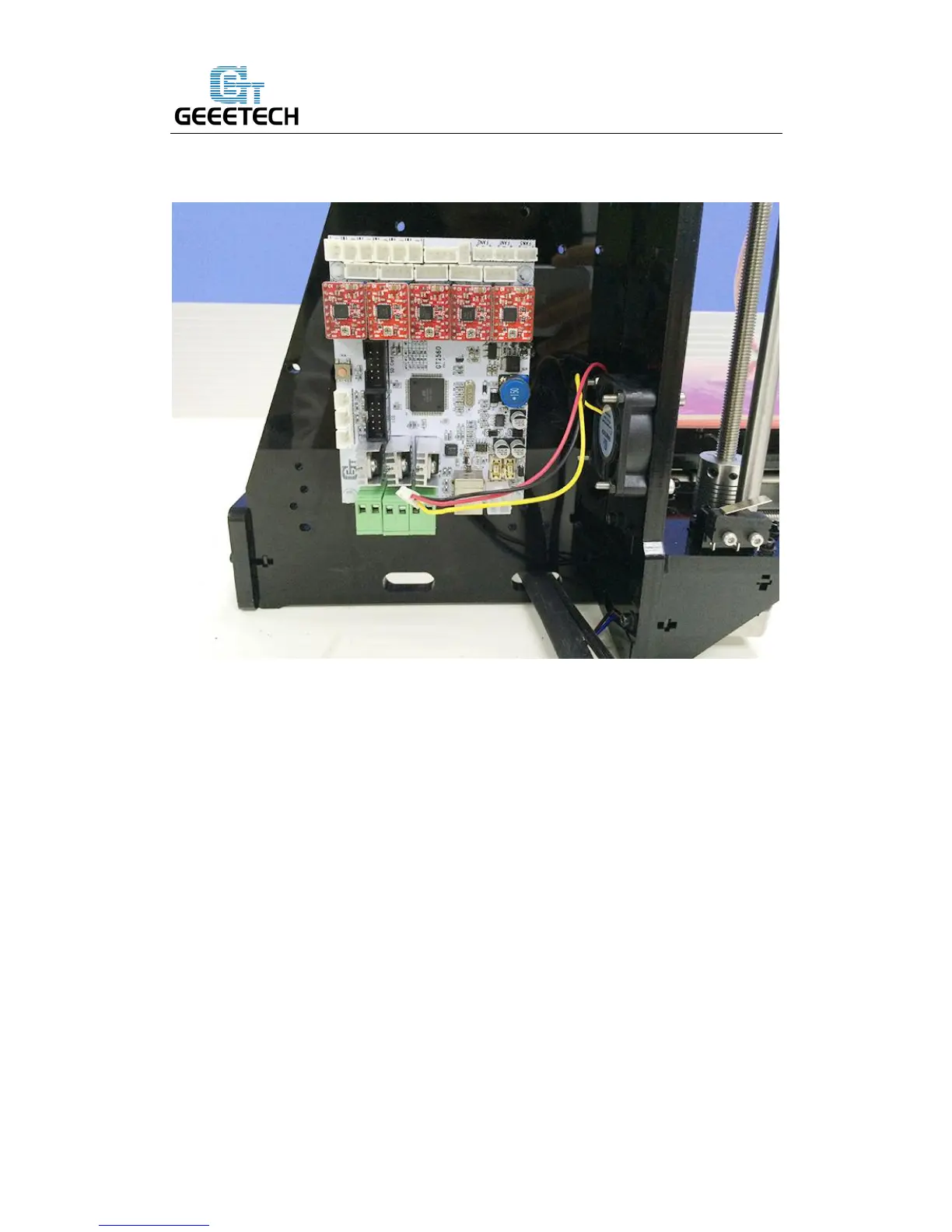

Note the direction of the board; the green connectors are downwards to get enough
heat dissipation from the fan.
28 Wiring
GT2560
Before you start wiring, please take a look at the wiring schematics.
