Geeetech Prusa I3 Pro C - Mount X-Axis Motor End

35
GEEETECH
15 Assemble the coupling
Watch the video
Pic
Part ID
Required number
Required parts
NO.43
2
Couplings

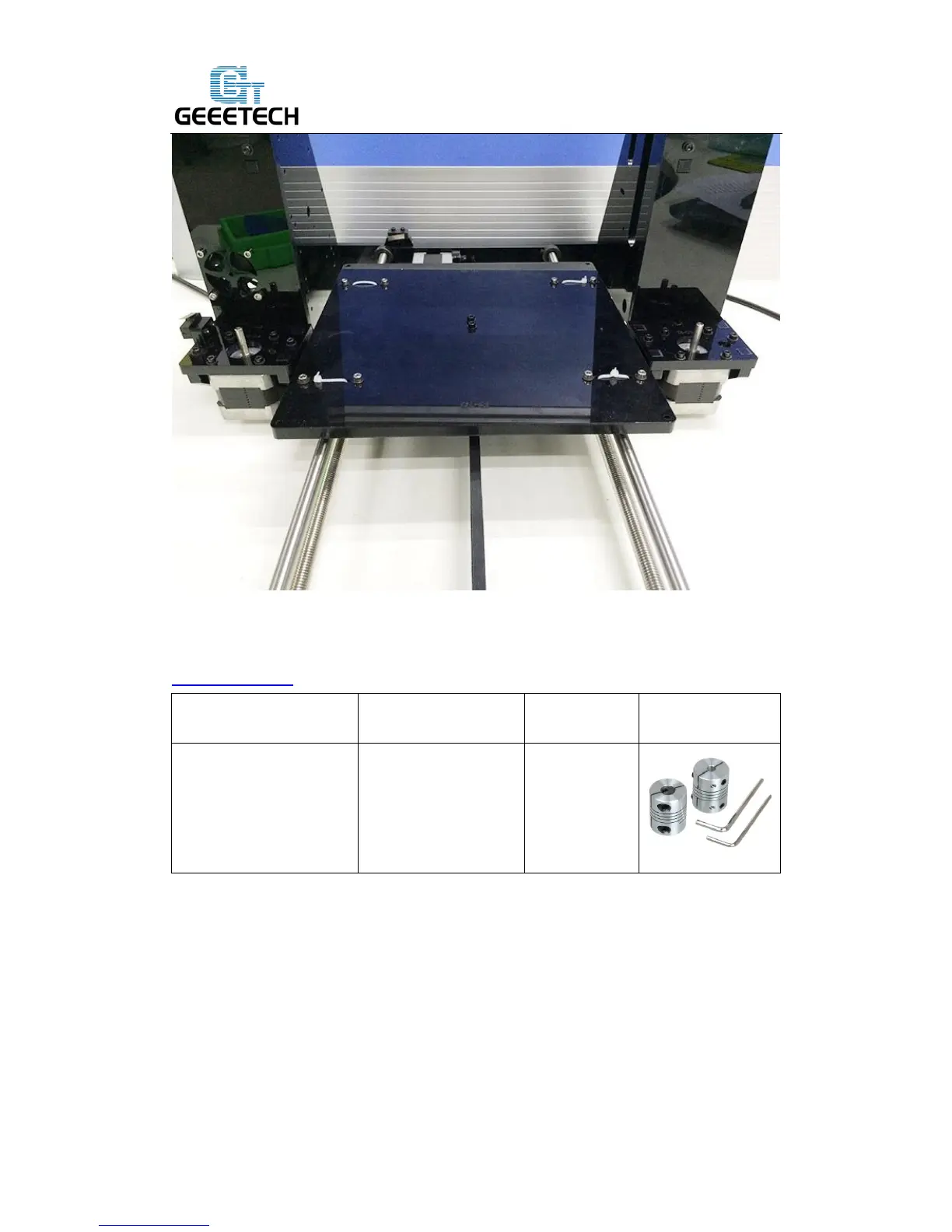

Step1. Fix the two couplings on both of the motor shaft.
Please note:
1. The opening of both end, one is 5mm, another is 8mm, connect the 5mm hole to the
motor shaft.
2. Screw the small bolt of the 5mm part on the upper part of the flat side of the
motor shaft tightly.
