47
GEEETECH

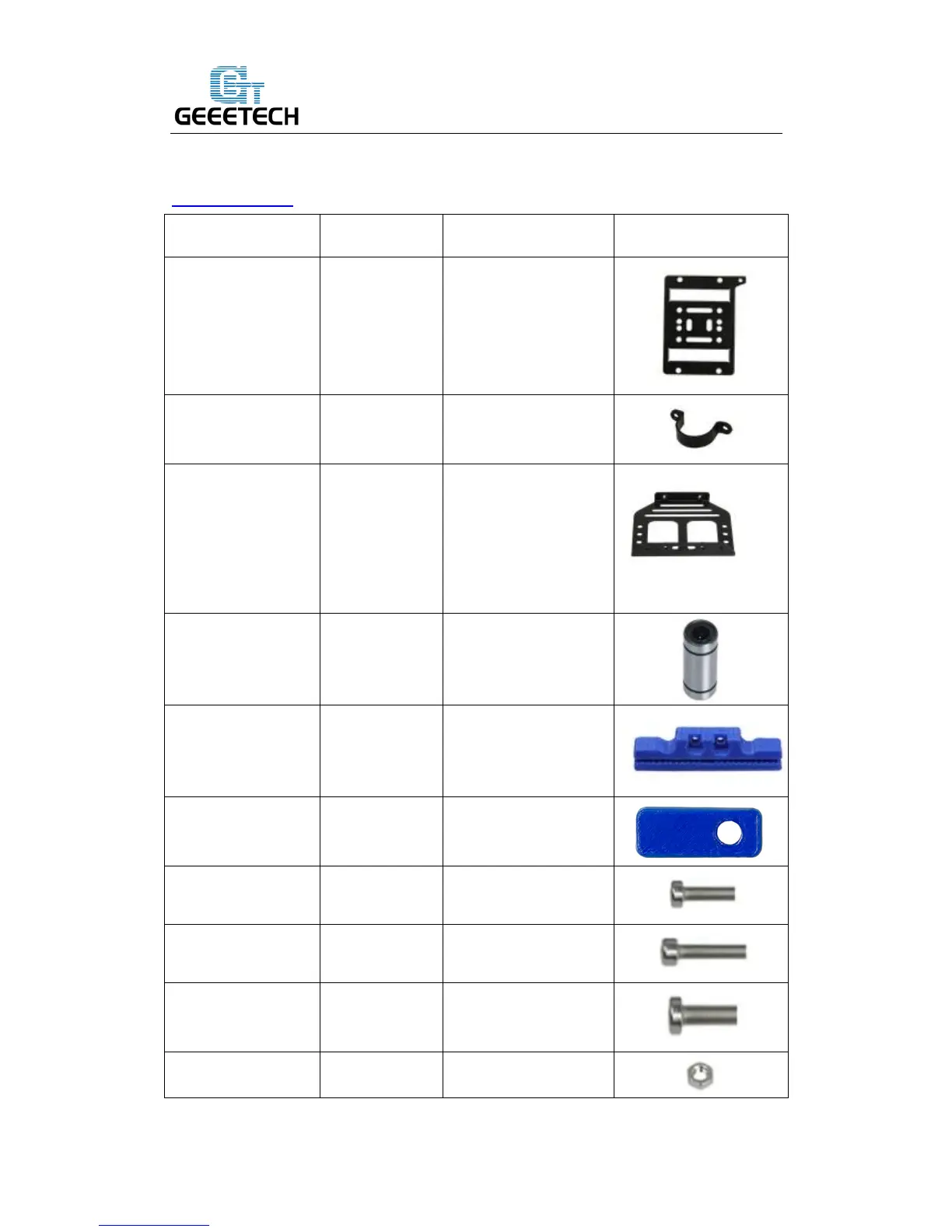

19 Assembly of the extruder carriage
Watch the video
Part name
Part ID
Required number
pic
X
Carriage
No.M3
1
Bearing Bracket
No.M4
4
Extruder holder
No.M5
1
Linear Bearing
LM8LUU
No.37
2
Belt bracket
No.51
1
Endstop trigger
No.51A
1
M3x6mm screw
No. 23
8
M3x12mm screw
No. 26
2
M4x6mm screw
No. 32
2
M3 nut
No.11
2
