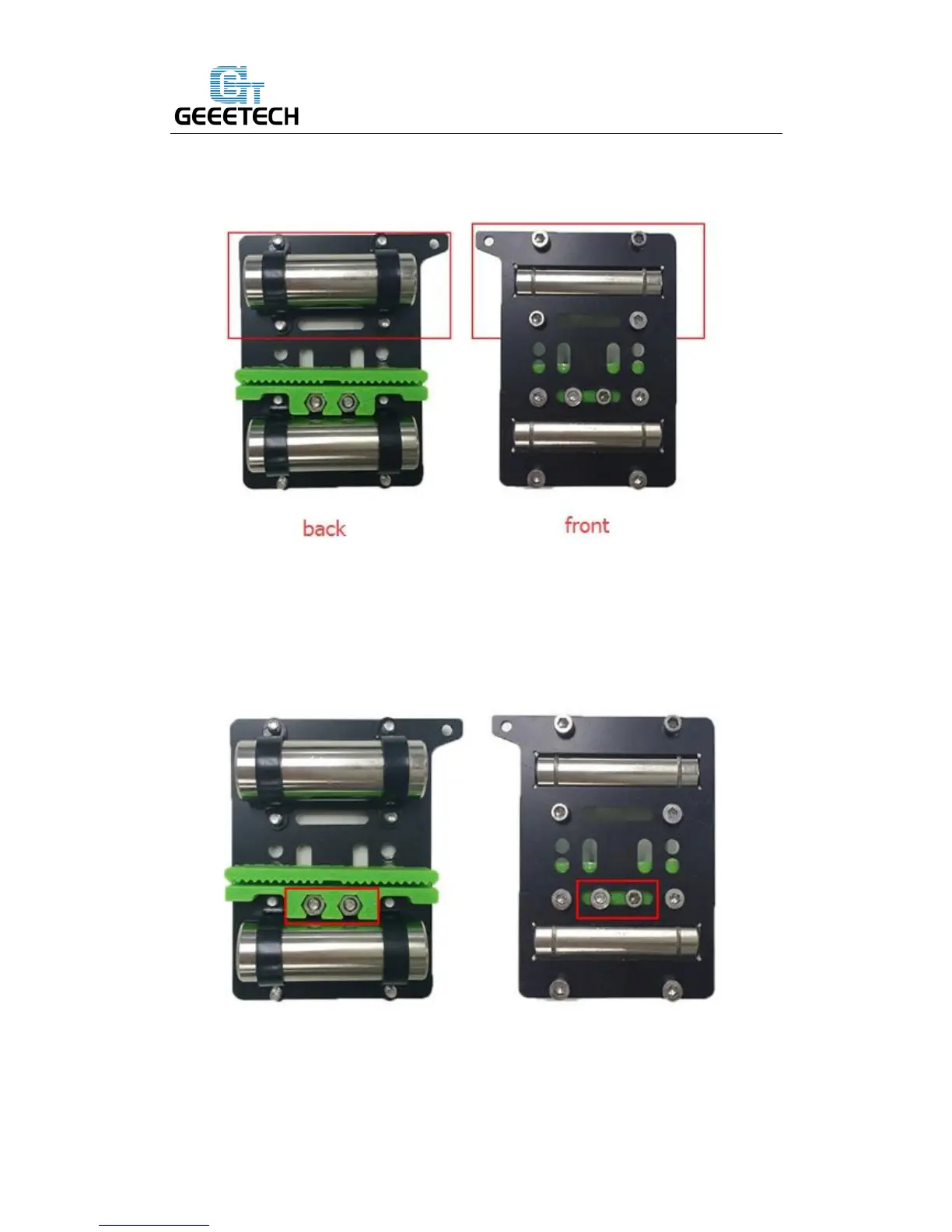

Step1. Fix the 4 Bearing Brackets on the back of the X Carriage loosely with
M3x6mm screws. Insert the linear bearing into the slot and screw the bracket tightly.
Please notice the front and back of the plate.
Step2. Fix the belt mount on the back of the carriage with 2 M3x 12mm screws and
M3 hex nuts.
Step3. Fix the extruder holder on the front side of the X carriage using M4x6mm
