Mount the X motor
Part name
Part ID
Required number
pic
M3 x 6 mm screw
No. 23
3
Stepper motor
No.62
1
Pulley
No.44
1
In some of the picture, the pulley is a bit different but it won’t affect your assembly.

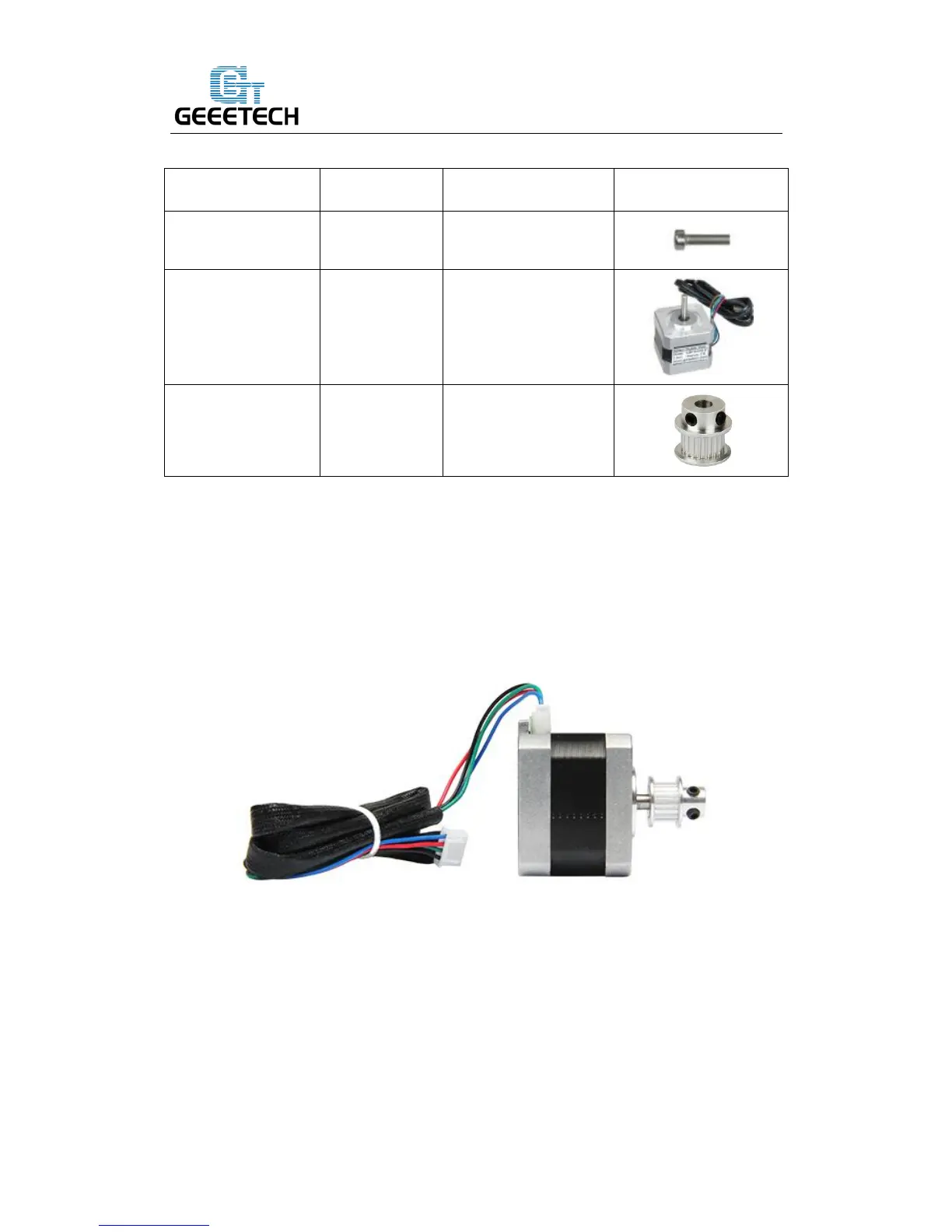

Step1. Mount the pulley on the motor shaft. Screw it on the flat side.
Step2.Mount the stepper motor on the motor end with 3 M3 x 6 mm screw.
