24 ADV200 SP • Quick start up guide - Specification and installation
5.1.6 Input mains choke (L1)
Sizes ADV200 SP-1015 ... 61600: Integrated on DC-link.
Sizes ADV-...-DC: not available.

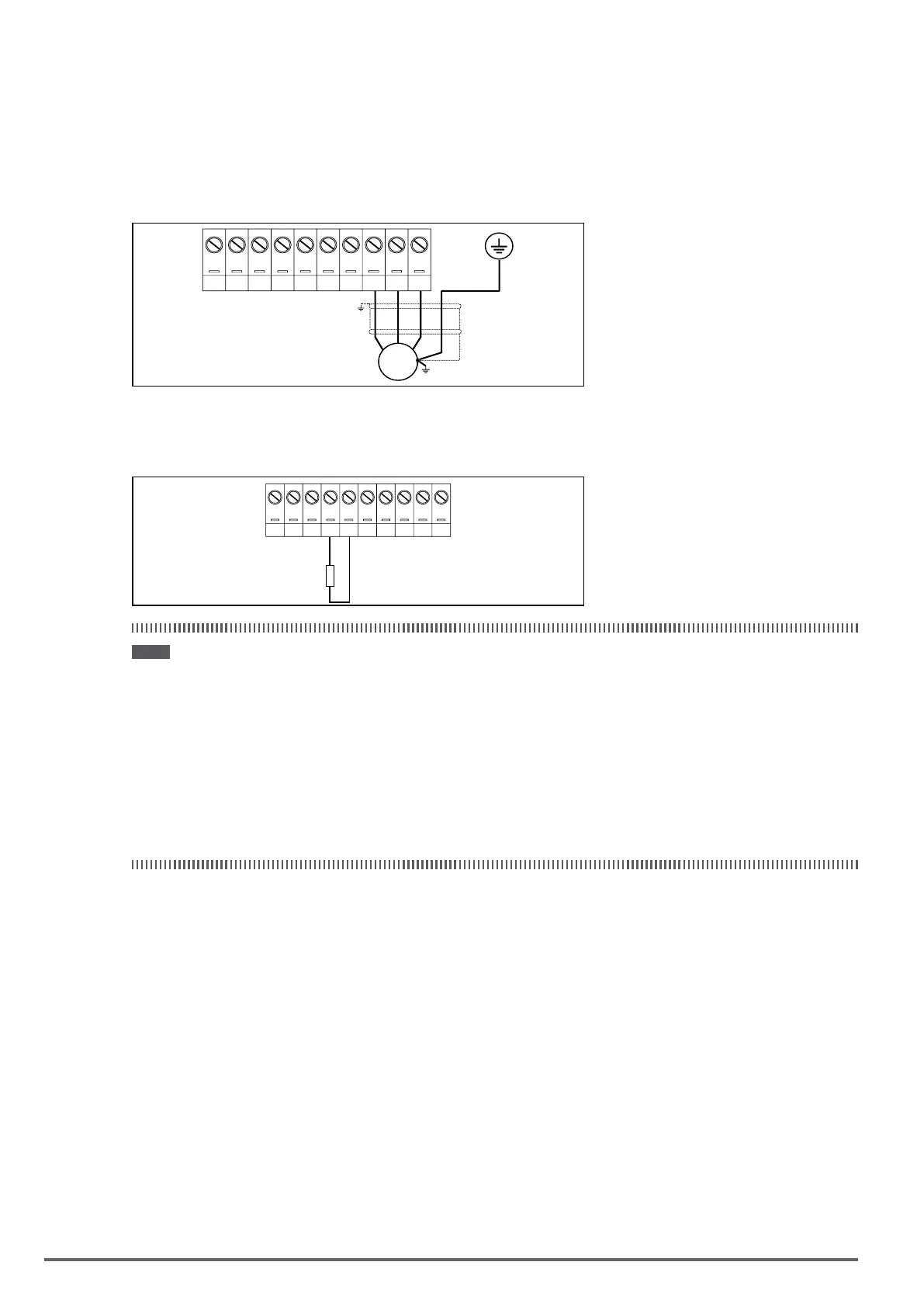

5.1.7 Motor connection
ADV200 SP-1015 ... 61600
M
3ph
L1 L2 L3 BR1 BR2 CDUVW
Note: terminals L1-L2 and L3 are not present in -DC versions.
5.1.8 Braking unit connection (optional)
L1 L2 L3 BR1 BR2 CDUVW
Braking resistor
Note! ADV200 SP-...-4
Terminals BR1/BR2 are standard up to size ADV200 SP-3300, optional in sizes ADV200 SP-4370 ... 5750, larger sizes
are not used.
From size ADV200 SP-5900 an optional external BUy braking unit can be used and connected to terminals C and D.
Refer to the BUy handbook for further information.
Recommended combination braking resistors: see paragraph 10.4.
ADV200 SP-...-4-DC
Terminals BR1/BR2 are not present.
An optional BUy braking unit connected to terminals C and D can be used. For further details reference should be
made to the BUy manual.

-

• 
• 
