ADV200 SP • Quick start up guide - Specification and installation 33
RS485
(XS)
RS485
RS232
PCI-COM (S560T)
Industrial PC
(with RS485)
PC with RS232 portPC with USB port
RS485
(XS)
RS485
(XS)
Shielded cable with connectors,
4.5 mt (8S864C), 10 mt (8S874C)
Shielded cable with connectors,
4.5 mt (8S864C), 10 mt (8S874C)
RS485
USB
Serial converter USB / RS485
5 mt (8S8F64)

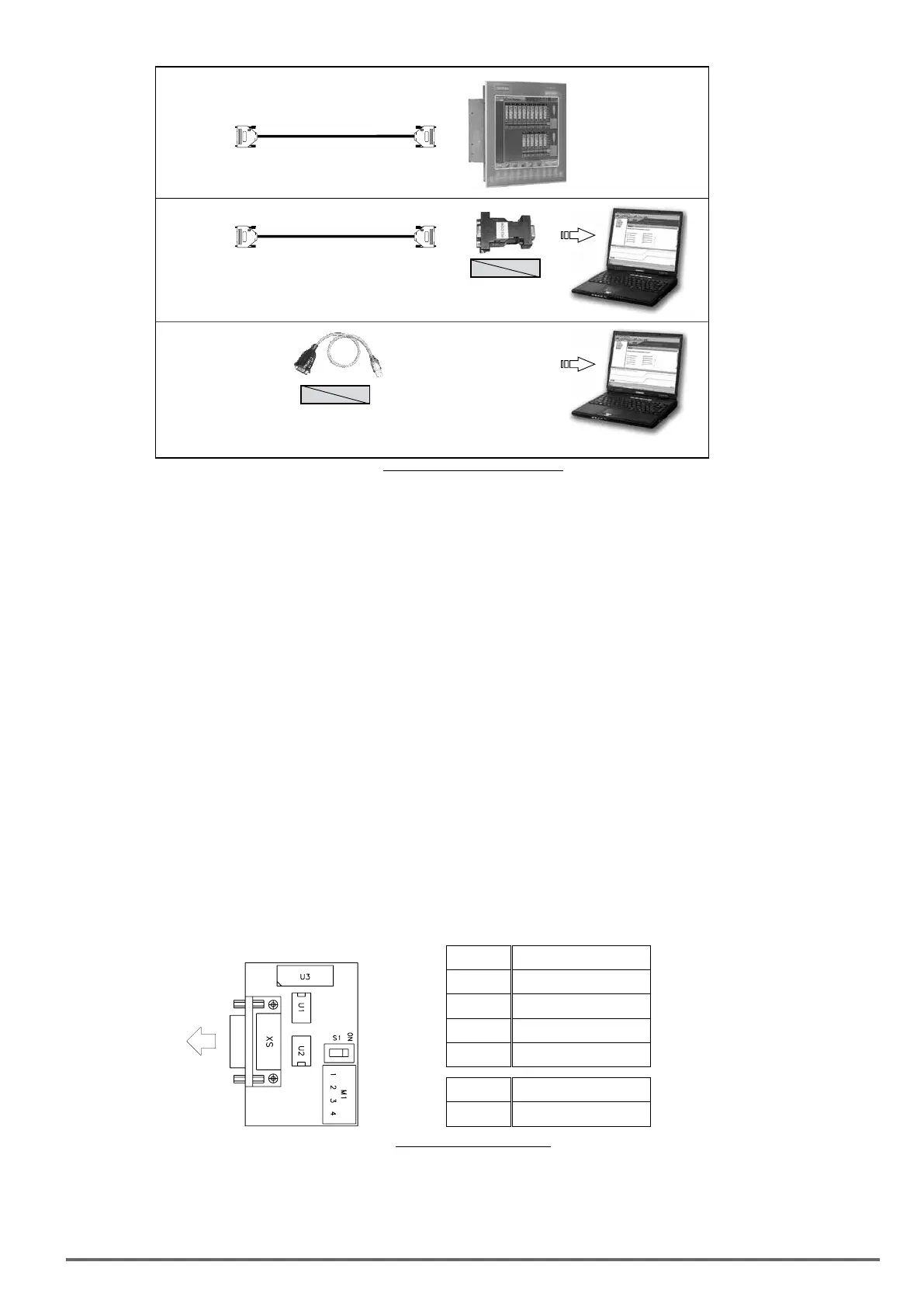

Figure 5.4.1.2: RS485 connection to the PC
Connection of an industrial PC with RS485
The following are required for connection:
XS / RS4852), code 8S864C.
Connection to a PC with RS232 port
The following are required for connection:
• an optional PCI-COM (or PCI-485) adapter, code S560T.
XS / PCI-COM 2 .
Connection to a PC with USB port
The following is required for connection:
• an optional USB/ RS485 adapter, code 8S8F642 .
5.4.2 Drive / RS485 port point-to-point connection (with insulation)
To make the connection with galvanic isolation, the OPT-RS485-ADV optional card is required.
XS connec-
tor of the ADV200 SP drive.
XS
Terminal
1
2
3
4
Name
TxA /RxA
TxB /RxB
Reserved
EQP (Equipotentiality)
Switch
S1
Function
Closing of terminations
Figure 5.4.2.1: OPT-RS485-ADV card
