gefran ADV200 SP Series - Regulation Section; Removing the Terminal Cover; Cable Cross Section; Regulation Section Connection

26 ADV200 SP • Quick start up guide - Specification and installation
5.2 Regulation section
5.2.1 Removing the terminal cover

A
A
5.2.2 Cable Cross Section
Terminal strips
(Regulation card)
Maximum Cable Cross Section Recommended
stripping
Tightening torque (min)
(min)
(mm
2
) (AWG) (mm) (Nm)
0.2 ... 2.5 24 ... 12 7 0.5
5.2.3 Regulation section connection

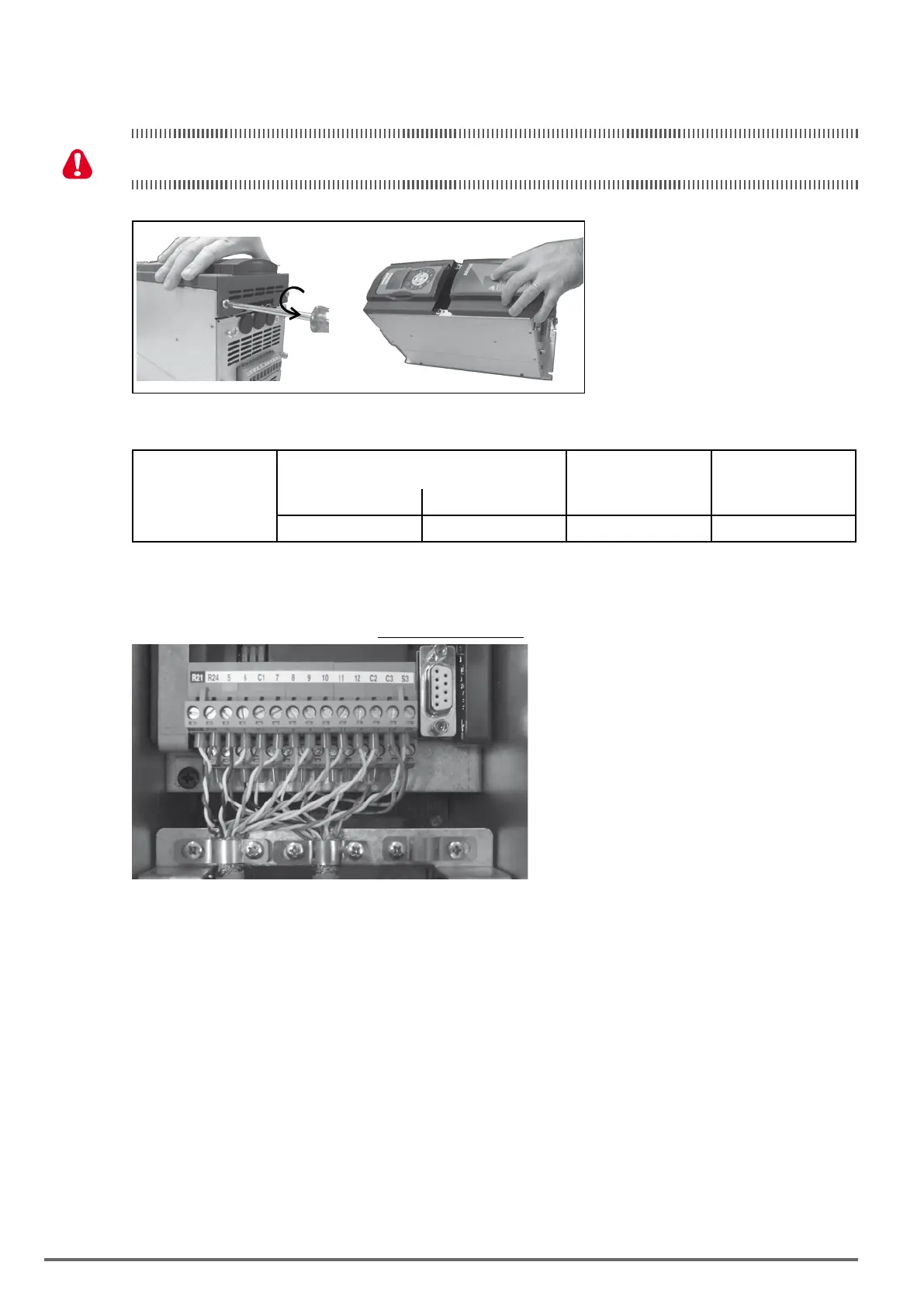

Figure 5.2.3.1: Regulation shielding


Warning!
