Gehl R135 User Manual

3 50940193/DP0415

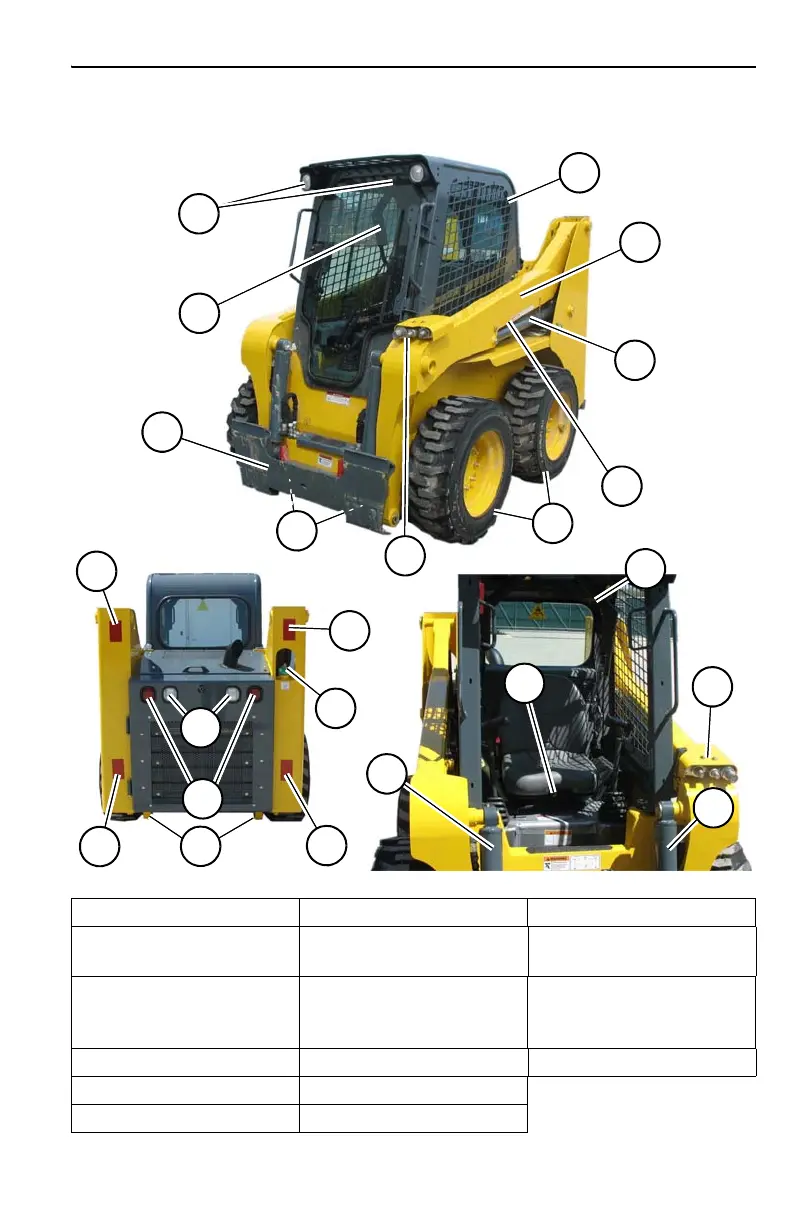

Machine Orientation
“Right” and “left”, as described in this manual, are determined from a position sitting in
the operator’s seat and facing forward.
1. Attachment Bracket 7. Lift Arm Support Device 13. Fuel Cap Cover
2. Restraint Bar 8. Auxiliary Couplers
14. Seat Plate (according to ISO
7096)
3. Front Work Lights
9. Roll-Over / Falling Object
Protective System (ROPS/
FOPS)
15. Tie-Down
4. Tilt Cylinder 10. Lift Cylinder 16. Rear Work Lights
5. Lift Arm 11. Reflectors
6. Tires 12. Tail Lights (Position Lights)
1
2
2
4
5
6
8
4
12
13
14
3
7
8
9
10
15
15
11
11
11
11
16

Gehl R135 Specifications

General

Operating Capacity	1350 lbs
Tipping Load	2700 lbs
Rated Operating Capacity (SAE)	1350 lbs
Engine Make	Yanmar
Rated Operating Capacity (kg)	612 kg
Tipping Load (kg)	1225 kg
Fuel Tank Capacity	16 gal
Net Power	46 hp
Fuel Capacity	16 gal
