77 50940193/DP0415
Attachment Mounting
The machine is equipped with either the standard manual All-Tach® hitch or optional
Power-A-Tach® system hitch for mounting a bucket or other attachments.
All-Tach® Hitch
A manual latch lever (E, Figure 43)
engages the latch pins, which lock
the attachment onto the hitch. While
standing outside the machine, rotate
the lever all the way to the right (as
viewed while facing back at the
machine from the front) to engage
the locking pins to lock the
attachment onto the hitch. Rotate the
lever all the way to the left to
disengage the locking pins. Refer to
“Connecting Attachments” on
page 96 for more information.
To prevent unexpected release of the attachment
from the hitch, be sure the locking lever is rotated
all the way to the right (as viewed while facing back at the machine from
the front) and the locking pins (F, Figure 44) extend down through the
attachment frame.
Locking pins (F) must be fully
extended through the holes in the
attachment frame before using the
attachment. The attachment could
fall off if it is not locked on the hitch
and cause serious injury or death.

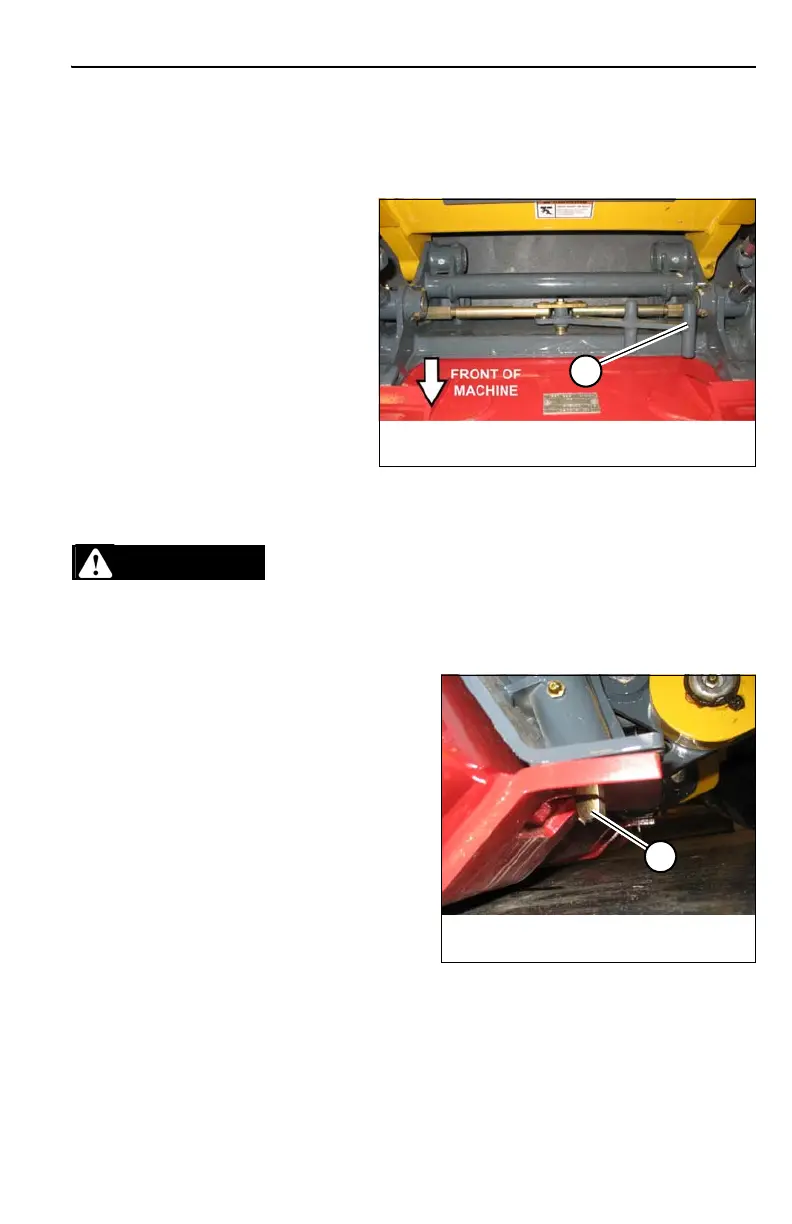

Figure 43 – All-Tach® Hitch
E
WARNING
Figure 44 – Hitch Locking Pins
F
