Maintenance / Repairs OptiCenter OC06
18.

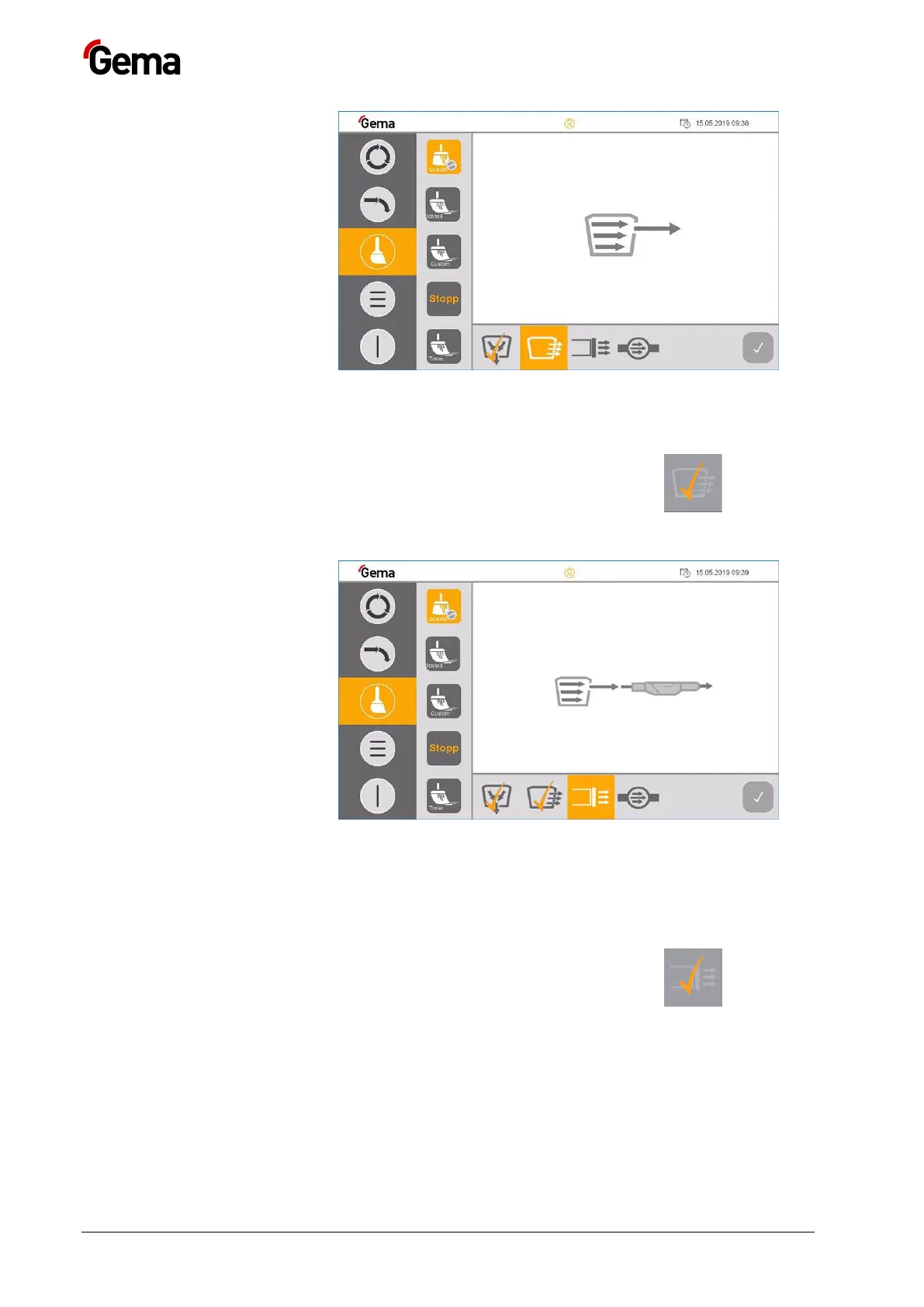

19. The OptiSpeeder is cleaned, the powder from the OptiSpeeder is
transported to the booth
20. The powder is conveyed from the booth.
21. The process step is complete once this symbol is displayed
(after approx. 180 seconds for intensive cleaning and approx. 30
seconds for quick cleaning).
22.
– The powder hoses are cleaned and the powder is transported to
the booth
– The powder is conveyed from the booth
– The corresponding cleaning program is displayed on the
OptiStar control units:
23. The process step is complete once this symbol is
displayed.
– The key can be pressed once again if necessary. Otherwise the
next cleaning step is activated.
