Rev. 00 12/22
OptiMove CR09-C Product description • 17
Design and function
The axis control unit is available as an enclosure version for building into
an ASxx control system.

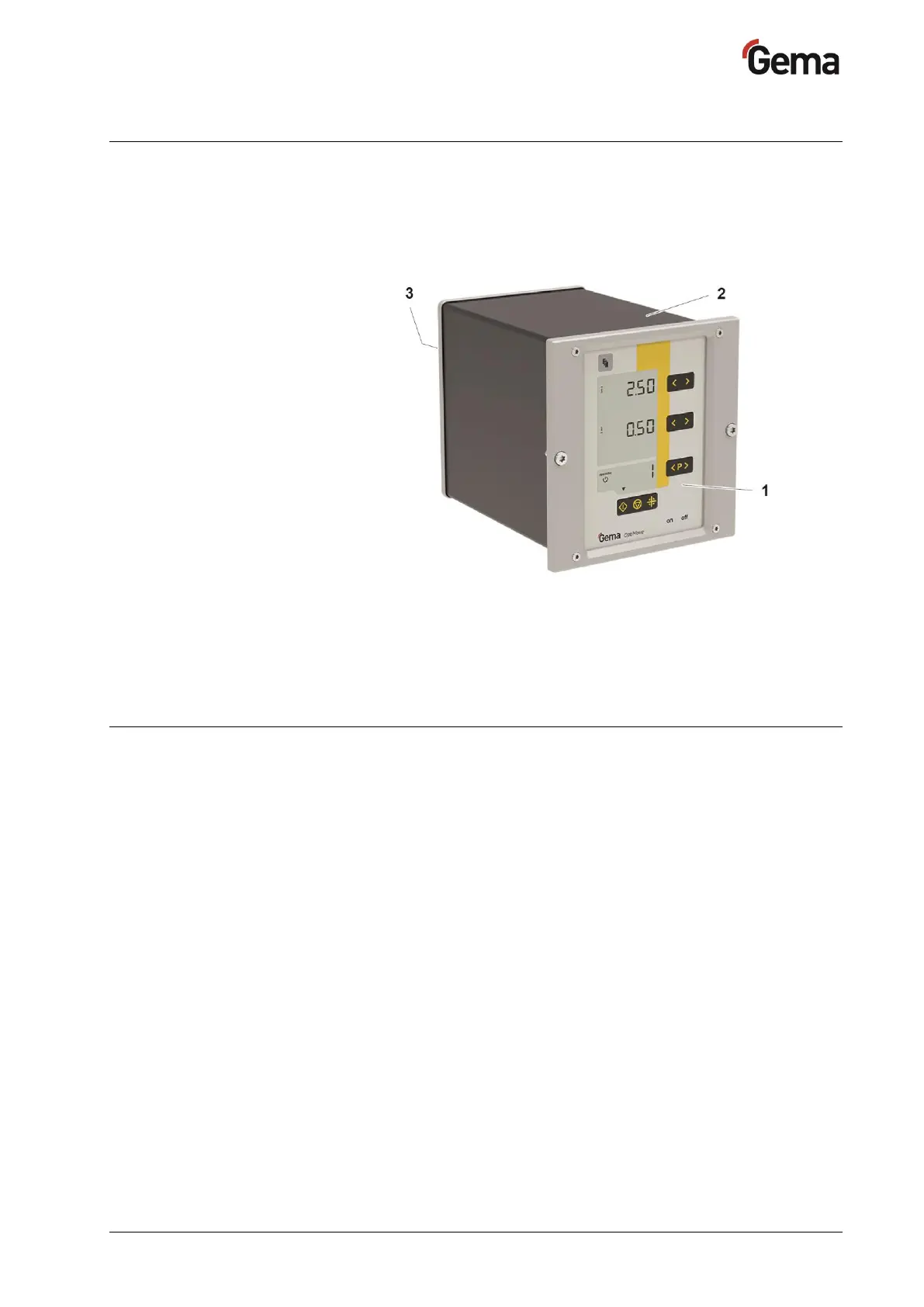

Overall view
Fig. 3
1 Front plate with control and
display elements
2 Enclosure
3 Back panel with interfaces
Function description
The axis control unit is used in axis control systems. A complete axis
control system consists of an OptiMove control unit, a frequency
converter and an axis with asynchronous motor. The frequency converter
receives the supply voltage and the control signals directly from the
OptiMove axis control unit.
The axis control unit contains the visualization, input unit and sequence
control for the control of an axis with motor and frequency converter.
The drive motor is equipped with an electrical retaining brake. The holding
brake is activated if the axis control is disconnected from mains.
