OptiMove CR09-C Product description • 19
Operating elements
The control unit is operated by a foil keyboard with input and display
elements.
In the "Manual" operating mode, all operation functions are released with
the foil keyboard. In the "Remote" operating mode, only visualization
functions are available.
Display
The desired and actual values are distributed across several
levels.
– The key is used to switch between the levels.
– Certain levels* are only visible in certain axis operating modes
(See chapter "System parameters" on page 30.).

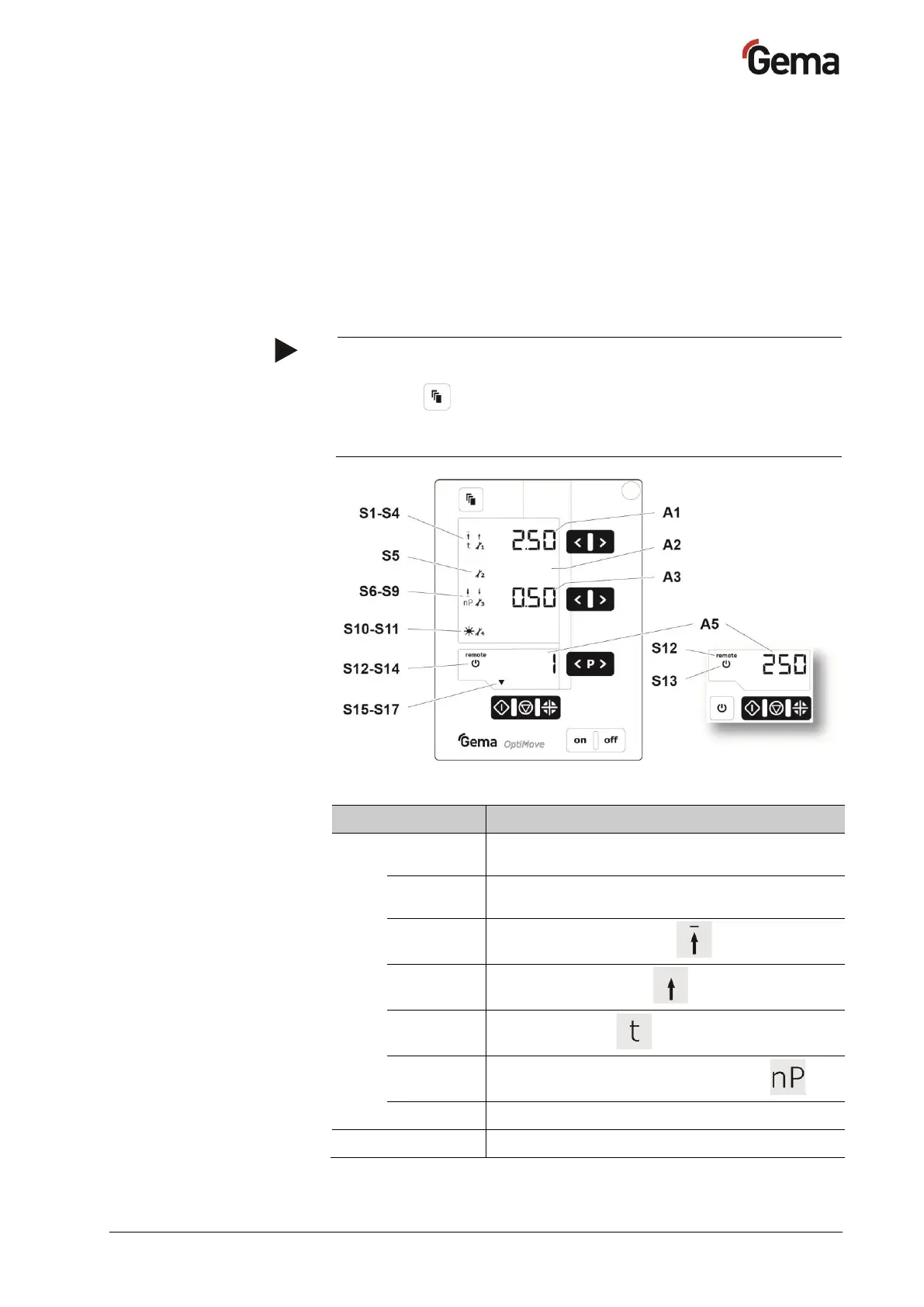

Fig. 5: Displays, Level 1
Designation
Function
A1
Display of actual values / desired values and
system parameters
Level 1
– Position of the axis while traveling or at a
standstill
Level 2
– Axis upper position
Level 3
– Speed upwards
Level 4*
– Dwell time
Level 5*
– Number of the following program
– Parameter number
A2
– Parameter designation
