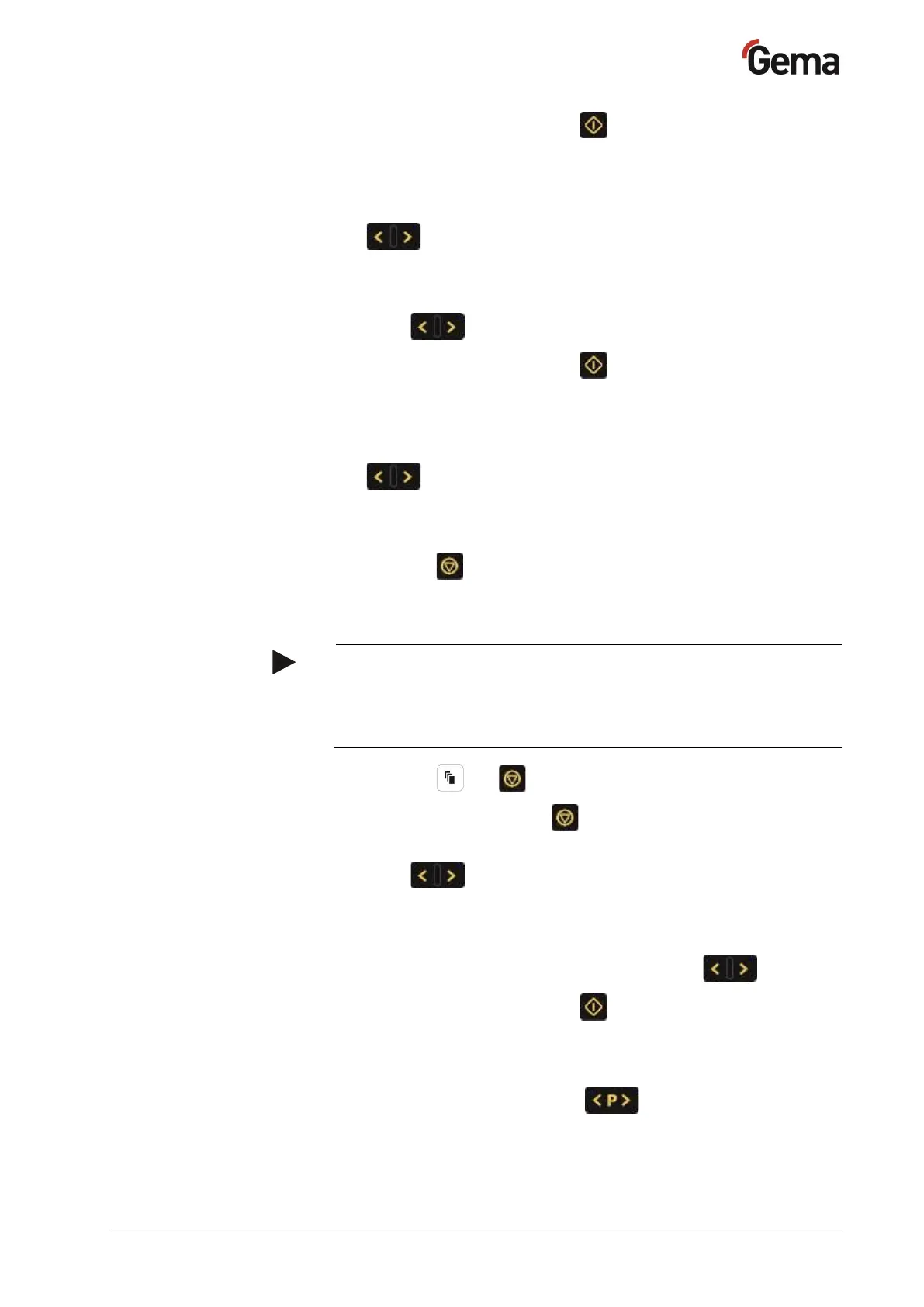

OptiMove CR09-C Axes operating modes • 53
– The triangle above the key flashes.
– Axis travels to the upper reversing point
– The position of the selected program is displayed
4. Adjust the upper reversing point on display A1 using the keys
– Axis travels with the modification
– The new position of the upper reversing point is programmed
5. Press in the display area A3 in order to start the axis
– The triangle above the key flashes.
– Axis travels to the lower reversing point
– The position of the selected program is displayed
6. Adjust the lower reversing point on display A3 using the keys
– Axis travels with the modification
– The new position of the lower reversing point is programmed
7. Press the key, in order to exit the setup mode
Setup mode by keyboard (sequence program)
Before starting the setup, the operating parameters of the
individual program steps (speed, dwell time and address of the
successor program) must first be set.
– See also "Structure of a program step (procedure step)" on
page 49.
1. Press the and key at the same time.
– The triangle above the key flashes to indicate that the Setup
mode is active.
2. Press in the display area A1, in order to start the axis
– The axis travels to the position of the first program step
– The position of the first program step is displayed
3. On the display A1, adjust the positions using the keys
– The triangle above the key flashes.
– Axis travels with the modification
– The new position of the first program step is programmed
4. Select next program step using keys.
– The display A5 shows the program number
5. Repeat the steps 2-4 for further program steps
