70 • Spare parts list OptiMove CR09-C
Rear wall
1
Back plate gasket
1015 198
2
Screw – M4x16 mm
1013 925
3
Washer – Ø 4.3/9x0.8 mm
215 791
4
Protection cap
265 438
5
Protection cap
265 446
6
Fuse holder
200 131
7
Fuse – 10 AT
200 174
8
Relay socket
251 135
9
Relay – 24 VDC/10 A, 2UK
1002 915
10
Freewheeling diode for relay
258 075
11
Safety strap for relay socket
1001 063
12
Control signals connection – complete
1010 739
12.1
Socket – 19 pins,
1000 481
13
DigitalBus connection – complete
1000 284
13.1
Connector – 19 pins
1000 480
14
CAN bus IN connection – complete
1024 868
14.1
Connector – 4 pins
1000 479
15
CAN bus OUT connection – complete
1024 869
15.1
Socket – 4 pins,
1000 481
16
Drive supply connection – complete
1010 740
17
Power supply connection – complete
1010 741

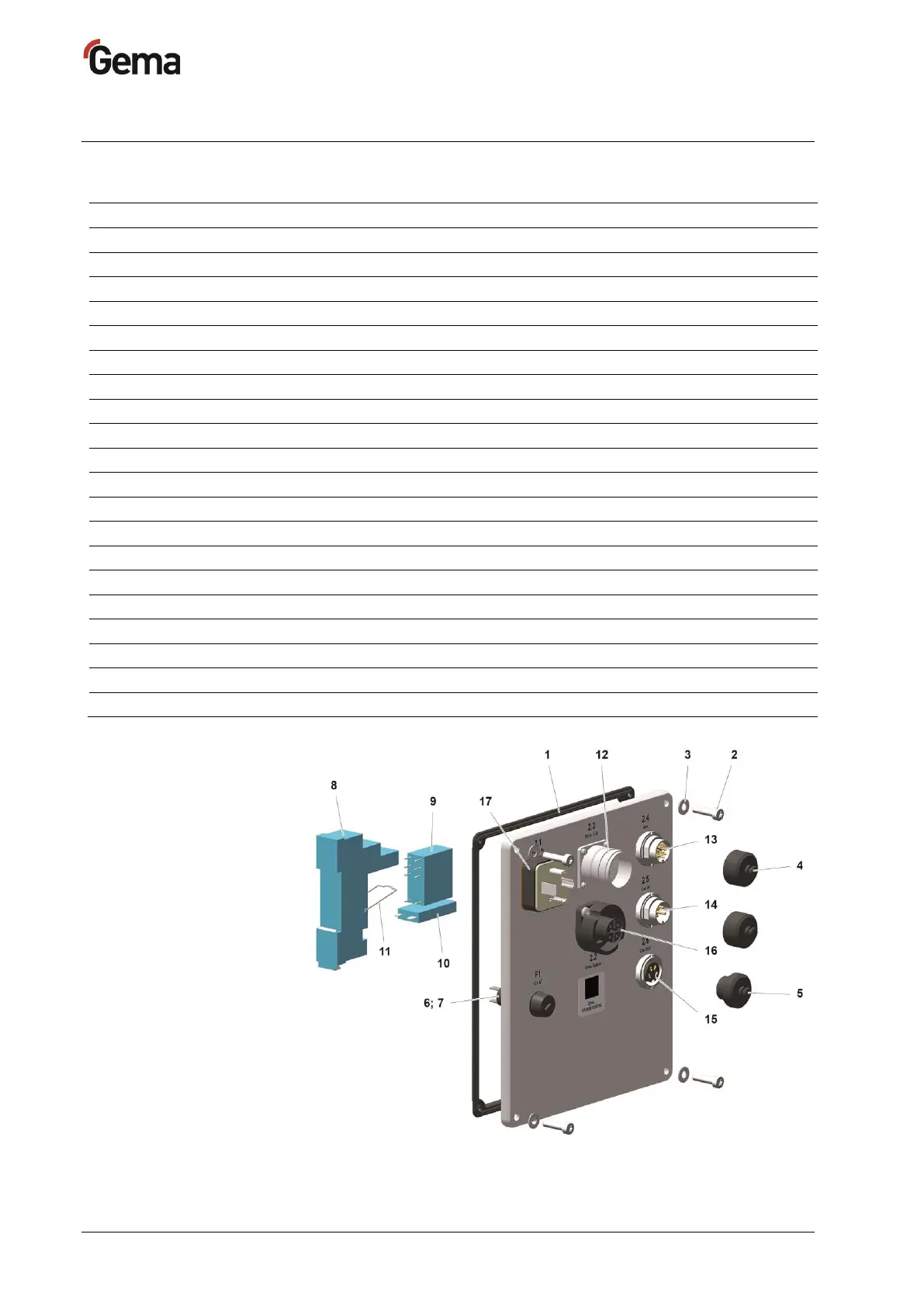

Fig. 16: OptiMove CR09-C – Rear panel
