OptiMove CR09-C Spare parts list • 69
Front plate
Front plate – complete (pos. 1-14)
1022 184
Front plate with foil keyboard (pos. 5-8)
1022 172
1
Main board – complete
1022 174
2
Spacer sleeve – Ø 3.4/6x21.5 mm
1015 215
3
PCB "Powerboard" – complete
1022 177
4
Spacer sleeve – Ø 3.2/6x7 mm
1009 954
5
Front frame – complete (incl. pos. 5.1)
1015 232
5.1
Screw
1007 019
6
Screw – M4x20 mm
1003 000
7
Front plate gasket
1015 236
8
Membrane keypad with support plate
1022 171
9
Spacer sleeve – Ø 3.6/7x5 mm
247 758
10
Display
1022 179
11
Washer – Ø 3.2/7x0.5 mm
201 944
12
Locknut – M3
262 498
13
Spacer sleeve – Ø 3.1/6x15 mm
261 548
14
Spacer sleeve – Ø 3.2/6x13 mm
1015 214

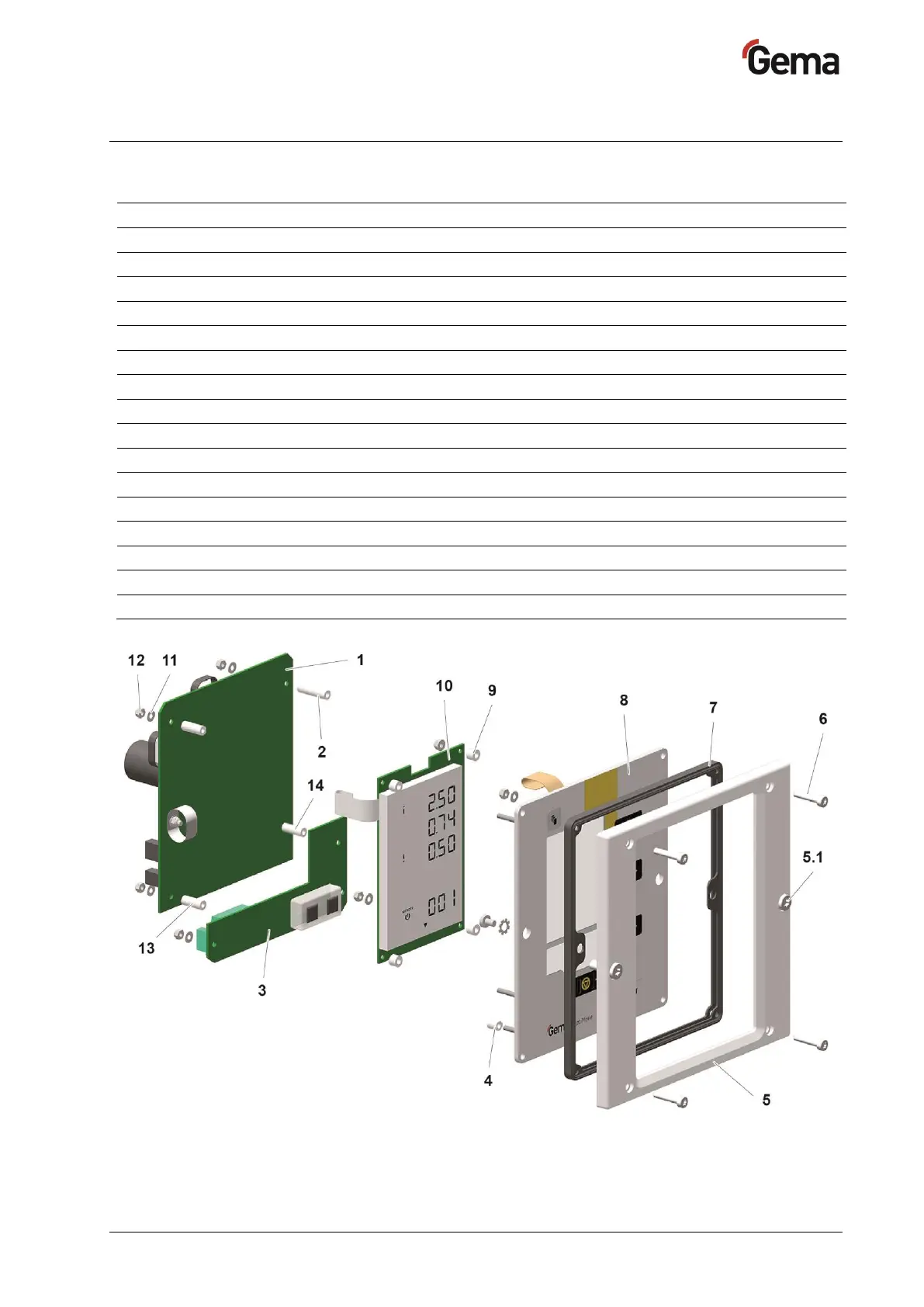

Fig. 15: OptiMove CR09-C – front plate
