40 • Start-up OptiMove CR09-C
Control sequence for program parameter (identification
numbers 0-5)
Data transfer
The data transfer from the data bus is initiated by a negative edge of the
Strobe control signal.
The Data bus is read in for data validation 3 times and the results
compared, after every negative Strobe edge. If an error occurs, the digital
output Error is set at high and the error message H30 is shown on
display A5.

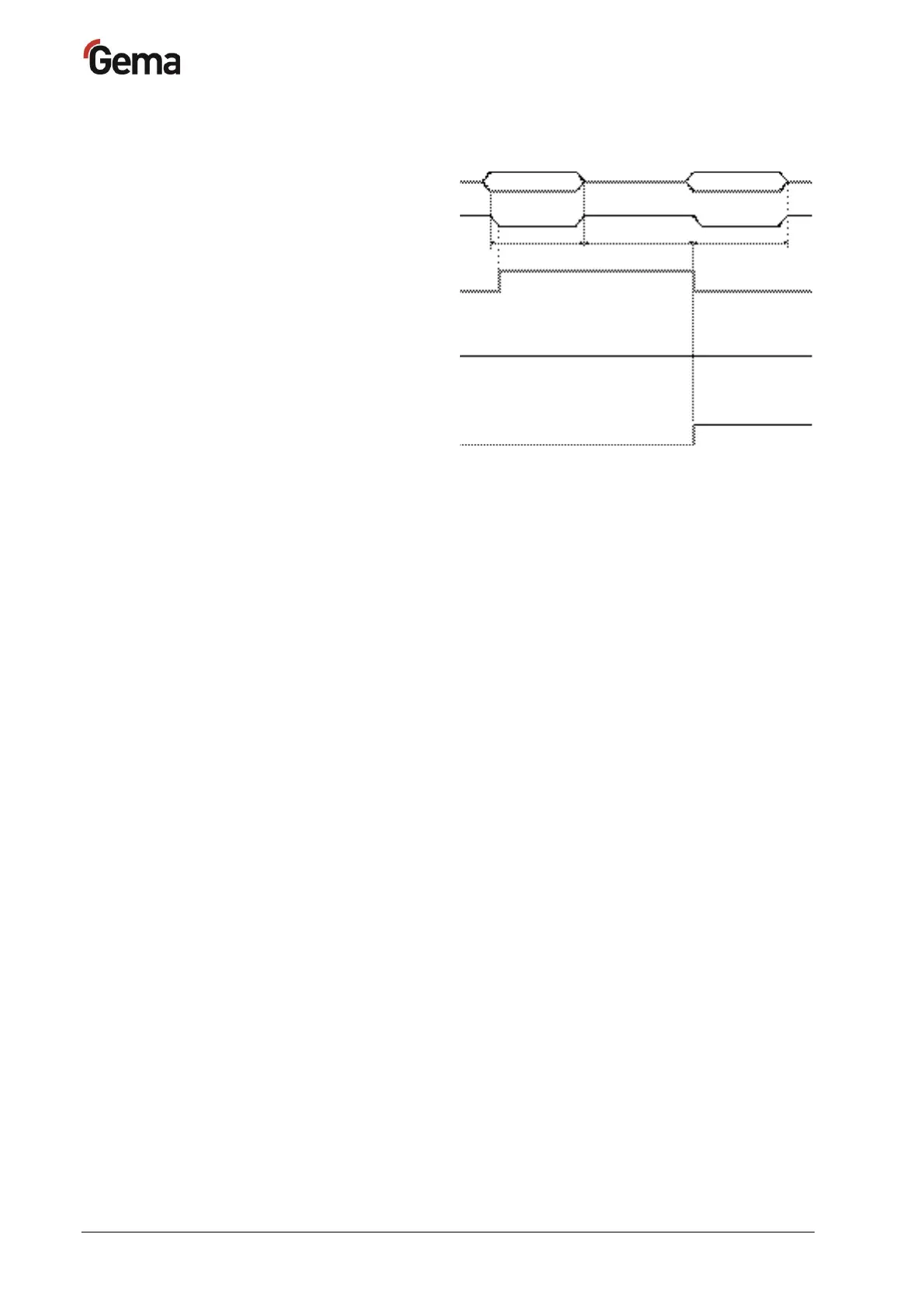

DATA STABLE
Data bus
Strobe signal
OptiMove
Composite error message Error
low – correct transmission
Composite error message Error
high – incorrect transmission
DATA STABLE
Reading and processing
Ts ≥ 20 ms
Ts ≥ 20 ms
Ts ≥ 20 ms
