G-858BP Backpack Mag Operators Manual

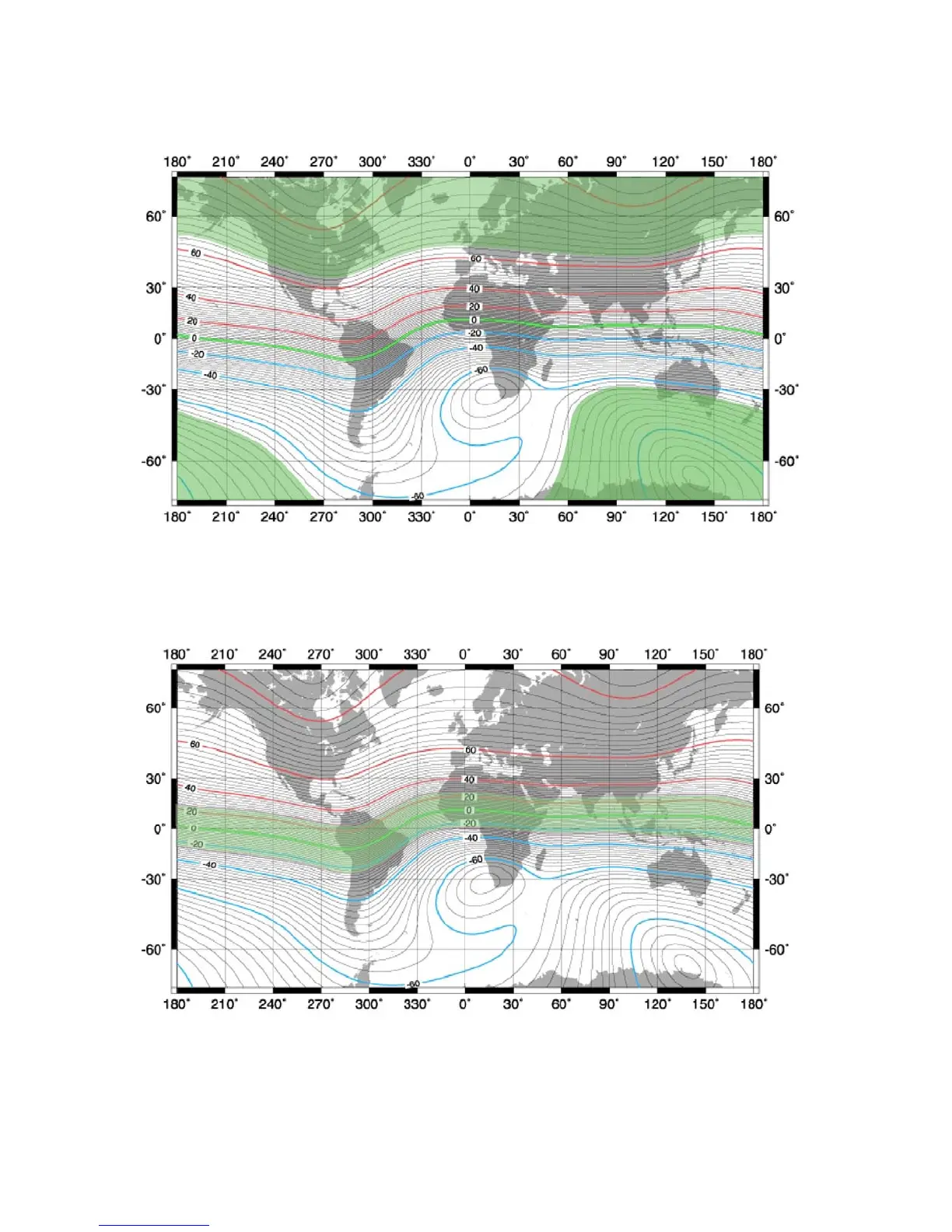

Figure 8 World map showing highlighted Vertical Magnetic field zone (green section) for when
the sensor should be mounted at 45 de
g
rees to vertical.
Figure 9 World map showing highlighted Horizontal Magnetic field zone (green section) for when the
sensor should be mounted at 45° (side tilt for East-West, back tilt for North-South) or 90 deg
mounting for NE-SW, NW-SE operation. See CSAZ for more information.
11
