G-858BP Backpack Mag Operators Manual
Loosen the Sensor Clamp sensor knurled screw and push the sensor up until the bottom of the sensor is
even with the clamp ring. Hand-tighten the screw. Then remove the clamp screw holding the sensor clamp
to the sensor mast. Rotate the sensor clamp 180º to the outboard position so that it extends laterally out to
the right side of the pack frame as shown in Figure 11 and reinsert the sensor clamp screw and tighten. This
is the proper installation for vertical orientation of the sensor suitable for most areas of the world.
To orient the sensor for 45º or for horizontal operation, remove the Mast Clamp screw and place the clamp
on the mast at 45º or 90º using the appropriate mast channel. See Figure 13 for examples of 45º and 90º
installation.

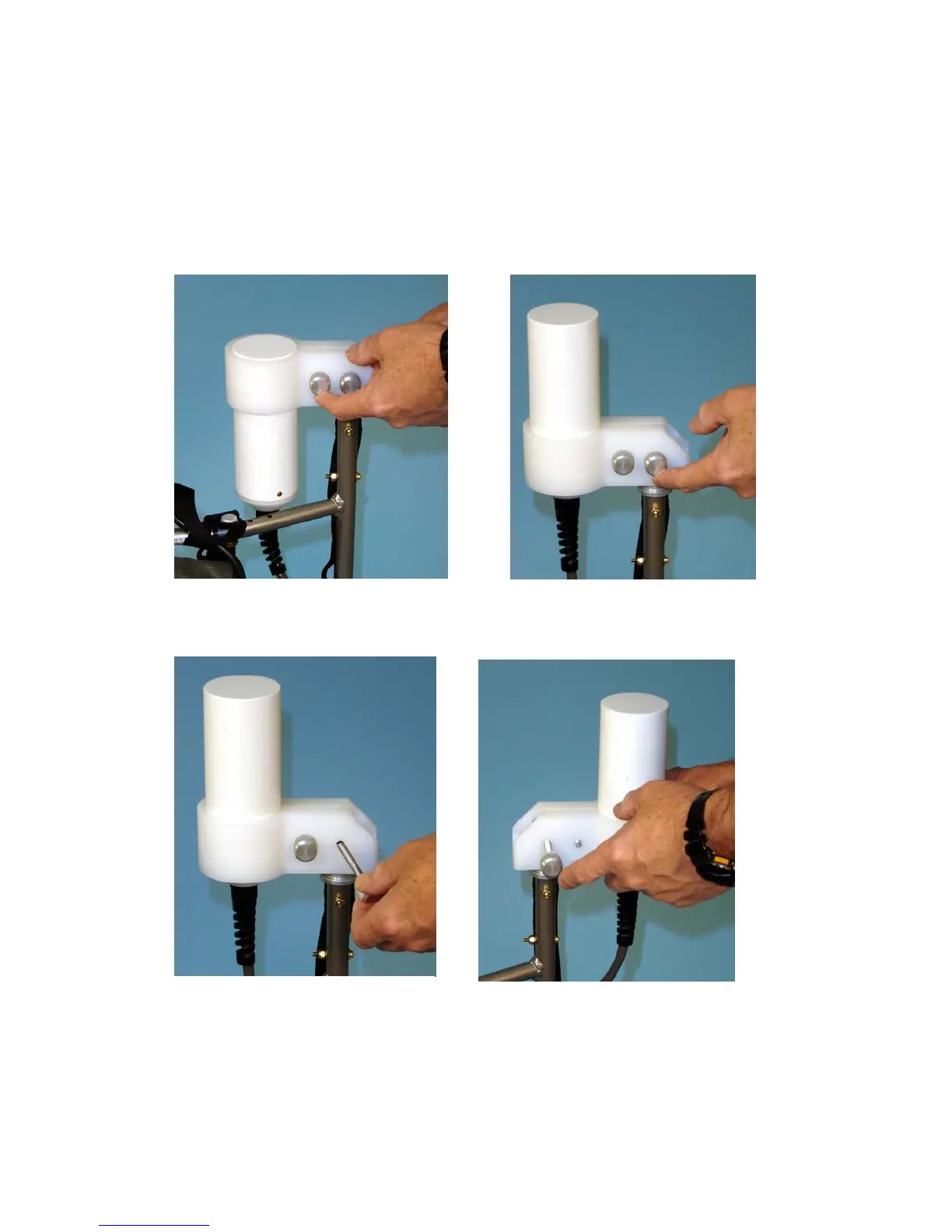

Figure 10 Sensor Mast Clamp
Figure 11 Remove Mast Clamp
and swivel to right of pack frame
12
