G-858BP Backpack Mag Operators Manual

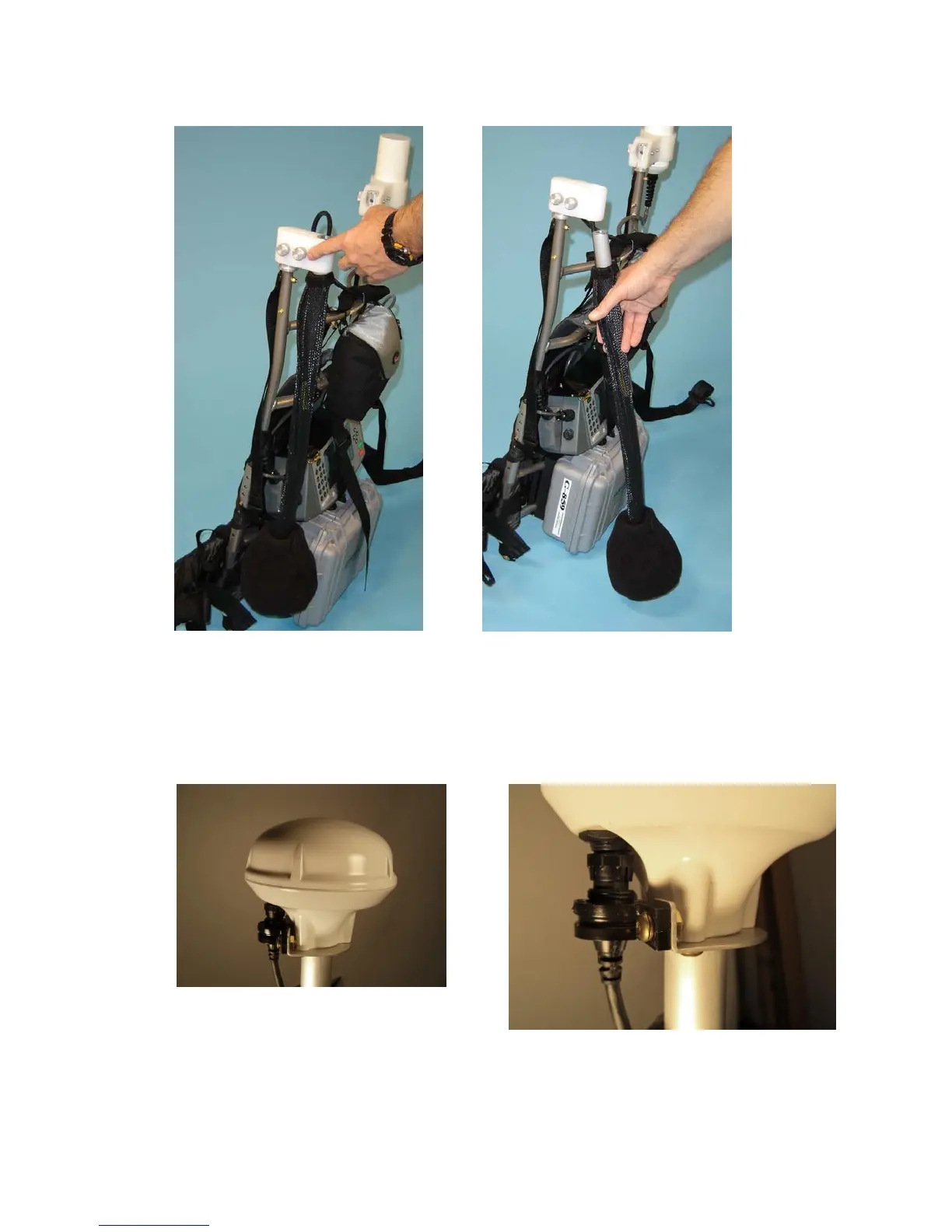

Figure 15 Remove Antenna mast from Pack Frame
Make sure the GPS cable wrap is securely fitted around the cable to prevent branches and brush from
hooking on the GPS cable assembly. (Note: appearance of wrap material may vary). The Novatel
SmartAntenna GPS antenna is now provided with a connector brace (shroud is no longer supplied) to
protect the antenna cable connector from branches and brush strikes. See pictures below.
Figure 16 New Connector Bracket
16
