Note for People Counting
To use the camera’s built-in people counting feature (see 4.6.8 People Counting), not
supported by GV-SD2322-IR, it is recommended to install the camera according to the
criteria listed below:
Surveillance Condition
• The camera shall be installed at a site with uniform, sufficient lighting, where the
person(s) to be counted are fully illuminated.
• The camera shall be installed at an entrance or exit with an ideal width of 1 ~ 4 m
(3.28 ~ 13.12), where the persons(s) to be counted move toward the lens of the
camera in single file.

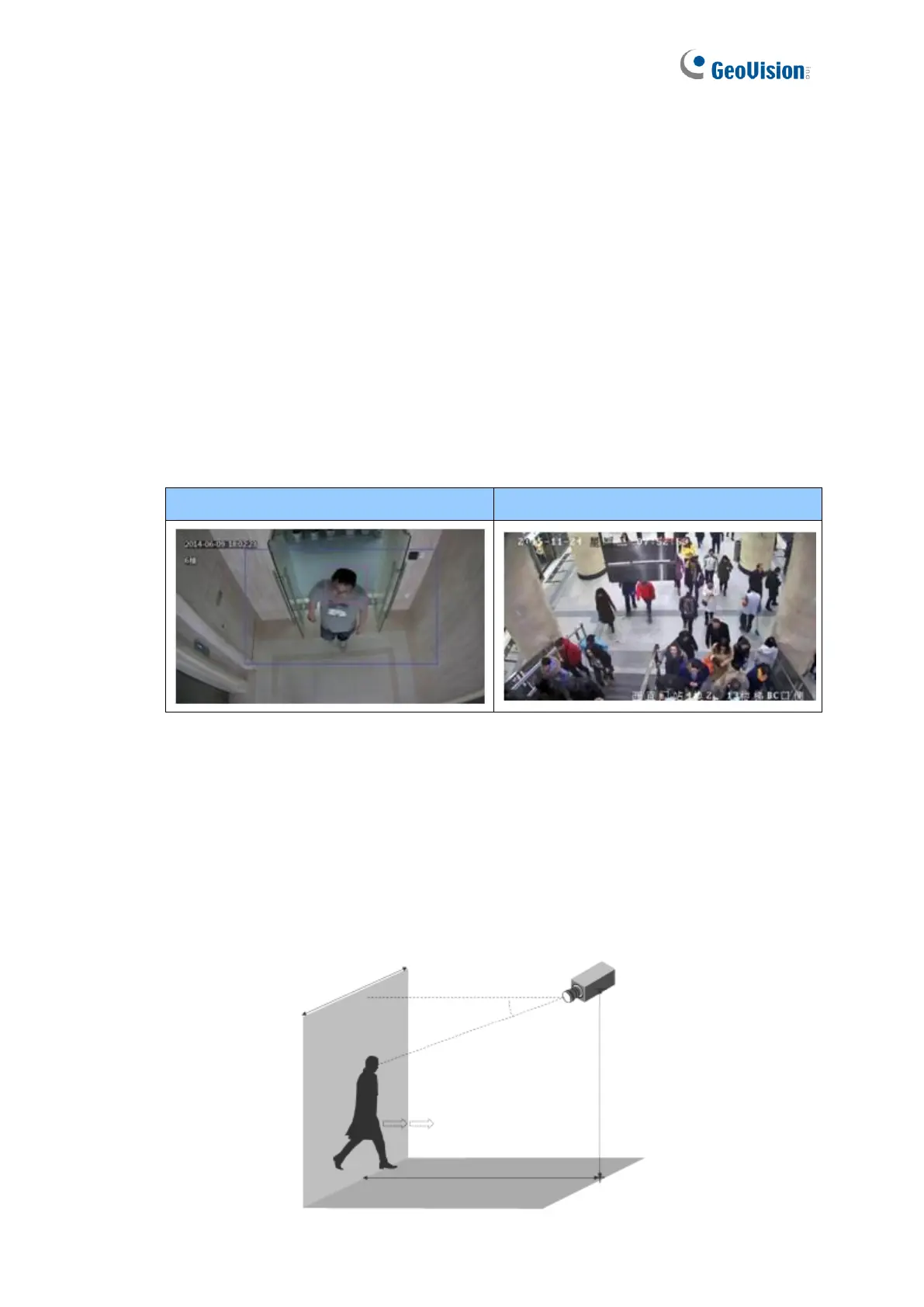

Example of Recommended Scene
Example of Non-recommended Scene
Camera Position
• The camera shall be mounted at a recommended height of 3 ~ 5 m (9.84 ~ 16.4 ft).
• The camera shall be mounted with a recommended depression angle of 70 ~ 80°.
• The camera shall be positioned so that the person(s) to be counted face toward the
lens of the camera and are displayed on the image with a shoulder size of between
120 ~ 160 pixels.
Surveillance
area width
Horizontal line
Depression angle α
Optical axis of
the camera
Pedestrian walking direction
(straight along the center of
the ground)
Horizontal surveillance distance
Device mounting height
