4.7 Events
You can set the camera to generate an alarm upon motion detection, temperature alarm,
audio alarm, and input trigger.
4.7.1 Motion Detection
Motion detection is used to generate an alarm whenever movement occurs in the specified
area.

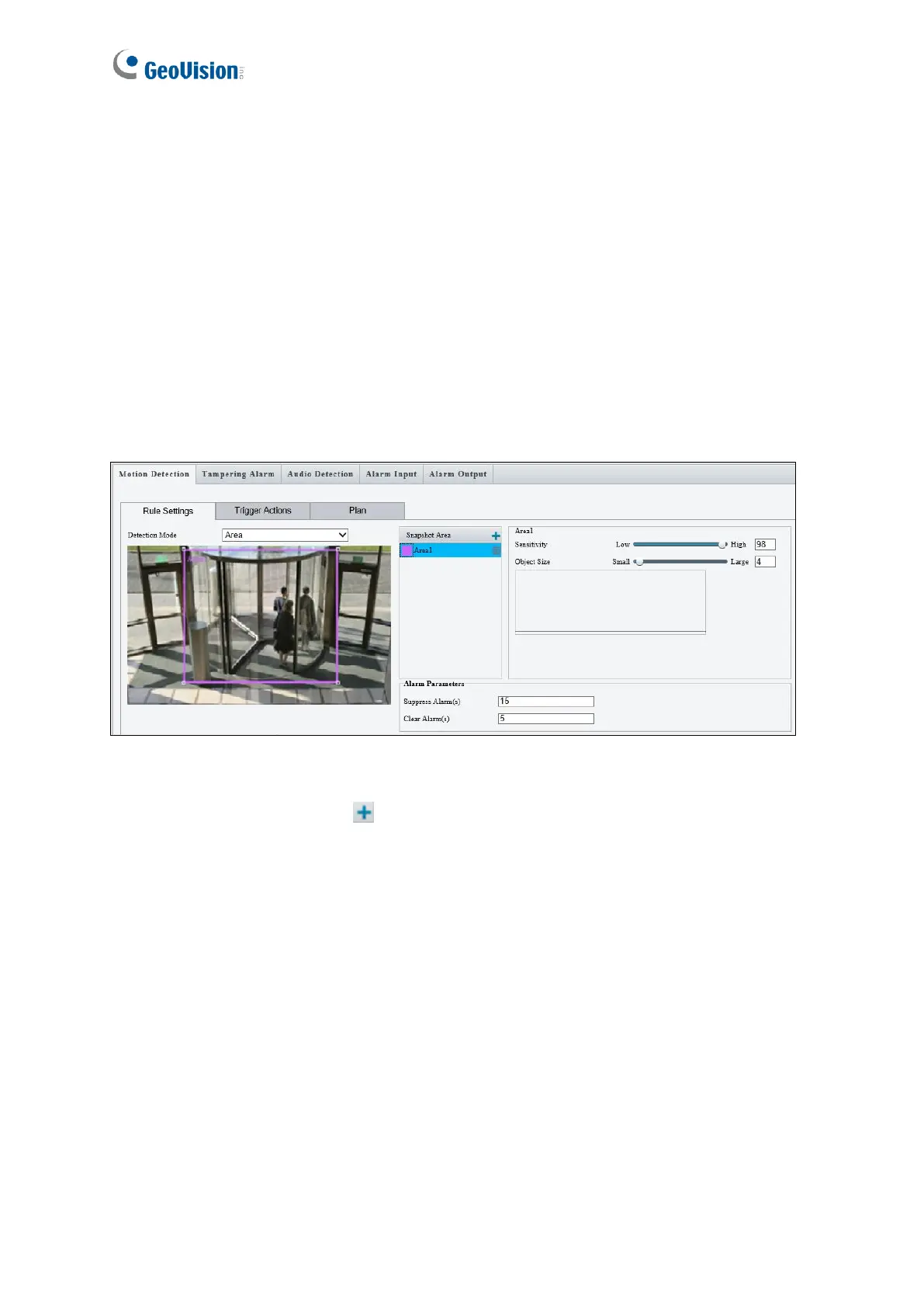

Figure 4-55
1. In the Detection Area, click to create a new detection area.
2. Click and drag the detection area to a desired location.
3. Alternatively, select Grid as the Detection Mode to define the area for detection.
4. You can use the following functions to reduce false alarm.
5. You can use the following functions to reduce false alarm.
Sensitivity: Move the slider to adjust the detection sensitivity.
Object Size: When the extent of motion within the detection area exceeds the set
object size, motion detection alarm is triggered.
[Alarm Parameters]
◼ Suppress alarm: After an alarm is triggered, the same alarm will not be reported within
the set time.
