Getac S400 User Manual

6-4 Using

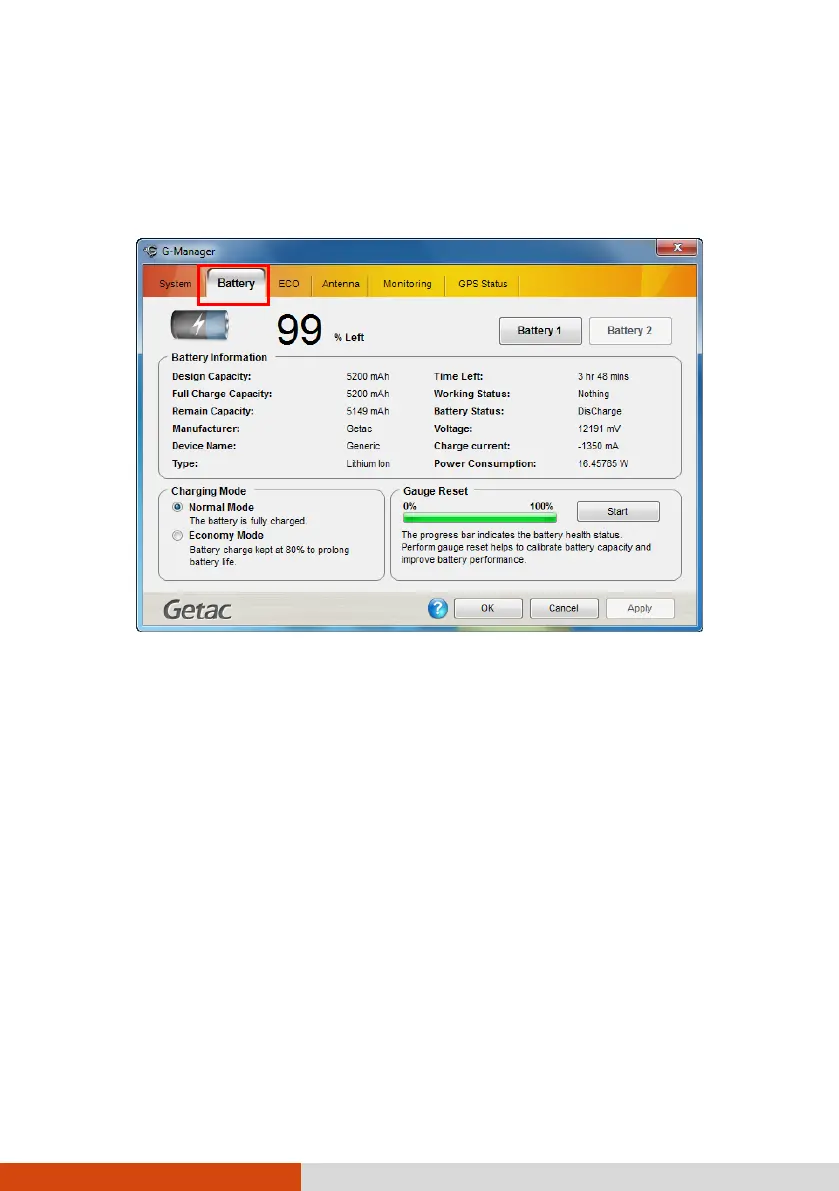

Battery Tab
The Battery tab allows you to check the battery status and configure the battery.
At most two batteries may be supported. Click Battery 1 or Battery 2 to view the
information of each battery (if your model has a second battery).
NOTE:
 When the percentage % Left is less than 10% then the value will be displayed in
red.
 When an abnormal battery condition is detected Battery Status value will be
displayed in red.
Battery Information
The upper portion of the screen displays the current status of the selected battery.
Charging Mode
The lower left portion of the screen allows you to select the charging mode.

Getac S400 Specifications

Power

ac adapter power	90W
ac adapter voltage	100-240V
ac adapter frequency	50/60Hz

Battery

battery capacity	8700mAh
battery type	9 cells Li-Ion

Temperature

operating temperature range	0°C to 60°C
storage temperature range	-40°C to 71°C
humidity	95% RH, non-condensing

System Memory

default memory	4GB DDR3
maximum memory	8GB
memory type	DDR3

Display

display size	14 inches
display resolution	1366 x 768
optional display brightness	800 NITs

Ports & Interfaces

usb 3.0 ports	3
usb 2.0/eSATA combo port	1
serial port	RS-232 x 1

Weight and Dimensions

dimensions	348 x 258 x 49.2 mm
weight	2.9 kg
