Getac S400 User Manual

6-10 Using
 Monitoring Interval – sets the frequency of updates on the monitoring window
(1/3/5/10/30 seconds or 1/5/30 minutes).
Click Apply or OK to save the changes.
Starting and Stopping the Monitoring

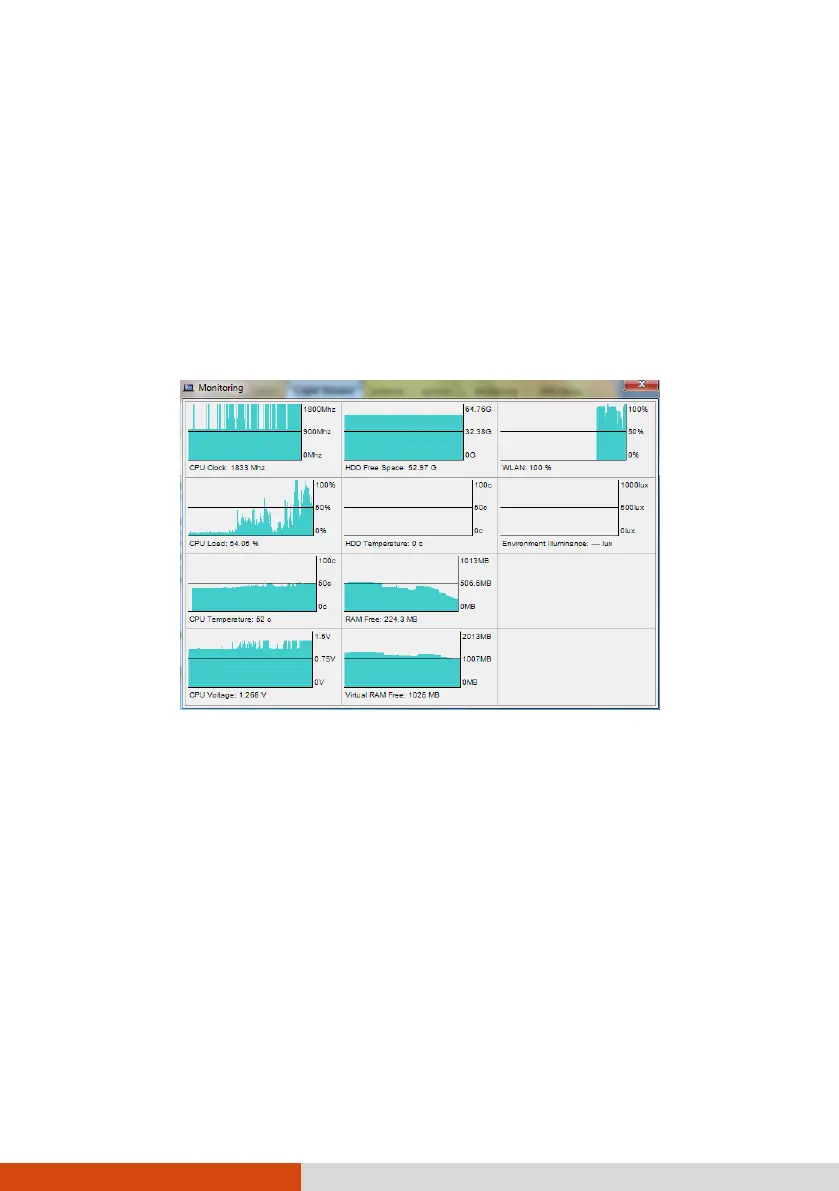

To start monitoring, click START Monitor. The monitoring window similar to the one
below appears displaying requested information at specified intervals.
To stop monitoring, click the Close button at the upper right corner of the monitoring
window or click Stop Monitor on the Monitoring tab page of G-Manager.

Getac S400 Specifications

Power

ac adapter power	90W
ac adapter voltage	100-240V
ac adapter frequency	50/60Hz

Battery

battery capacity	8700mAh
battery type	9 cells Li-Ion

Temperature

operating temperature range	0°C to 60°C
storage temperature range	-40°C to 71°C
humidity	95% RH, non-condensing

System Memory

default memory	4GB DDR3
maximum memory	8GB
memory type	DDR3

Display

display size	14 inches
display resolution	1366 x 768
optional display brightness	800 NITs

Ports & Interfaces

usb 3.0 ports	3
usb 2.0/eSATA combo port	1
serial port	RS-232 x 1

Weight and Dimensions

dimensions	348 x 258 x 49.2 mm
weight	2.9 kg
