Getac S400 User Manual

4-12 Expanding Your Computer
Using ExpressCards
Your computer has an ExpressCard slot.
The ExpressCard slot can accommodate a 54 mm (ExpressCard/54) or 34 mm
(ExpressCard/34) wide ExpressCard. Typical ExpressCards support a very extensive
range of applications including memory, wired and wireless communication cards, and
security devices.

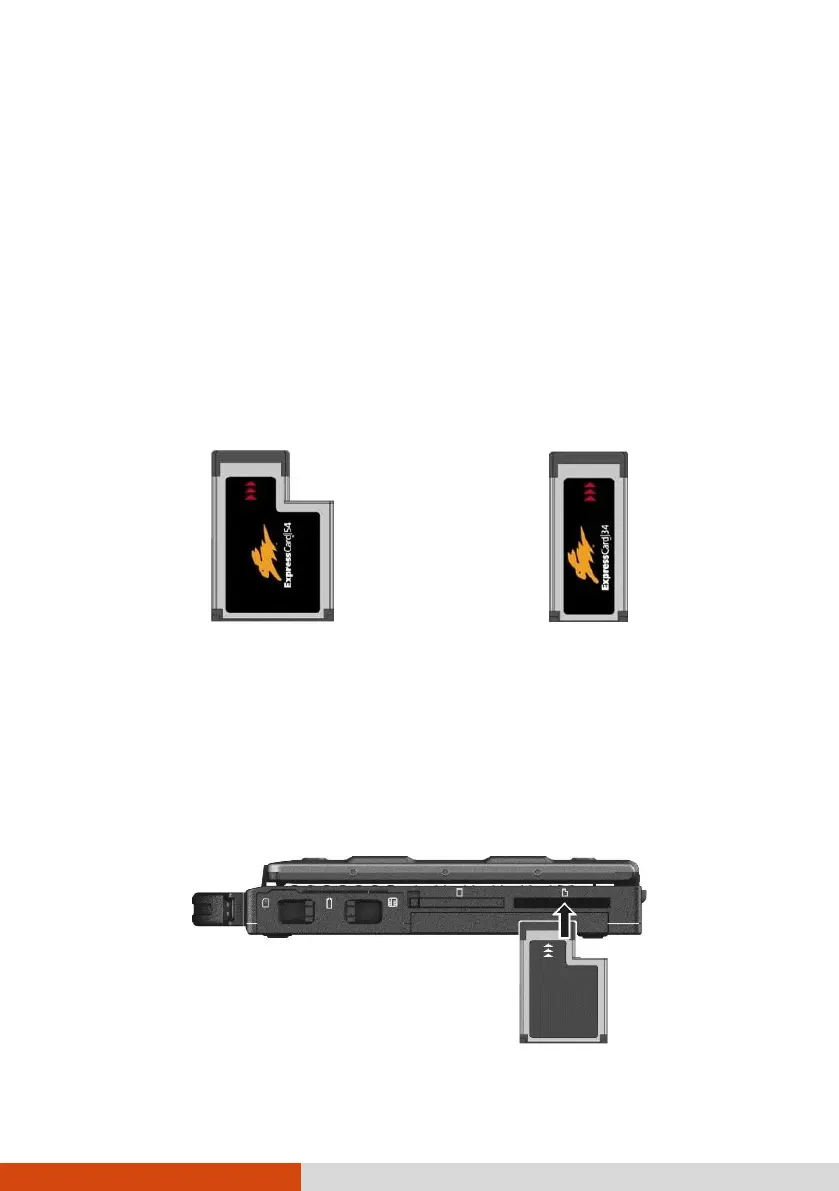

Shown next are the appearances of ExpressCards for your reference.
ExpressCard/54 ExpressCard/34
To insert an ExpressCard:
1. Locate the ExpressCard slot on the right side of the computer.
2. Slightly push the dummy card to release and then pull it out of the slot.
3. Slide the ExpressCard, with its label facing up, all the way into the slot until
the rear connectors click into place.

Getac S400 Specifications

Power

ac adapter power	90W
ac adapter voltage	100-240V
ac adapter frequency	50/60Hz

Battery

battery capacity	8700mAh
battery type	9 cells Li-Ion

Temperature

operating temperature range	0°C to 60°C
storage temperature range	-40°C to 71°C
humidity	95% RH, non-condensing

System Memory

default memory	4GB DDR3
maximum memory	8GB
memory type	DDR3

Display

display size	14 inches
display resolution	1366 x 768
optional display brightness	800 NITs

Ports & Interfaces

usb 3.0 ports	3
usb 2.0/eSATA combo port	1
serial port	RS-232 x 1

Weight and Dimensions

dimensions	348 x 258 x 49.2 mm
weight	2.9 kg
