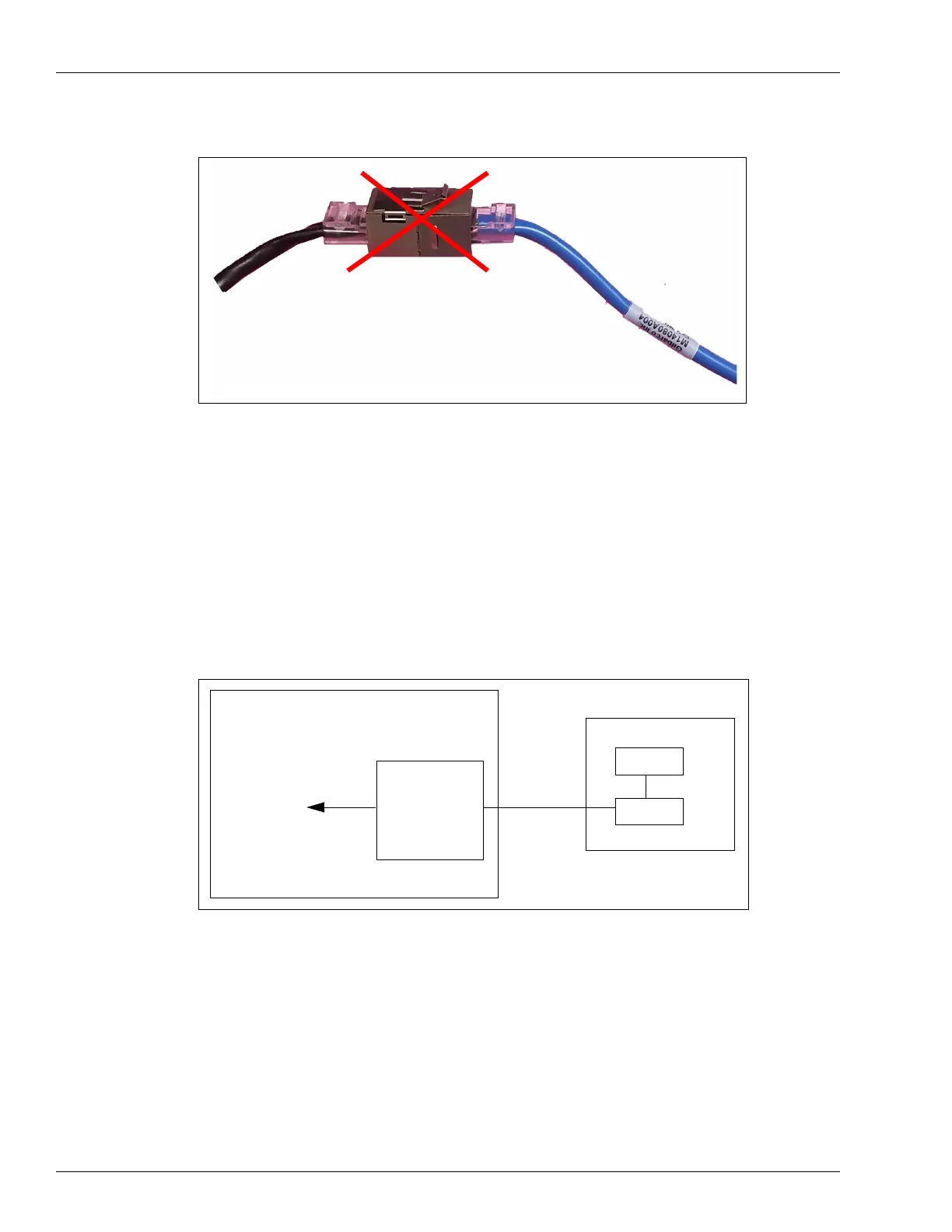

Figure 1-4: Do Not Use Couplers
Using Pre-existing FlexPay Connect v1
Sites equipped with FlexPay Connect v1 do not require any hardware upgrade in the
backroom. These sites can continue to use the existing BRCM.
Replace the Ethernet cable with the M14080A004 Cable provided in the kit to connect to the
pre-existing DCM.
Note: DCM3 is not compatible with a
BRCM (GLRE).
Figure 1-5: Using Pre-existing FlexPay Connect v1 - Backroom Hardware
BRCM
DCM1
CAT5
Dispenser
To Router
Backroom
Two-wire
CAT5
Omnia
BRCM &
TBM2
OR
