Retrieving Logs Omnia Maintenance Through USB
MDE-5369G FlexPay™ IV (with Omnia V04.07) Programming and Service Manual · March 2021 Page 6-7
Retrieving Omnia Configuration (NO Network Reset)
To retrieve Omnia configuration (NO Network Reset), proceed as follows:
1 Open OmniaOp.json file with a Text Editor (e.g. Notepad++).
2 Enter the information as shown in the following figure:

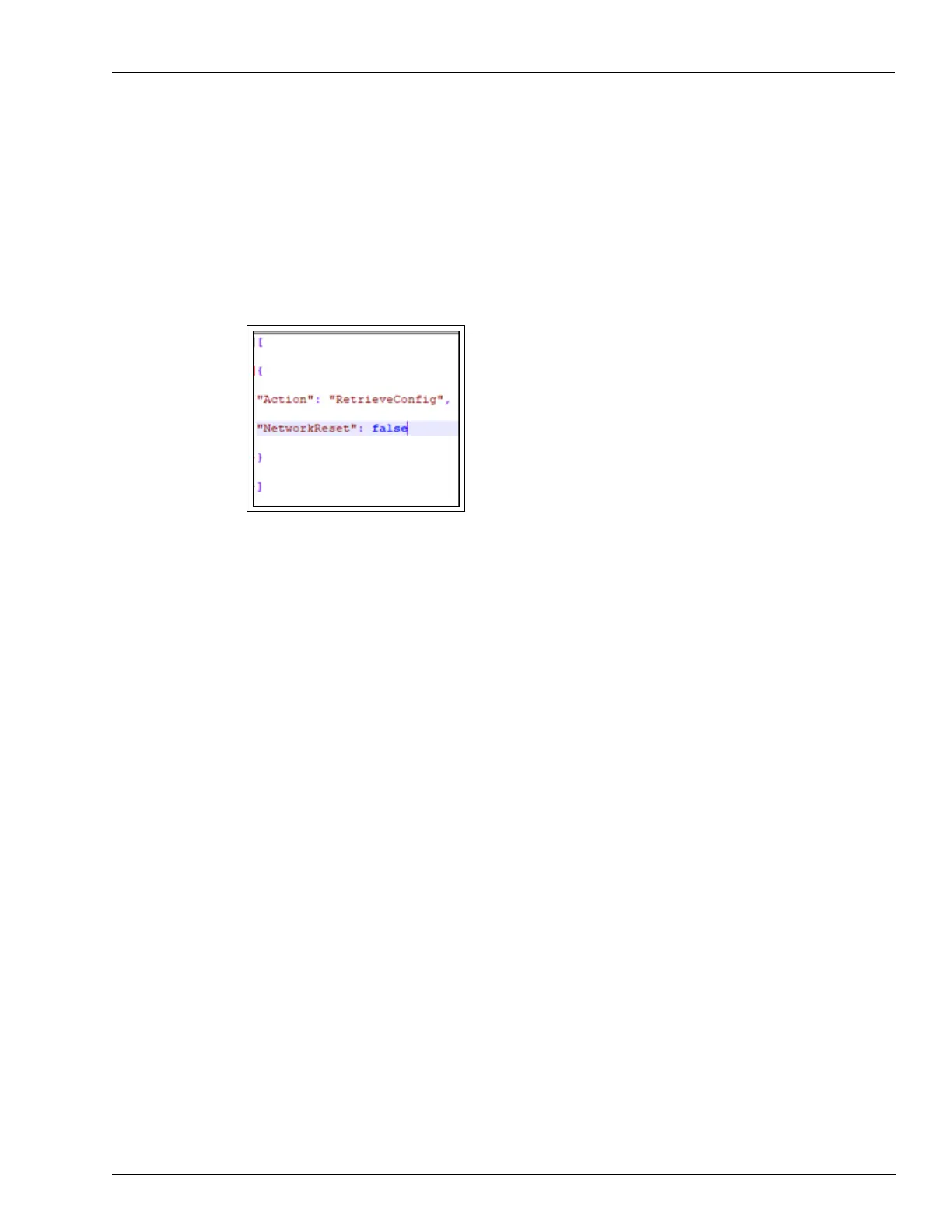

Figure 6-9: Omnia Configuration Retrieval
3 Save the file.
4 Plug the USB drive into the Omnia board. Depending on the success or failure of the
operation, LEDs start glowing as follows:
• LED D32 goes Solid RED, LED D29 starts blinking slowly.
• LED D29 goes Solid GREEN, indicating that the operation is completed successfully.
• LED D29 will start blinking fast, indicating that the operation failed.
If operation is successful, LED D32 goes OFF. If the operation fails, LED D32 will start
blinking together with LED D29.
5 Remove the USB drive.
