GILES GBF-70 - Electrical Connection Diagram

8

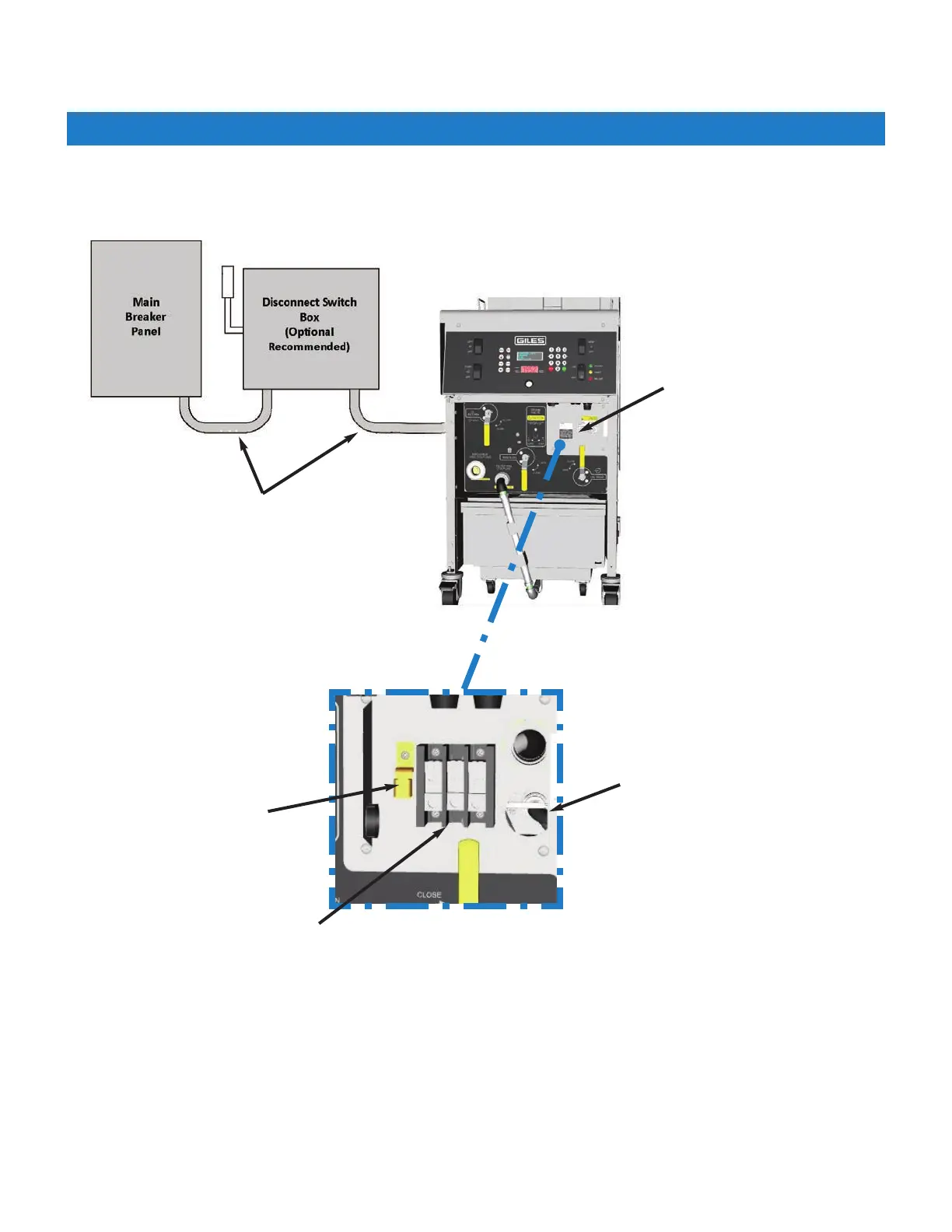

GBF-70 Fryer
2.05.1 Electrical Connection Diagram
Flexible Conduit
Connect flex conduit for
incoming power supply at
this opening.
Installation
Service Box with
Cover
Distribution Block:
Supply power
connects this side.
Ground Lug
Each fryer unit in a banked battery system requires a completely separate electrical service, connected in like
manner.
