ISO 9001 Registered • Committed to Quality
2750 Gunter Park Drive West • Montgomery, AL 36109 USA
Phone: 334.272.1457 • Toll Free: 800.554.4537 (USA & Canada Only)
Fax: 334.239.4117 • Website: www.gfse.com
Printed in USA, Form No.66320 (Rel. Date: Nov.2019, Rev. A)

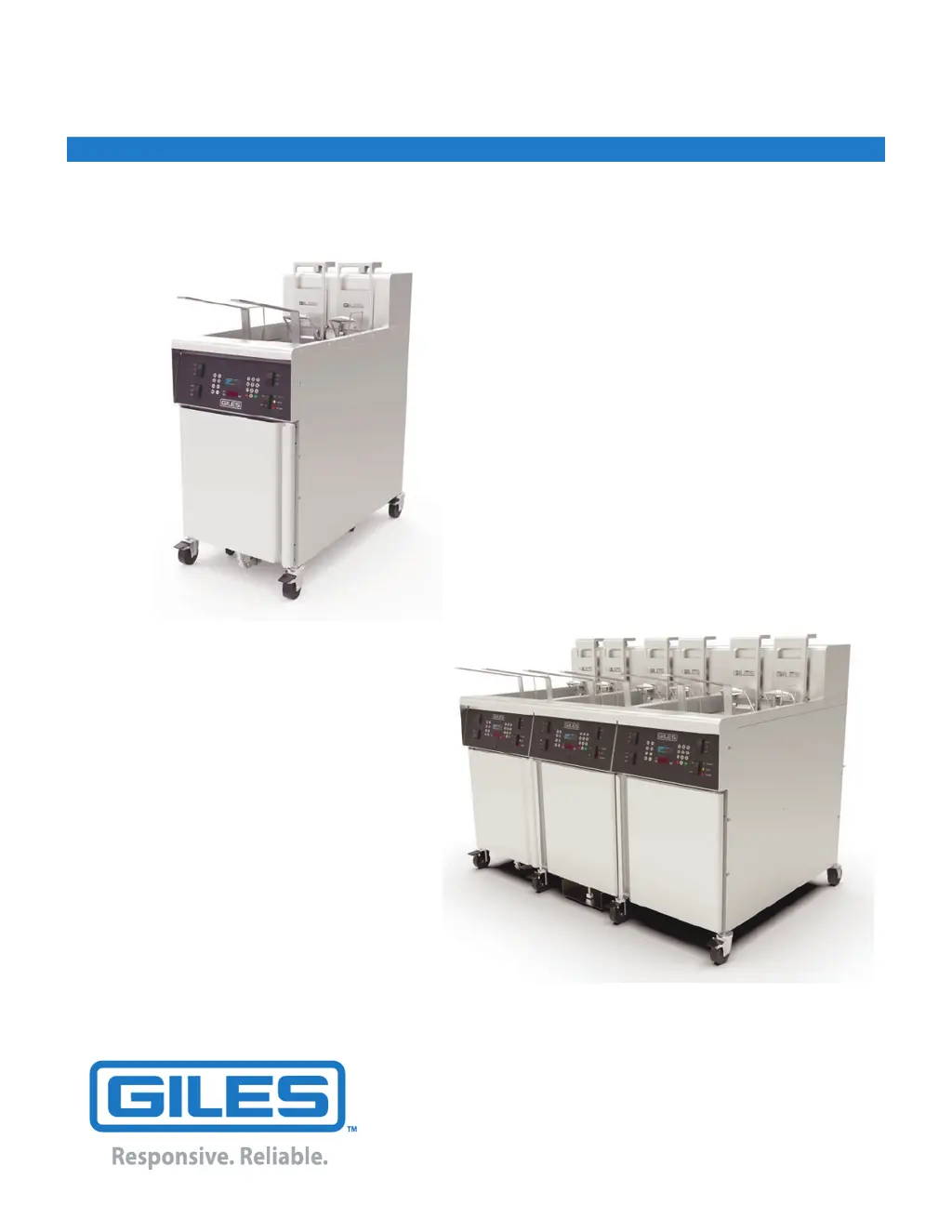

GBF-70 Electric Fryer
Operations & Service Manual
Banked Units
Double or Triple
Single Unit

Table of Contents

Questions and Answers

  • C
    Christopher ShortSep 13, 2025
    What causes the GILES Fryer high limit safety to trip before reaching setpoint?
    • K
      Kathryn KnoxSep 13, 2025
      If the high-limit safety trips on your GILES Fryer before reaching the setpoint, with the POWER light on, HEAT switch in the HEAT position, amber HEAT light on, controller HEAT indicator on, and the control panel red HI-LIMIT light on, it could be due to a failed Hi-Limit thermostat, a misaligned Hi-limit probe that's too close to the heating element, a power line spike causing a false hi-limit trip, or cold oil causing a false Hi-Limit during initial heating. For a failed thermostat, misaligned probe, or power line spike, you should call for service. Continuously stirring while heating cold oil will help prevent the issue.
  • E
    Elizabeth LeonAug 25, 2025
    Why is the cooking oil smoking in my GILES Fryer?
    • B
      brandon49Aug 25, 2025
      If the cooking oil in your GILES Fryer is smoking, it could be due to several reasons. First, the oil might be old and needs replacing. In this case, remove the old oil, perform a boil-out, and refill with fresh oil. Second, the cooking temperature might be too high; verify that you're using the proper temperature setting for the food item. Third, the heating elements could be dirty, requiring a boil-out procedure to clean the vat. Finally, the oil level might be low; maintain the oil level between the FULL and ADD lines.
  • J
    jamie52Aug 25, 2025
    Why is the oil not circulating in my GILES GBF-70 during filtering?
    • G
      Gary WarnerAug 26, 2025
      If the oil in your GILES Fryer doesn’t circulate or return to the refill vat when filtering, there could be several reasons. First, the oil might be too cold to pump; manually remove the thick oil from the pan. Second, the filter pan might be packed with excessive cooking residue, preventing the pump from drawing; clean the filter pan and refresh the filter media. Third, the filter pan might be assembled incorrectly; verify that the pan is assembled properly. Finally, air might be leaking into the filter plumbing; verify that the filter pan hose connection is secure.
  • T
    Tracy MezaAug 26, 2025
    What causes oil circulation problems during filtering in my GILES Fryer?
    • L
      Lauren HollowayAug 26, 2025
      If the oil in your GILES Fryer doesn’t circulate or return to refill vat when filtering, and you always refer to the Controller Upper Display for alarm error messages and/or operational prompts & instructions, it means that the automated OIL RETURN valve has failed to OPEN, causing the pump to shut down due to high pressure. A service technician is required.
  • C
    charles32Sep 14, 2025
    What to do if the GILES GBF-70 filter pump starts, runs briefly, then stops?
    • E
      Elizabeth BriggsSep 14, 2025
      If the filter pump on your GILES Fryer starts, runs briefly, then stops, it could be due to the sensor shutting down the pump due to high pressure (caused by pumping against a closed valve or solid blockage) or the filter pump motor overheating and tripping the internal thermal overload safety shut-off. Verify valve operation, and call for service as required. Allow the pump to cool for about 45 minutes to auto-reset the overload safety, then retry. If this fails or continues happening, call for service.
  • M
    Michael WestSep 23, 2025
    What to do if connected to bulk waste oil handling system and waste oil will not pump from filter pan to collection tank in GILES Fryer?
    • L
      Lawrence AdkinsSep 23, 2025
      If your GILES Fryer is connected to a bulk waste oil handling system and waste oil will not pump from the filter pan to the collection tank: * Ensure the WASTE OIL valve inside the cabinet is in the OPEN position. The pump should start after pressure is relieved. * If the oil line to the collection tank is clogged, call the system dealer for service. * The bulk collection tank may be full. Call the waste oil collection company for pick-up service.
  • R
    Rebecca JimenezSep 6, 2025
    Why is my GILES Fryer not heating up properly?
    • A
      Anne VincentSep 6, 2025
      If your GILES Fryer isn't heating, but the control panel power light is on, the heat switch is in the heat position, the amber heat light is on, and the controller heat indicator is on, the heating element circuit breaker may have tripped. Reset the circuit breaker, which is located on the rear of the unit behind a removable cover.
  • J
    Jonathan HarringtonSep 7, 2025
    What to do if cooking oil is smoking in GILES Fryer?
    • B
      Bianca LewisSep 7, 2025
      If the cooking oil in your GILES Fryer is smoking, it could be due to several reasons: * The oil may be old and used for too long. Remove the oil, perform a boil-out, and refill with fresh oil. * The cooking temperature might be too high. Verify the proper temperature setting for the food item. * The heating elements could be dirty. Clean the vat using a boil-out procedure. * The oil level may be too low. Maintain the oil level between FULL & ADD.
  • C
    Christopher PhillipsSep 23, 2025
    What to do if Top-Off doesn’t pump oil to vat in GILES Fryer connected to bulk fresh oil supply system?
    • J
      Julia WhiteSep 23, 2025
      If your GILES Fryer is connected to a bulk fresh oil supply system and the Top-Off doesn’t pump oil to the vat: * The bulk oil fresh supply may be exhausted. Service the bulk fresh oil system to replenish the supply. If the issue persists, there may be an internal issue with the bulk system, the bulk system internal pump may have failed, the supply line may be clogged, or the electrical connections between the bulk system and the fryer may have malfunctioned. In any of these cases, you should call the system provider for service.
  • M
    Melissa WoodsAug 31, 2025
    How to unclog the drain in my GILES Fryer's cook vat?
    • S
      sarah79Aug 31, 2025
      If the cook vat in your GILES Fryer does not drain, it could be due to excessive crumbs or cooking residue clogging the drain. Use the provided round-bristle brush to clear the drain.

Summary

Limited Warranty Information

Safety Guidelines and Precautions

Safety Overview

General introduction to safety information, symbols, and usage notes.

Specific Safety Precautions

Detailed safety guidelines for operating and servicing the fryer.

Introduction to the GBF-70 Fryer

Construction Details

Details on the materials and build of the fryer unit.

Standard Features

Overview of key features integrated into the standard fryer model.

Optional Features

Description of available add-on features for the fryer.

Specifications and Dimensions

Technical specifications including dimensions, certifications, and capacities.

Installation Procedures

Appliance Location

Guidelines for selecting a suitable and safe installation site for the fryer.

Unpacking the Fryer

Procedures for safely removing the fryer from its shipping packaging.

Electrical Requirements and Connections

Information on power supply needs, specifications, and wiring procedures.

Fryer Options Installation

Explanation of installing optional features like oil management and top-off systems.

Ventilation and Restraint Device

Requirements for ventilation installation and securing the fryer unit.

Finalizing Installation and Testing

Steps to complete installation and initial functional checks.

Overview of Fryer Components

Control Panel Description

Detailed description and diagram of the fryer's control panel.

Lower Cabinet Components

Identification of components within the fryer's lower cabinet.

Filter Pan Assembly Details

Explanation of the filter pan's components and function.

Basket and Oil Systems

Overview of basket lifting and oil storage systems.

Included Accessories

List and description of accessories provided with the fryer.

Not Provided Accessories

List of recommended accessories that are not included.

Fryer Operation Guide

The Computer Controller Operations

Comprehensive guide to operating the dual-timer computer controller.

Cooking Procedures

Detailed steps for cooking food items using the fryer.

Optional Oil Level Top-Off System

How to use the feature for maintaining oil levels.

Filtering Used Cooking Oil

Instructions for filtering and reconditioning cooking oil.

Fryer Shutdown Procedures

Standard and emergency procedures for turning off the fryer.

Cleaning and Maintenance Procedures

Removing and Disposing of Waste Cooking Oil

Process for safely draining and disposing of used cooking oil.

Boil-Out Procedure for Fry Vat Cleaning

Method for deep cleaning the fryer vat using the boil-out process.

Cleaning Filter Pan and Refreshing Media

Procedures for cleaning the filter pan and replacing filter media.

Troubleshooting Common Issues

Temperature Control System Problems

Solutions for issues related to fryer heating and temperature regulation.

On-Board Oil Filtration Problems

Troubleshooting common issues with the oil filtration system.

Oil Top-Off System Issues

Diagnosing and resolving problems with the oil top-off feature.

Filter Pump Problems

Identifying and fixing issues with the filter pump operation.

Basket Lift System Issues

Troubleshooting common problems with the basket lift mechanism.

Replacement Parts List

Parts Ordering and Service Information

How to order replacement parts and obtain service.

Control Panel Parts

List of parts for the fryer's main control panel.

Lower Cabinet Parts

Parts list for the main unit's lower cabinet components.

Plumbing Components

List of plumbing parts for single and double bank fryer units.

Rear Cabinet Parts

Parts diagram and list for the rear cabinet of single and double units.

Fry Vat Assembly Parts

Components of the fryer vat assembly.

Filter Pan Assembly Parts

Breakdown of the filter pan and its associated parts.

Appendix A: Optional KITCHENTRAC Connectivity

Connecting WiFi Board to Wireless Router

Steps to connect the fryer's WiFi module to a wireless router.

Establishing Communication with KitchenTrac

Procedure for establishing communication with the KitchenTrac server.

WiFi Components Identification

Identification of the WiFi hardware components.
