GO Systemelektronik BlueBox User Manual

BlueBox
GO Systemelektronik GmbH Faluner Weg 1 24109 Kiel Germany Tel.: +49(0)431-58080-0 Fax: -58080-11
Page 10 / 77
www.go-sys.de info@go-sys.de

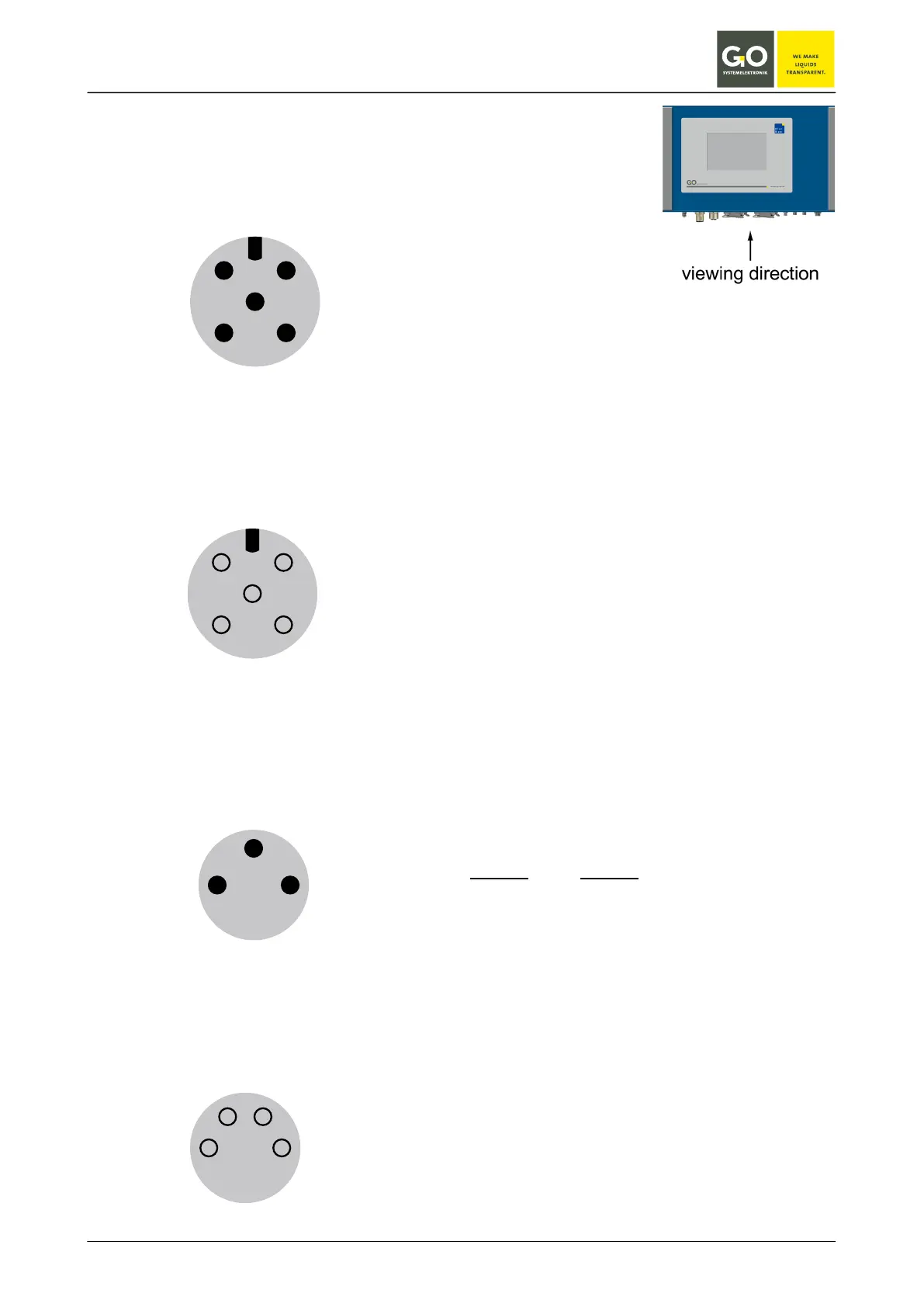

3.21 Connector pin assignment at the BlueBox
Power supply 24 V DC
panel plug (M12, male)
3 +24 V DC
4 GND 24 V
CAN-bus
panel jack (M12, female)
1 CAN-H
2 CAN-L
3 +24 V DC
4 GND 24 V
RS-232 or RS-485
panel plug (M8, male)
RS-232
1 GND GND
RS-485
3 RX RX/TX-
4 TX RX/TX+
Current output 4 – 20 mA (optional)
panel jack (M8, female)
1 +24 V DC
2 I-Return
43
1 2
34
1
4
3
2
1
