8 The menu operation
8.1 Parameter display
8.1.1 Single parameter display

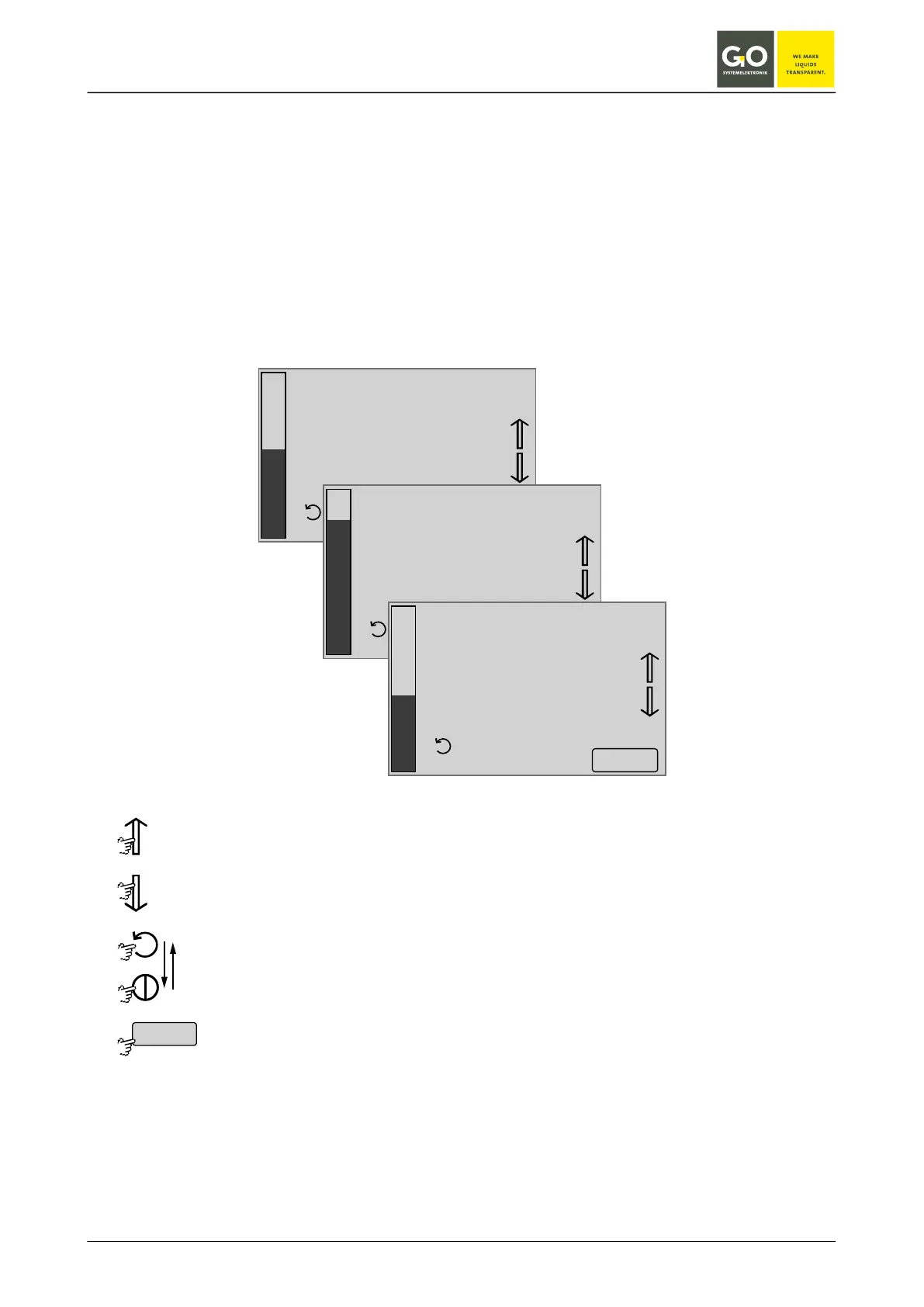

Here, as an example, the Parameter display of an oxygen sensor with integrated temperature sensor and a
ph sensor.
The measured value of a sensor is displayed for 6 s, thereafter the display switches in a cycling way to the
display of the next sensor.
1. Oxygen
2. Temperature
3. pH value
Error messages appear instead of the parameter (see Appendix G - Status and error messages).
Cycling on: In the upper right corner time and date is displayed.
Cycling off: In the upper right corner time and date of the last measurement is displayed.
When there is no user inactivity in all other menus for 2 minutes, the software switches back to the Parame-
ter display.
The bar graph on the left side of the display shows the current measured value.
Menu
0
20
10 mg/l
Oxygen
09:19:39
10.07.10
Menu
0
14
11 pH
09:19:39
10.07.10
pH value
Menu
0
60
18°C
Temperature
09:19:39
10.07.10
Switches to the Parameter display of the previous sensor.
Switches the cycling of the Parameter display off.
Switches to the Parameter display of the next sensor.
Switches the cycling of the Parameter display off.
Switches the cycling of the Parameter display on and off.
The button is also a status indicator.
Switches to the Main menu.
Setting via Display menu 8.2.1.6
