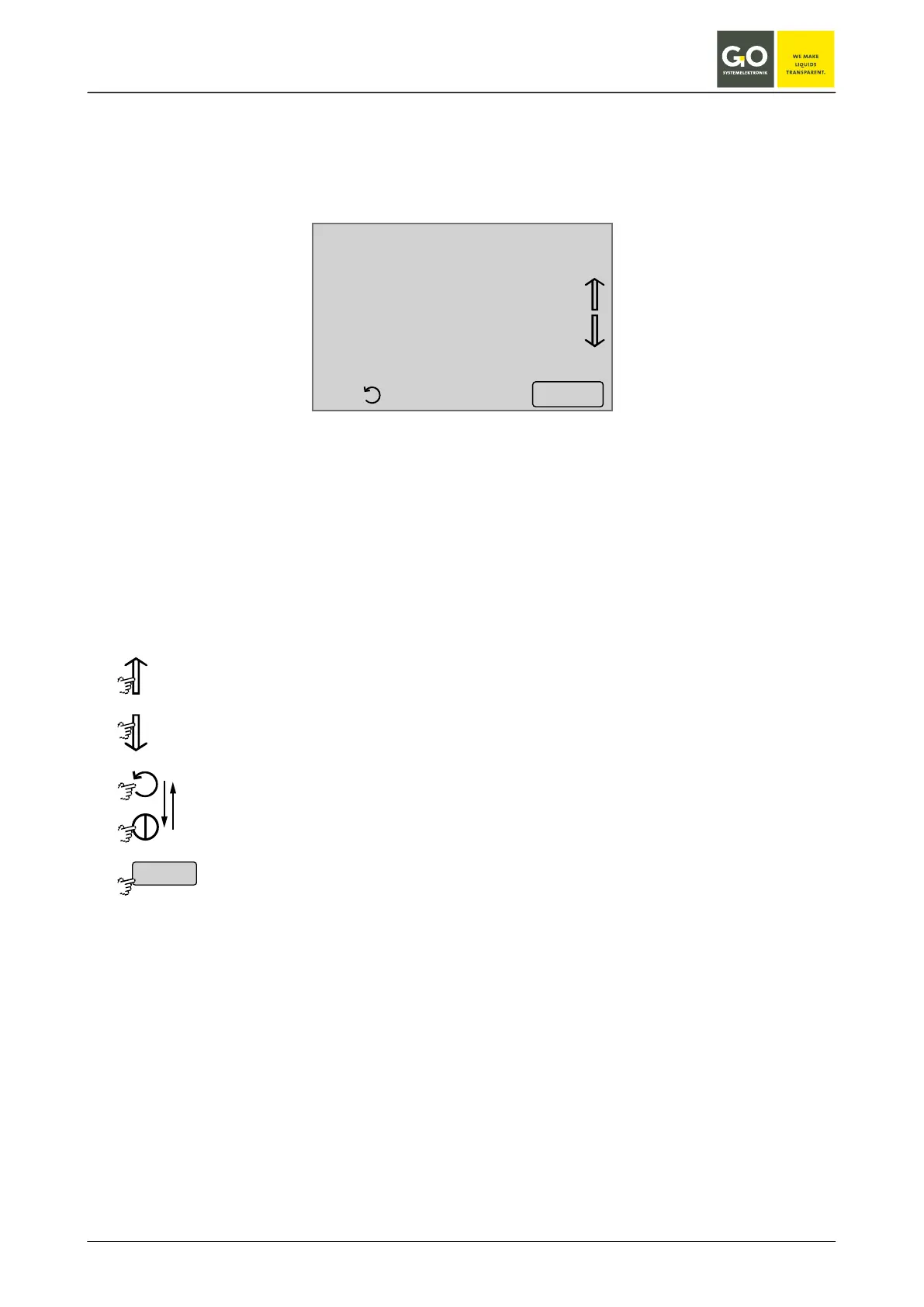

8.1.2 Multiple parameter display
Here, as an example, the Parameter display of more than 6 sensors.
The measured values of a the first 6 sensors are displayed for 6 s, the order is alphabetical.
Thereafter the display switches in a cycling way to the display of the next sensors.
There are three ways of displaying the parameters (see display menu 8.2.1.6):
The parameters of all sensors are displayed.
Only the parameters of selected sensors and the status of selected actuators are dis-
played. Selection via 8.2.3 Sensor menu and 8.2.5.1 actuator menu
The parameters of all sensors and the status of all actuators are displayed.
In comparison with the single parameter display error messages are displayed shortened.
When there is no user activity in all other menus for 2 minutes, the software switches back to the Parameter
display.
In the upper left corner you see the page number of the current display and the number of ads displayed (in
this case 1/2).
In the upper right corner time and date is displayed.
Menu
1/2 09:19:39
10.07.10
oxygen
10 mg/l
temperature outside
18 °C
temperatur inside
22 °C
air pessure
1006.91 hPa
humidity
39.8 %
pH value
11 pH
Switches to the Parameter display of the previous sensor.
Switches the cycling of the Parameter display off.
Switches to the Parameter display of the next sensor.
Switches the cycling of the Parameter display off.
Switches the cycling of the Parameter display on and off.
The button is also a status indicator.
Switches to the Main menu.
Menu
Setting via Display menu 8.2.1.6
