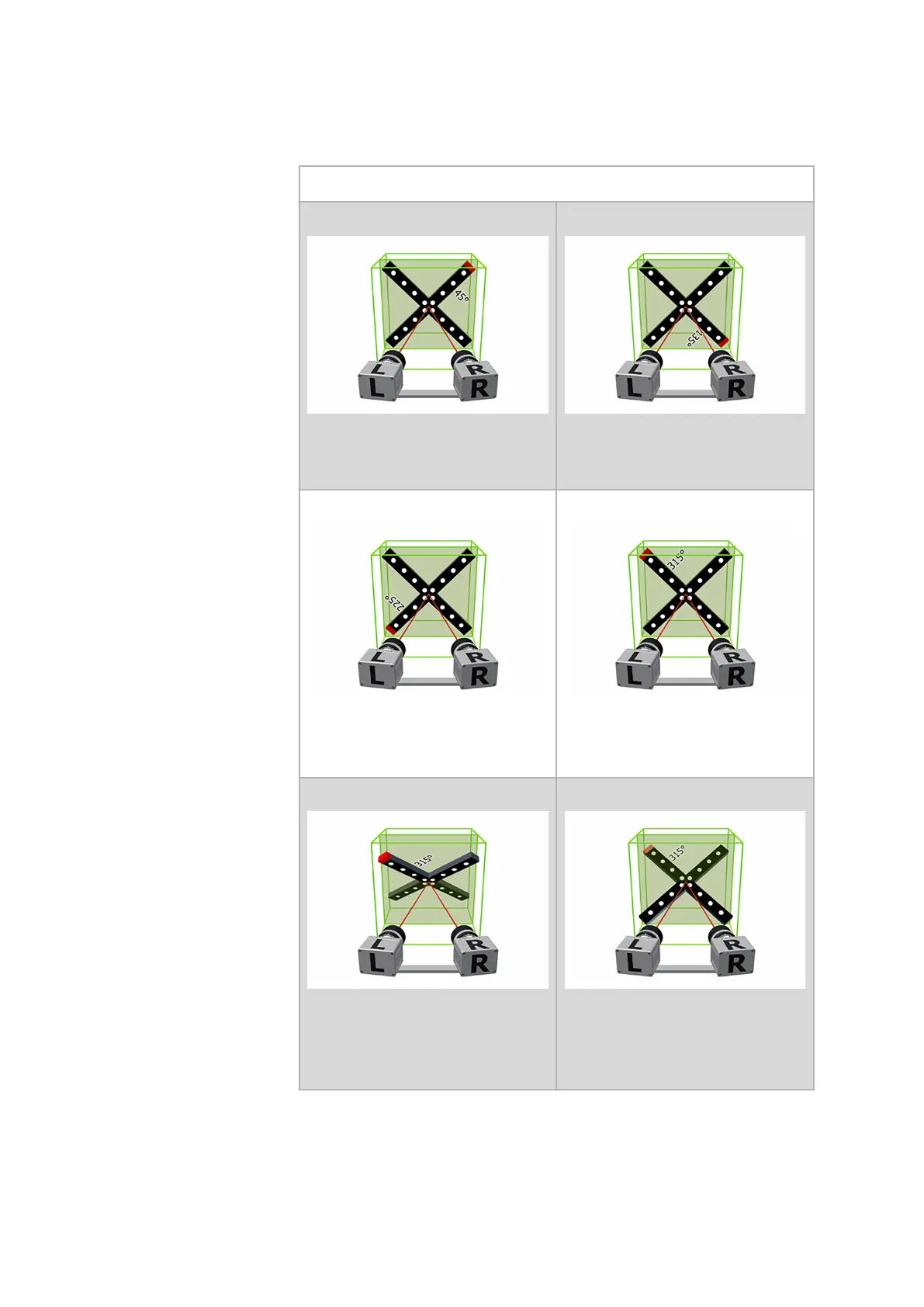

Single steps for calibrating the ARAMIS sensor using a calibration cross
Steps for the coded calibration cross
Step 1:
•
Center of the measuring volume
•
Cross position 45°
Step 2:
•
Center of the measuring volume
•
Cross position 135°
Step 3:
•
Center of the measuring volume
•
Cross position 225°
Step 4:
•
Center of the measuring volume
•
Cross position 315°
Step 5:
•
Center of the measuring volume
•
Cross position 315°
•
Top tilted 40°
Step 6:
•
Center of the measuring volume
•
Cross position 315°
•
Bottom tilted 40°
Calibrate the Sensor
