7.4 Adjust the Camera Tilt Angle
Requirements:
•
During the adjustment of the slider distance, you already roughly
adjusted the tilt angle.
•
The large handle is not yet fixed.
Procedure:
1. To adjust the horizontal position of the camera, use the fine-adjust‐
ment screw. Adjust the horizontal line of the cross hairs in the live view
to the projected laser point.

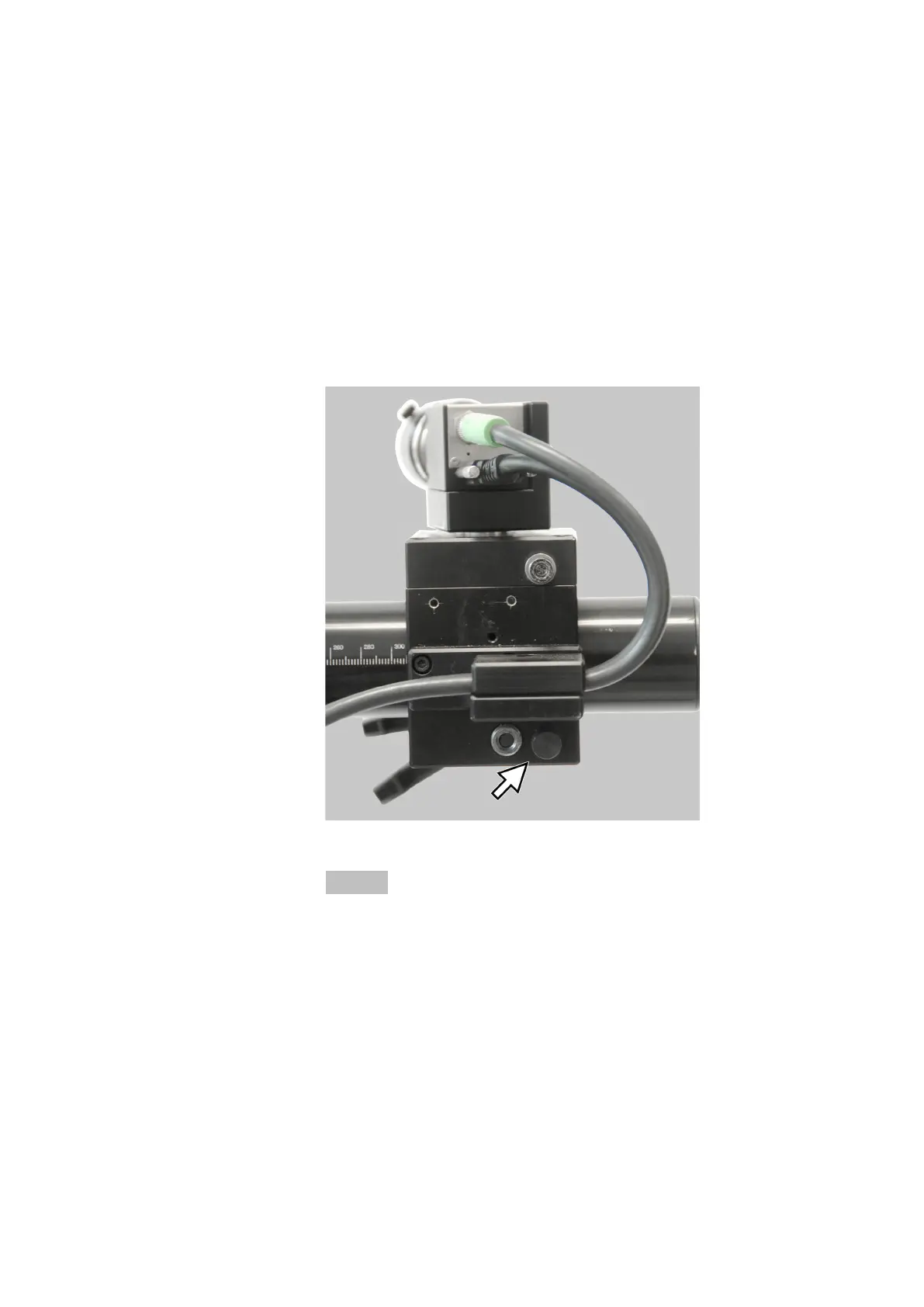

Fig. 12: Fine-adjustment screw (adjusting the camera tilt angle )
Info
If the fine-adjustment is at the end of its adjustment range, you need
to set it to its center position first. Adjust the small handle to its center
position by means of the fine-adjustment screws for the camera tilt
angle.
Set Up Sensor
0000001503_002_EN_02-12-2019 Page 25 (56)
