GOM ARAMIS - Page 49

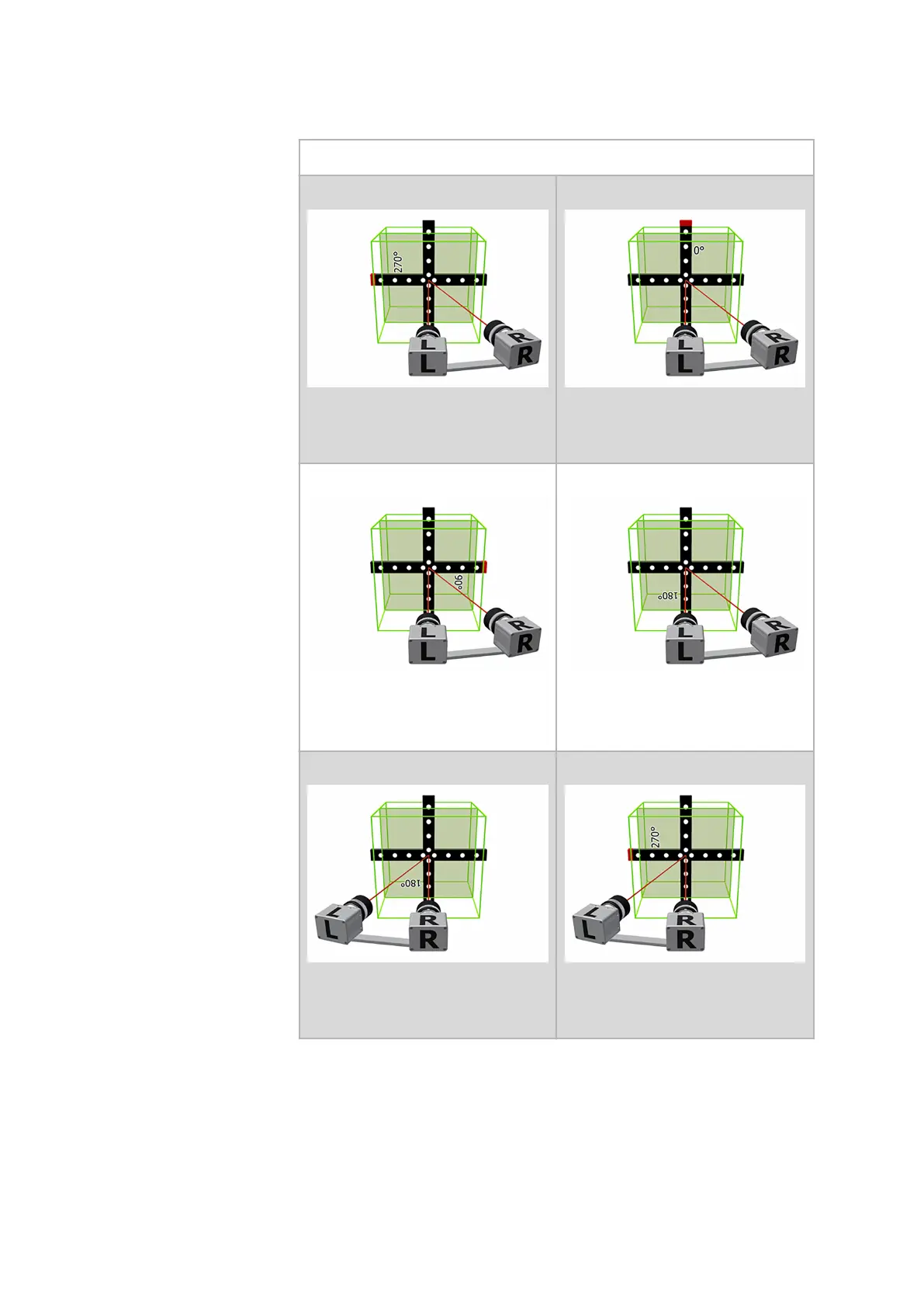

Steps for the coded calibration cross
Step 13:
•
Center of the measuring volume
•
Cross position 270°
Step 14:
•
Left camera normal
•
Cross position 0°
Step 15:
•
Left camera normal
•
Cross position 90°
Step 16:
•
Left camera normal
•
Cross position 180°
Step 17:
•
Right camera normal
•
Cross position 180°
Step 18:
•
Right camera normal
•
Cross position 270°
Calibrate the Sensor
