Installation
NON-HAZARDOUS AREA HAZARDOUS AREA

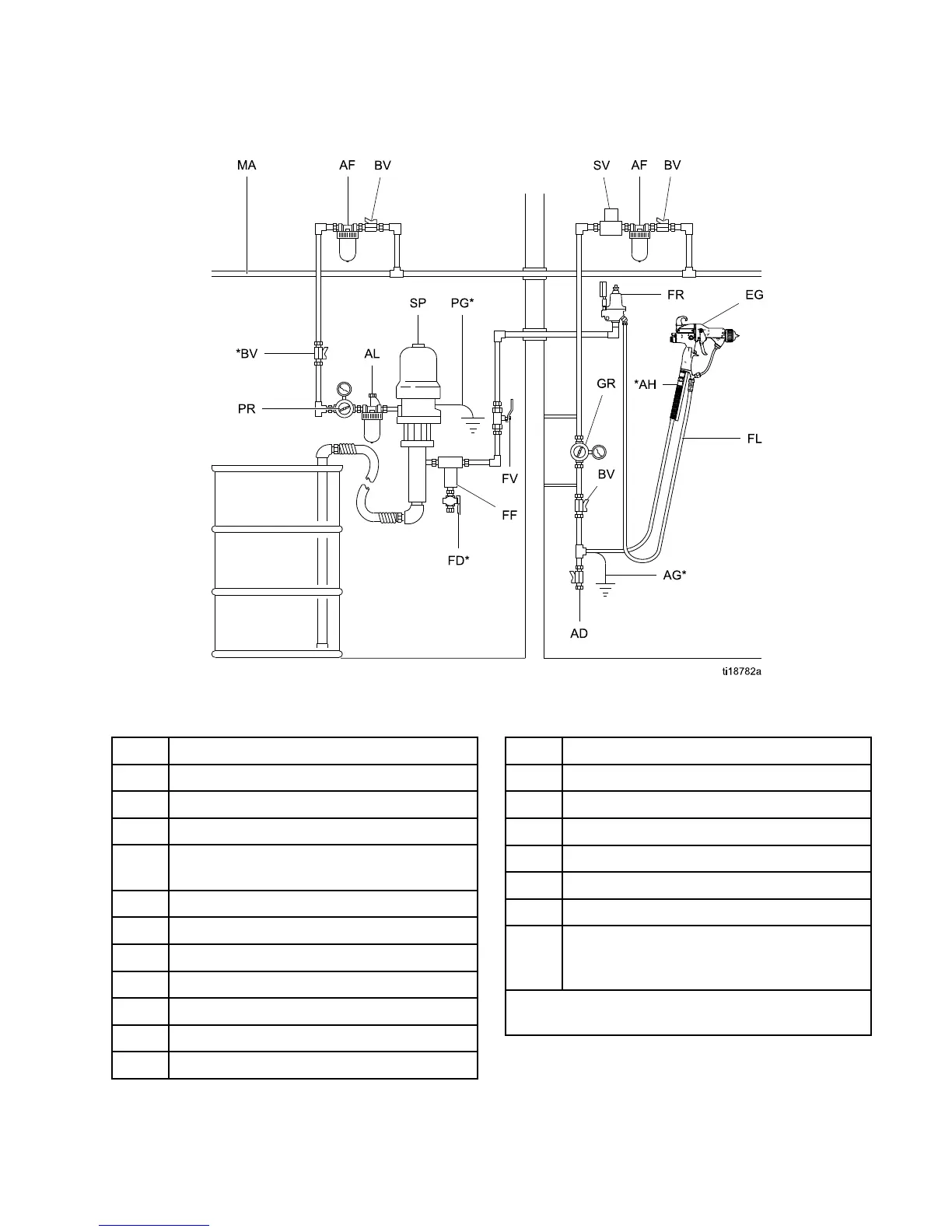

Figure
10 Typical Installation
Typical Installation Key
Item Description
AD Air Line Drain Valve
AF
Air Filter/Water Separator
AG* Gun Ai
rHoseGroundWire
AH* Graco Grounded Air Hose (left-hand
threads)
AL Pum
p Air Line Lubricator
BV* Pump Bleed-Type Air Shutoff Valve
EG Electrostatic Air Spray Gun
FD
*
Fluid Drain Valve
FF Fluid Filter
FL
F
luid Supply Line
FR Fluid Pressure Regulator
Item Description
FV
Fluid
Shutoff Valve
GR Gun Air Pressure Regulator
MA
Main Air Supply Line
PG* Pump
Ground Wire
PR Pump Air Pressure Regulator
SP Sup
ply Pump
SV* Ventilation Fan Interlock Solenoid Valve.
NOTE: The solenoid valve is not offered
as a Graco accessory.
* These items are required for safe operation. They
must be purchased separately.
3A2494E
17
