Parts

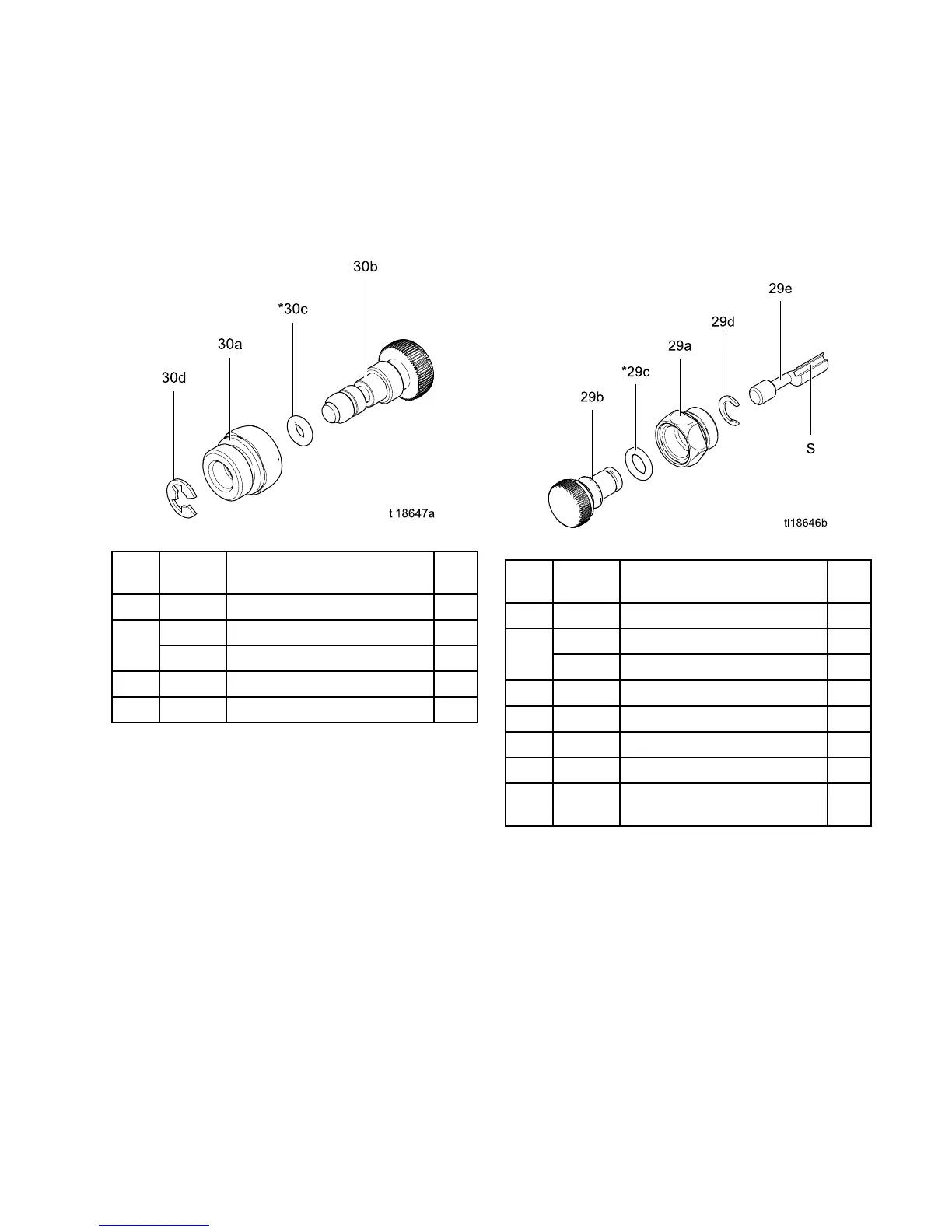

Fan Air Adjustment Valve Assembly
Part No. 24N63
4 Fan Air Adjustment Valve Assembly
(shown)
Part No. 24N732 Fan Air Adjustment Valve Assembly
(for round spray guns, not shown)
Ref.
No.
Part No. Description
Qty
30a
———
NUT, valve 1
———
STEM, valve
1
30b
———
STEM, valve; round spray only
1
30c*
111504
O-RING
1
30d 24N646
RING, retaining; package of 6
1
* These parts are included in Air Seal Repair Kit
24N789 (purchase separately).
Parts labeled are not available separately.
Atomizing Air Restrictor Valve
Assembly
Part No. 24T304 Atomizing Air Restrictor Valve
Assembly (shown)
Part No. 24N733 Atomizing Air Restrictor Valve
Assembly (for round spray guns, not shown)
Ref.
No.
Part No. Description
Qty
29a
———
HOUSING, valve
1
———
BODY, valve
1
29b
———
BODY, valve; round spray only
1
29c*
111516
O-RIN
G
1
29d 118907
RING, retaining
1
29e
———
STEM, valve
1
29f
———
KNOB, shaft; round spray only
1
29g
———
SETSCREW, knob; round
spray only
1
* These parts are included in Air Seal Repair Kit
24N789 (purchase separately).
Parts labeled are not available separately.
3A2494E 65
