Parts
Ref.
No.
Part No. Description
Qty
36 185103
TUBE, exhaust
;1/4in. (6mm)
ID (shipped lo
ose)
1
40 107460
TOOL, wrench, ball end; 4 mm
(shipped loose)
1
41 276741
MULTI-TOOL (shipped loose)
1
42 24N786
PLUG, restrictor (shipped loose;
for use instead of item 29)
1
43 110231
CLAMP, exha
ust tube (shipped
loose)
1
44 116553
GREASE, dielectric; 1 oz (30
ml) tube (not shown)
1
45 117824
GLOVE, conductive, medium;
package of 12; also available
in small (117823) and large
(117825)
1
Ref.
No.
Part No. Description
Qty
24N603
COVER, gun, 40
and60kV
guns; package
of 10
146
24N604
COVER, gun, 85 kV guns;
package of 10
1
47▲ 179791
TAG, warning (not shown)
1
48▲ 16P802
SIGN, warning (not shown)
1
49 24N730
DIFFUSER, for round
spray gun only; see
Round Spray Assembly, page 55
1
50 24N783
HOOK; inclu
des screw
1
▲ Replacement Danger and Warning labels, tags,
and cards are available at no cost.
* These parts are included in Air Seal Repair Kit
24N789 (purchase separately).
‡ These parts are included in Fluid Seal Repair Kit
24N790 (purchase separately).
■ Gun bodies (Ref. 1) include the barrel gasket (Ref.
28).
NOTE: On 40 kV guns, the o–ring (10★) is not used,
and ferrules (7★) and (8★) are part of the top fitting
(9).

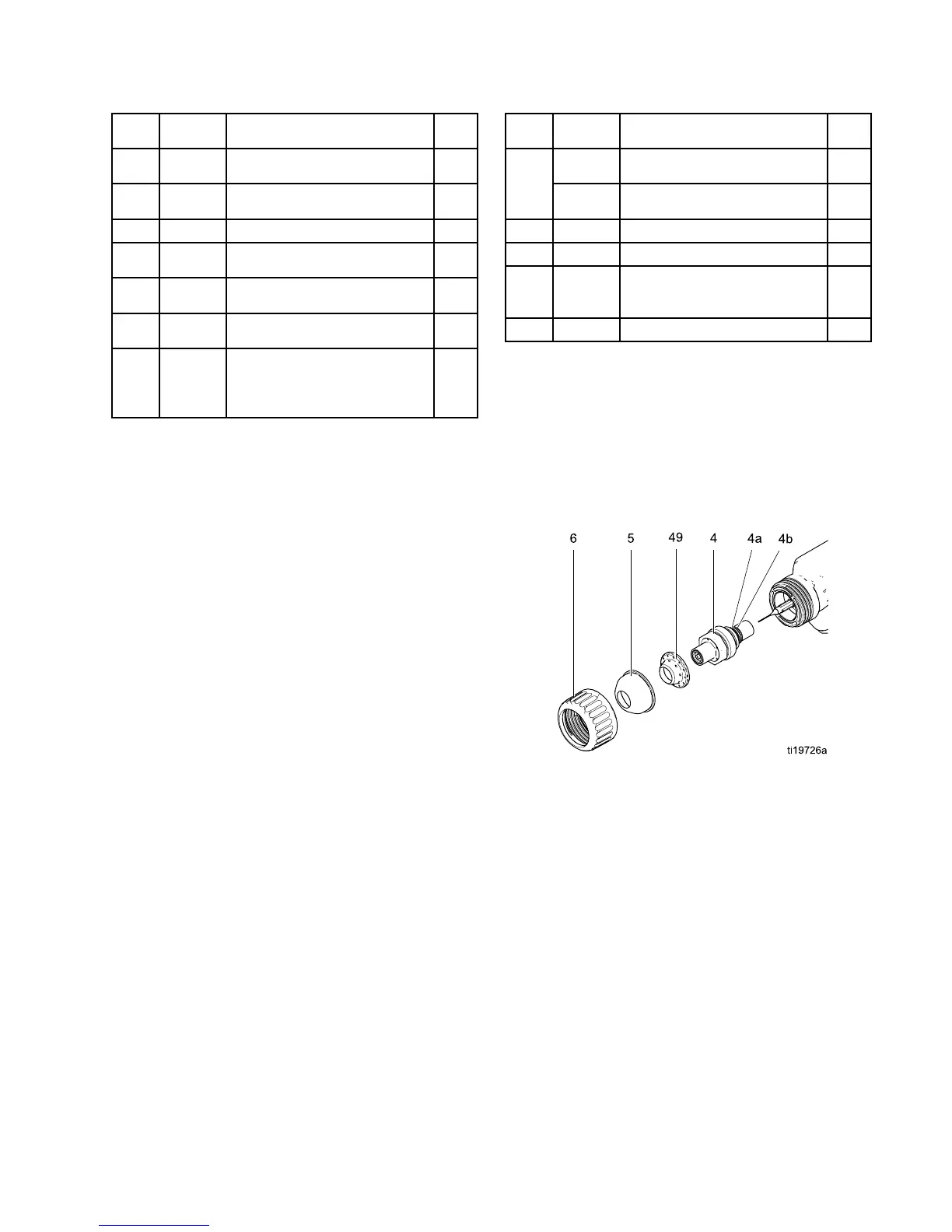

Round Spray Assembly
3A2494E 55
