Graco Pro Xp L40T10 - ES On-Off and Fluid Adjustment Valve

Parts
ES On-Off and F
luid Adjustment Valve

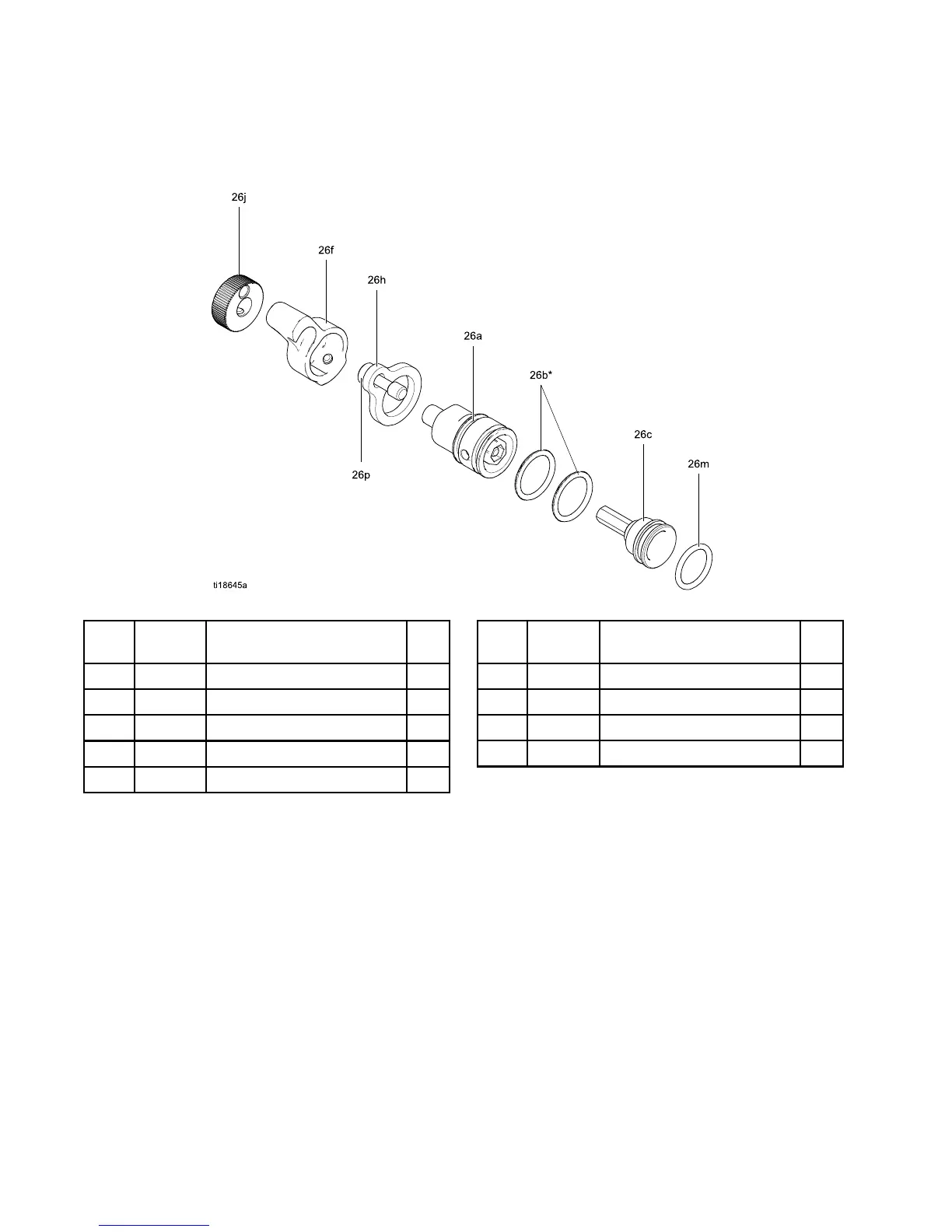

Part No. 24N630 ES On-Off and Fluid Adjustment Valve
Ref.
No.
Part No. Description
Qty
26a
———
HOUSING, valve
1
26b*
15D37
1
O-RING
4
26c
———
PISTON, valve
1
26f
24N649
LEVER, ES on-off
1
26g
———
SCRE
W, set, socket head
2
Ref.
No.
Part No. Description
Qty
26h 24N631 PLATE, retaining 1
26j 24N648
KNOB,
adjustment, fluid
1
26m*
113746
O-RING
2
26p
———
SCREW, captive
1
*Th
ese parts are included in Air Seal Repair Kit
24N
789 (purchase separately).
Par
ts labeled — — — are not available separately.
