Parts

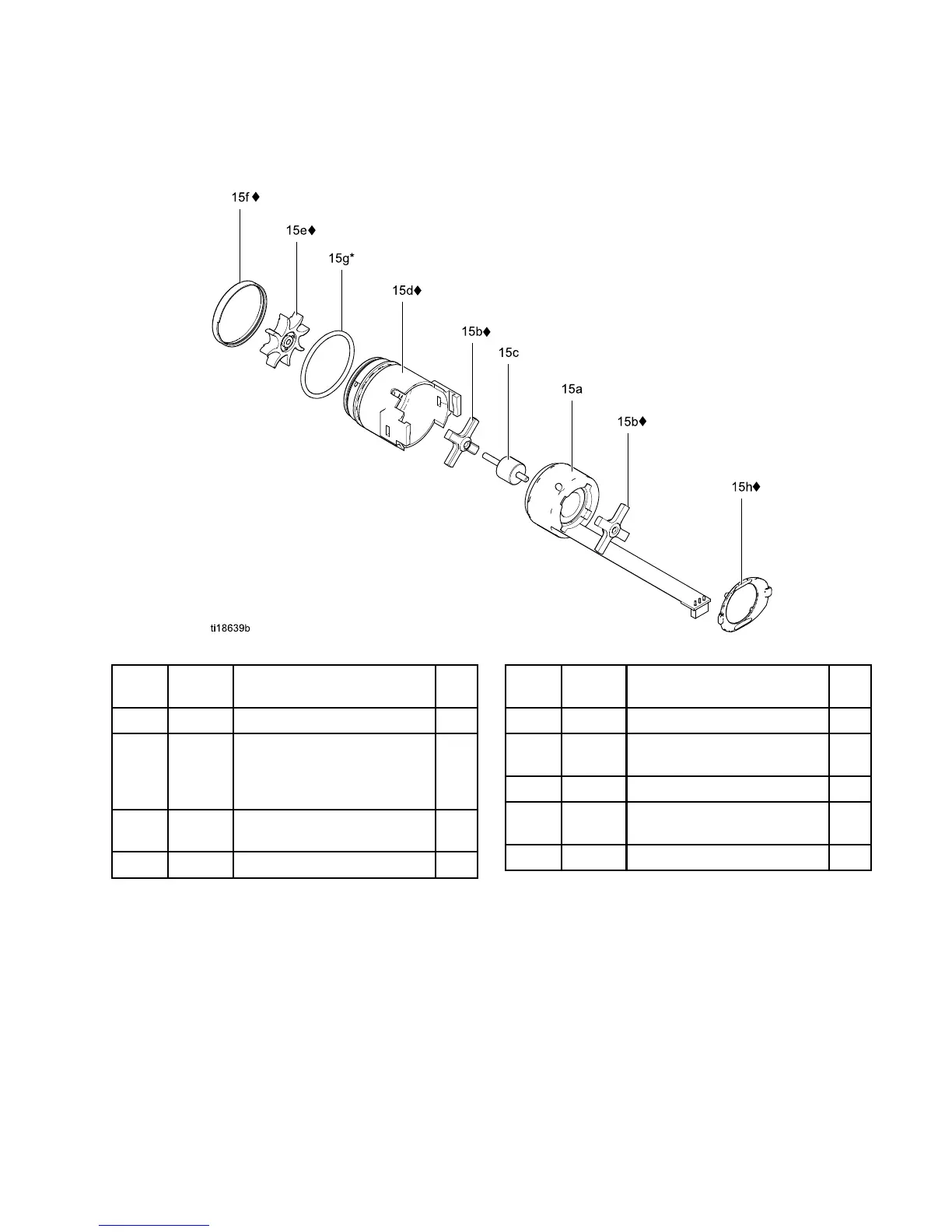

Alternator Assembly
Part No. 24N66
4 Alternator Assembly
Ref.
No.
Part
No.
Descri
ption
Qty
15a 24N705
COIL, alternator
1
15b♦ 24N706
BEARING KIT (includes two
bearings, item 15d housing,
item 15e fan, item 15f cap,
and one item 15h clip)
1
15c 24Y264
SHAFT
KIT (includes shaft
and m
agnet)
1
15d♦ 24N707
HOUSING; includes item 15f
1
Ref.
No.
Part
No.
Descri
ption
Qty
15e♦
———
FAN; part of item 15b
1
15f♦
———
CAP, housing; part of item
15d
1
15g*
110073
O-RING
1
15h♦ 24N709
CLIP
; package of 5 (one clip
incl
uded with item 15b)
1
28♦*
24N699
GASKET, barrel (not shown)
1
* These parts are included in Air Seal Repair Kit
24N789 (purchase separately).
♦ These parts are included in Bearing Kit 24N706
(purchase separately).
Parts labeled — — — are not available separately.
3A2494E 63
