Grandway Optical Instruments Series - Names and Functions of Parts; Front Panel

FHO5000
1
Num.
I
II
III
IV
V
VI
VII
VIII
IX
X
XI

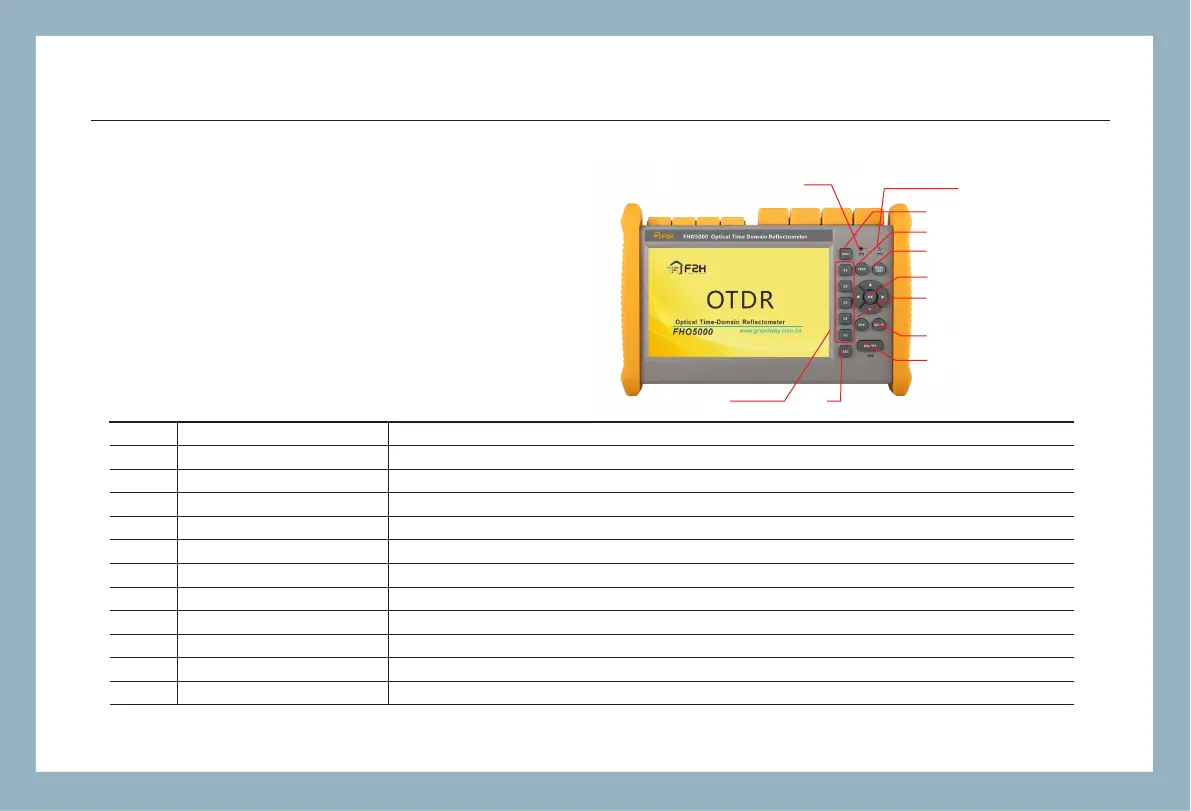

0.1 Front Panel
VI
X
I
XI
IX
V II
IV
II
V
I II
V III
Item
Tag select button(F1-F5)
Direction key
FILE
SETUP
ON/OFF
ESC
MENU
REAL TIME
TEST
Test State Indicator
Power Indicator
Function
Enter relevant menu
Move cursor and confirm
Open Database
Proceed quick set
Turn on/off OTDR
Cancel current menu
Back to menu
Realtime test mode
Averaging test mode
Indicate test state (green-averaging mode, red-realtime mode)
Indicate working state and charging state (Green-working state or fully charged, Red-charging)
0.0 Names and Functions of Parts
