Description of items showed in chart below:
Num
I
II
III
IV
V
VI
VII
Item
Type
Distance
Section
Loss
T. Loss
Slope dB/km
Reflect.dB
Description
Type of event(Attenuation events,
Reflection events and End event)
Distance from start point to event
Distance from this event to last event.
Loss of this event(dB)
Total loss from start event to this event(dB)
Ratio of event loss value(dB)
(from this event to last event)to distance
(Km)(distance from this event to last event)
Return loss of this event(dB)
4.4 Distance Measurement
Measure the distance from one point to another.
Procedure:
1. Press【F1】button to active cursor function.
2. Control 【 】 【 】to move cursor A or B.
【◀】: move left 【 ▶】: move right

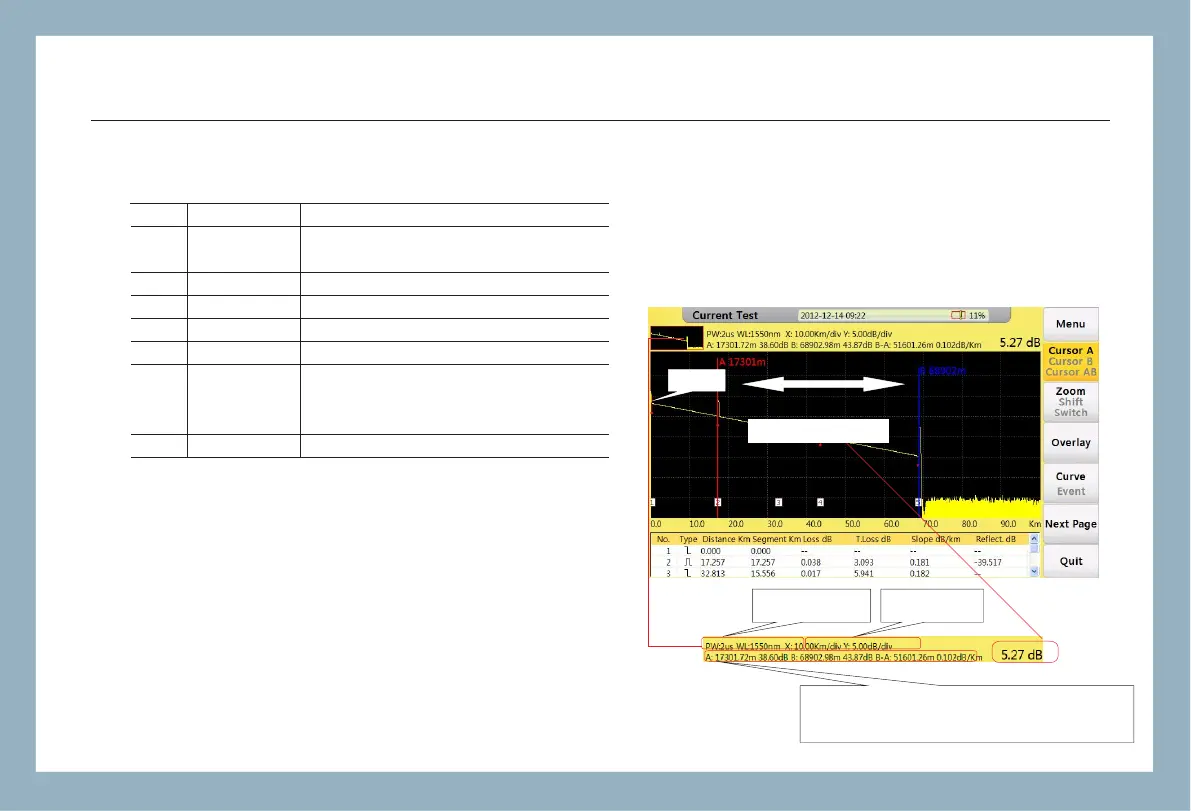

3. Get information by following the guide below:
◀ / ▶
Indicate distance of cursor A and cursor B which relative to the
reference point(start event), relative distance(km) and loss(dB)
between cursor A and cursor B.
Reference
point
Loss between Cursor A and
Cursor B
Current pulse width and
wavelength
Resolution of X
axis and Y axis
