Grandway Optical Instruments Series User Manual

Description
For user's reference to the integrated curve.
Display events and curves.
Display event information including:
"Type","distance(Km)","Loss(dB)","T.Loss(dB)","Slope
(dB/km)" and "Reflection(dB)".
Display condition information of test
including"PW"(Pulse width),
"WL"(wavelength),resolution of X axis and Y
axis(dB/div),distance,averaging and total loss from
cursor A to cursor B.
FHO5000
4
IV
II
III
I
I
II

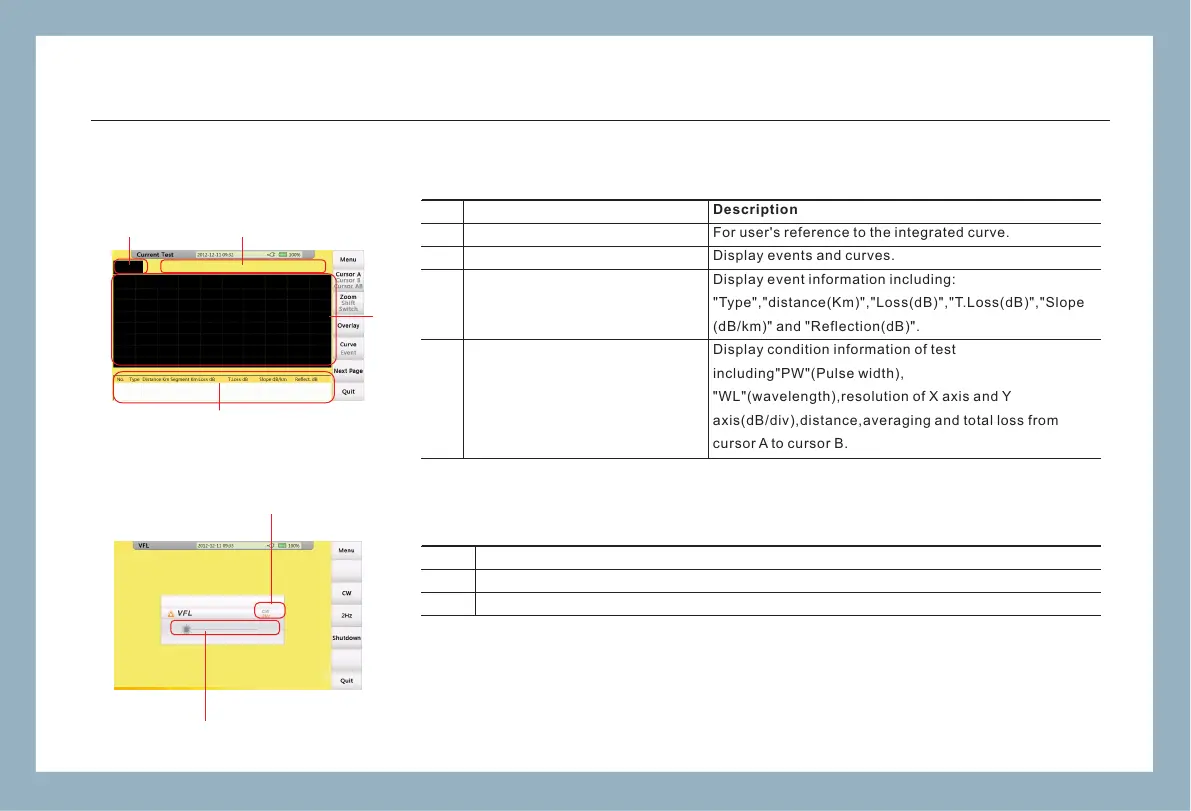

0.6 OTDR Module Interface
Num
I
II
III
IV
Function
Thumbnail of current curve
Curve display and operating area
Event list area
Test condition information area
Num
I
II
Function
VFL mode indicator
Launching state indicator
0.7 VFL Module Interface
